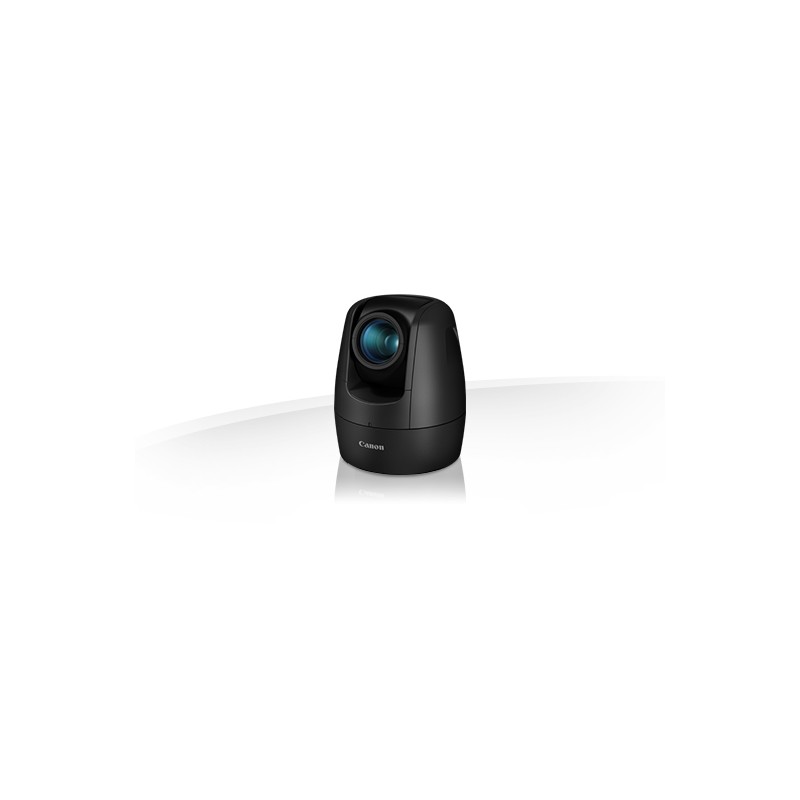

Canon VB-M50B | Canon Surveillance Cameras
  • Canon VB-M50B | Canon Surveillance Cameras
  • Canon VB-M50B | Canon Surveillance Cameras
  • Canon VB-M50B | Canon Surveillance Cameras
  • Canon VB-M50B | Canon Surveillance Cameras
This lightweight 1.3MP PTZ camera boasts a large aperture Canon telephoto lens and a highly sensitive CMOS sensor that delivers exceptional detail in low-light conditions.



Long-range colour image capture with 1.3MP resolution



With its highly sensitive 1/3” CMOS sensor and advance imaging processing, the VB-M50B large aperture PTZ surveillance camera captures footage in sharp, high-quality 1.3MP resolution. Offering exceptional low-light performance, it’s well suited to crime prevention applications in urban surveillance and monitoring important infrastructure facilities.



Superb low-light performance even with full telephoto



The large aperture f/1.8 – 2.4 Canon 5x optical zoom lens captures outstanding levels of detail even with full telephoto applied. The Aspherical and UD-distortion suppression lens design helps prevent chromatic aberrations and achieves clear, high-resolution images from any distance. Enhanced Clear IR Mode offers mono images of greater definition and detail, day or night, while Motion Adaptive Noise Reduction dynamically controls noise levels to improve performance in low-light conditions.



Powerful Clear IR View Mode



The VB-M50B’s innovative Clear IR View Mode combines an IR Band Pass Filter (IRBPF) and new image processing capabilities to capture mono images that have superb definition and detail day and night. The IRBPF gathers greater volumes of IR light to reveal hidden details in distant views, while dedicated image processing techniques correct image blur – so you enjoy consistently clear monochrome images.



Enhanced Digital Zoom gets you closer to what matters



The VB-M50B’s Enhanced Digital Zoom improves image quality and extends the camera’s zoom capabilities. Once the camera’s optical zoom limit has been reached, Enhanced Digital Zoom substitutes images within low resolution streams with cropped images from higher resolutions, extending the camera’s magnification to enable powerful long-range monitoring while maximising image quality.



Multiple browser and device support



The VB-M50B extends your surveillance options by offering viewing and configuration from a wide range of browsers and mobile devices. The camera’s new firmware architecture is compatible with all popular web browsers and mobile devices. So you can set up your camera and view live images entirely within a mobile environment.
AC input voltage 100-240 V
Cabling technology 10/100Base-T(X)
Camera shutter speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 s
Certification EN55032 B, FCC 15 B B, ICES-3/NMB-3 B, VCCI B, C-tick AS/NZS EN55032 B, CNS13438 B, KN32 B, EN55024, KN35, EN50581, IEC/UL/EN 60950-1, EN50130-4
Colour of product Black
Compatible memory cards SD,SDHC,SDXC
Connectivity technology Wired
Diameter 129 mm
Digital zoom 20 x
Ethernet interface type Fast Ethernet
Focal length range (f-f) 17.7 - 88.5 mm
Form factor dome
Frame rate 30 fps
Headphone outputs 1
Height 157 mm
Interface RJ-45
Languages support CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN,RUS,THA
Light exposure modes Aperture priority AE,Auto,Manual,Shutter priority AE
Maximum resolution 1280 x 960 pixels
Megapixel 1.3 MP
Minimum illumination 0.04 lx
Minimum RAM 2000 MB
Mobile operating systems supported Android,iOS
Mounting type Ceiling
Networking standards IEEE 802.1x
Number of users 31 user(s)
Operating relative humidity (H-H) 5 - 85 %
Operating temperature (T-T) -10 - 50 °C
Optical sensor size 1/3 "
Optical zoom 5 x
Pan range -174 - 174 °
Pan speed 300 °/sec
Password protection type User
Placement supported Indoor
Power consumption (max) 11.2 W
Power over Ethernet (PoE) Yes
Security algorithms EAP-MD5,EAP-PEAP,EAP-TLS,EAP-TTLS
Sensor type CMOS
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -30 - 60 °C
Supported graphics resolutions 320 x 180,320 x 240,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1280 x 960
Supported network protocols IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP
Tilt angle -90 - 15 °
Tilt speed 300 °/sec
Type IP
Video compression formats H.264
Voice codecs G.711
Weight 1170 g
White balance Auto,Daylight,Fluorescent,Halogen,Manual,Mercury lamp,Sodium lamp
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Premium,Windows 7 Home Premium
Power consumption (Power over Ethernet (PoE)) 9.8 W
Maximum aperture number 2.4
Number of cameras 1
Alert notification type E-mail
Number of languages 10

Download

1064C001.pdf

Canon VB-M50B Data Sheet

Download (285.18KB)

Canon VB-M50B

1.3 MP, 1/3” CMOS, PTZ, ONVIF, F 1.8-2.4, f 17.7-88.5, JPEG, H.264, 30 fps, G.711, RJ-45, 100Base-TX, 3.5 mm, SD, PoE, 129 x 157 mm, 1170 g
Out of Stock
£1,457.05
Tax excluded
Reference: 1064C001
Quantity
