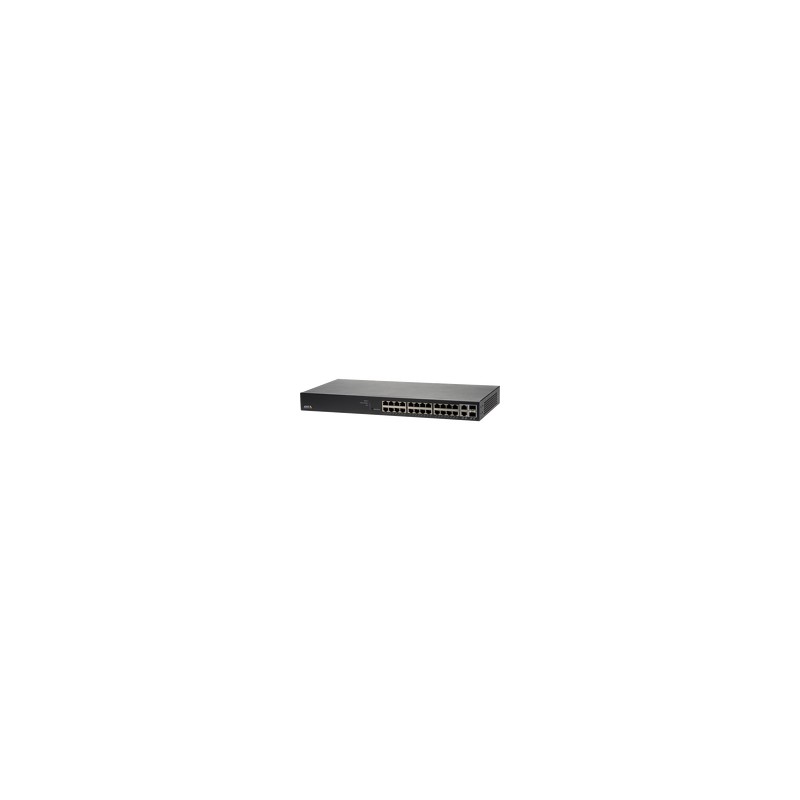

AXIS T8524 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with a unique web graphic user interface with topology for easy overview and management of all devices in the system.
Easy to install and configure
AXIS T8524 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP utility and AXIS Camera Management. AXIS T8524 also comes with an individual password and easy to use setup wizard.
AXIS T8524 comes with a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.
Perfect match for Axis surveillance solutions
AXIS T8524 PoE+ Network Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S10 Series. This to simplify further setup and installation of the surveillance systems.
Total overview with unique user interface
The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.
- Optimized for surveillance solutions
- Easy installation and configuration
- Unique web graphic user interface
Easy to install and configure
AXIS T8524 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP utility and AXIS Camera Management. AXIS T8524 also comes with an individual password and easy to use setup wizard.
AXIS T8524 comes with a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.
Perfect match for Axis surveillance solutions
AXIS T8524 PoE+ Network Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S10 Series. This to simplify further setup and installation of the surveillance systems.
Total overview with unique user interface
The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.
- Optimized for surveillance solutions
- Easy installation and configuration
- Unique web graphic user interface
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cables included | AC |
| Colour of product | Black |
| Depth | 211 mm |
| DHCP server | Y |
| Height | 44 mm |
| Housing material | Metal |
| IGMP snooping | Y |
| Jumbo frames support | Y |
| MAC address table | 8000 entries |
| Networking standards | IEEE 802.1x,IEEE 802.3at |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Password protection | Y |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Quality of Service (QoS) support | Y |
| Rack mount kit | Y |
| Rack mounting | Yes |
| Rubber feet | Y |
| Security algorithms | HTTPS,SNMP,SNMPv3 |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -10 - 70 °C |
| Surge protection | Y |
| Switch type | Managed |
| Switching capacity | 52 Gbit/s |
| Throughput | 38.7 Mpps |
| Total Power over Ethernet (PoE) budget | 370 W |
| User guide | Y |
| VLAN support | Y |
| Weight | 3200 g |
| Width | 442 mm |
| ARP inspection | Y |
| Jumbo frames | 9216 |
| Private VLAN | Y |
| Installed SFP modules quantity | 2 |
| BPDU filtering/protection | Y |
| Power over Ethernet (PoE) power per port | 30 W |
| DHCP snooping | Y |
| ICMP attack prevention | Y |
| Surge protection voltage | 6 kV |
Specific References
- EAN13
- 7331021061866
Axis T8524 PoE+
PoE+ Network Switch, 24 port switch for efficient network management
£980.88
£817.40 Ex. VAT
PoE+ Network Switch, 24 port switch for efficient network management
