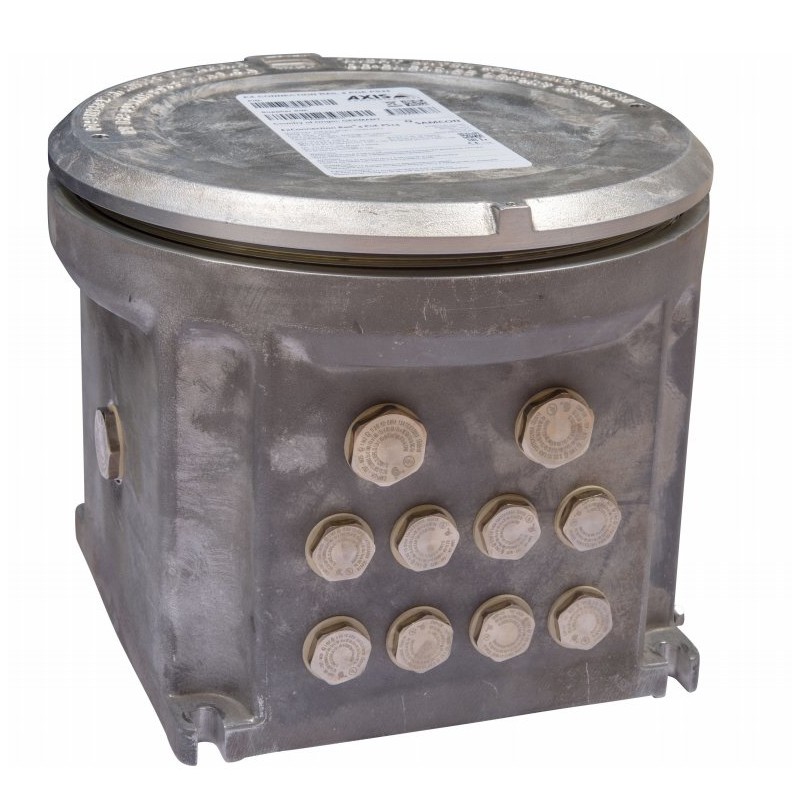

Ex Connection Rail 4-port PoE PS24
Ex Connection Rail 4-port PoE PS24 is a high-performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras in the ExCam series over long distances. The network connection can be realized via optical fibers or copper-bound Ethernet. The power supply can deliver 30 W per camera when additional heat is needed in sub-zero environments. The Ex d-rated enclosure is made from seawater resistant copper free aluminum and ready for wall mounting. Ex Connection Rail includes 2x M25x1.5 cable glands (Ex d).
Ex Connection Rail 4-port PoE PS24 is a high-performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras in the ExCam series over long distances. The network connection can be realized via optical fibers or copper-bound Ethernet. The power supply can deliver 30 W per camera when additional heat is needed in sub-zero environments. The Ex d-rated enclosure is made from seawater resistant copper free aluminum and ready for wall mounting. Ex Connection Rail includes 2x M25x1.5 cable glands (Ex d).
| 10G support | No |
| AC input voltage | 100-240 V |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Certification | ATEX, IECEx, EAC |
| Copper ethernet cabling technology | 10Base-T,100BASE-FX,100Base-TX |
| Depth | 289 mm |
| Height | 227 mm |
| Housing material | Aluminium |
| Networking standards | IEEE 802.3at |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -60 - 50 °C |
| Output voltage | 9.5 V |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -60 - 50 °C |
| Total Power over Ethernet (PoE) budget | 120 W |
| Weight | 16000 g |
| Width | 289 mm |
| Power over Ethernet (PoE) power per port | 30 W |
| Product colour | Aluminium |
Axis PS24
4x30W PoE, 289x289x227mm, 16kg, Aluminium
£8,064.04
£6,720.04 Ex. VAT
4x30W PoE, 289x289x227mm, 16kg, Aluminium
