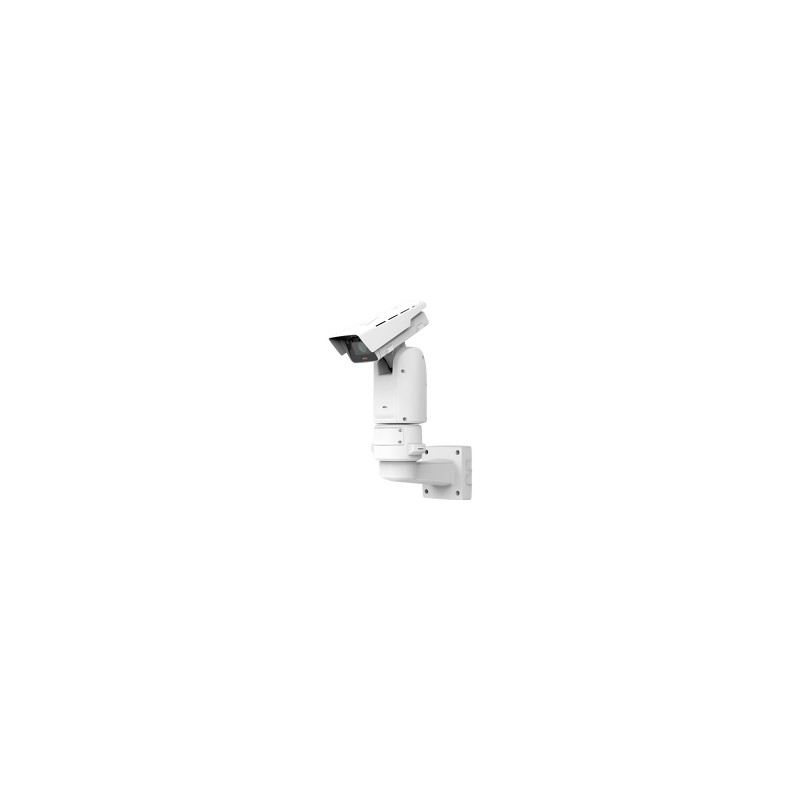

Axis Q8685-E
  • Axis Q8685-E
  • Axis Q8685-E
Swift and smooth



AXIS Q8685-E lets operators choose between high-speed and ultra-slow pan and tilt movement – from 0.05 to 120 degrees per second. So they get smooth and jerk-free panoramic viewing when they need it and can respond quickly to events. The camera can be column-mounted, on poles or walls for a 360° panoramic view and a ground-to-sky view from -90° to +45°. It is capable of operating in extreme temperatures, and it can withstand hurricane-strength winds when it’s in motion of up to 47-meter per second (106 mph), and winds over 60-meter per second (135 mph) when it’s in motion and without sunshield.



Far and wide



With 30x optical zoom and superb pan and tilt capabilities, AXIS Q8685-E delivers long-distance identification and the widest possible field of view in every direction. It has WDR-forensic capture (Wide Dynamic Range) for clarity and detail in scenes with both dark and light areas. And it has Focus recall for instant focus in areas you define. In addition, AXIS Q8685-E will also automatically zoom in on objects detected in pre-defined areas thanks to Advanced Gatekeeper.



Fast and easy



AXIS Q8685-E’s slim design and many available accessories let you install it anywhere you want. It has an SFP slot, so it supports cost-effective, long-distance fiber-optic connection. And maintenance is made simple by a remote-control washer kit and built-in, long-life wiper on the camera window. A 22 meter (72 feet) long, heavy-duty power cable is available as optional accessory. Designed for outdoor use, the cable has 3-wire, 12AWG and a jacket diameter of 10 mm (0.4 in).
AC input voltage24 V
BluetoothN
Cabling technology10/100/1000Base-T(X)
Camera shutter speed1/66500 s
Card reader integratedY
Colour of productWhite
Compatible memory cardsSD,SDHC,SDXC
Connectivity technologyWired
DC output voltage12
Depth411 mm
Digital zoom12 x
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Flash memory256 MB
Focal length range (f-f)4.3 - 129 mm
Form factorbullet
Frame rate60 fps
Height580 mm
Housing materialAluminium
HTTPS encryptionY
International Protection (IP) codeIP66
IP address filteringY
IrisY
LED typeIR
Maximum resolution1920 x 1080 pixels
Minimum illumination0.02 lx
Mounting typeFloor/Wall
Night visionY
Operating relative humidity (H-H)10 - 100 %
Operating temperature (T-T)-50 - 55 °C
Optical sensor size1/2.8 "
Optical zoom30 x
Pan range0 - 360 °
Pan speed120 °/sec
Placement supportedIndoor & outdoor
Power consumption (typical)16 W
Power source typeAC,DC
PTZ control (Pan/Tilt/Zoom)Y
Security algorithms802.1x RADIUS,HTTPS
Sensor typeCMOS
Storage temperature (T-T)-40 - 70 °C
Terminal block portY
Tilt speed60 °/sec
TypeIP security camera
Video compression formatsH.264,M-JPEG,MPEG4
Viewing angle, horizontal65.6 °
Viewing angle, vertical39 °
Weight14000 g
Wi-FiN
Width229 mm
Zoom capabilityY
Image quality adjustmentBrightness,Contrast,Sharpness
Auto focusY
Preset pointsY
Number of cameras1
Infrared (IR) cut-off filterY
Removable IR-cut filterY
Video streamingY
Tilt angle range-90 - 45 °

0862-001.pdf

Axis Q8685-E Data Sheet

Download (896.91k)

Similar products

  • Axis F1005-E
    Axis F1005-E
  • Axis M1124-E
    Axis M1124-E
  • Axis M1125-E
    Axis M1125-E
  • Axis F1004
    Axis F1004
  • Axis Q1941-E
    Axis Q1941-E

Axis Q8685-E

CMOS, 1/2.8", 0.02lx, 1920x1080px, IP66, 229x411x580mm, 14kg, White

0862-001

Out of Stock

£3,734.44
£3,112.03 Ex VAT.
