Axis P3225-LV Mk II | Axis Surveillance Cameras
  • Axis P3225-LV Mk II | Axis Surveillance Cameras
  • Axis P3225-LV Mk II | Axis Surveillance Cameras
Image usability

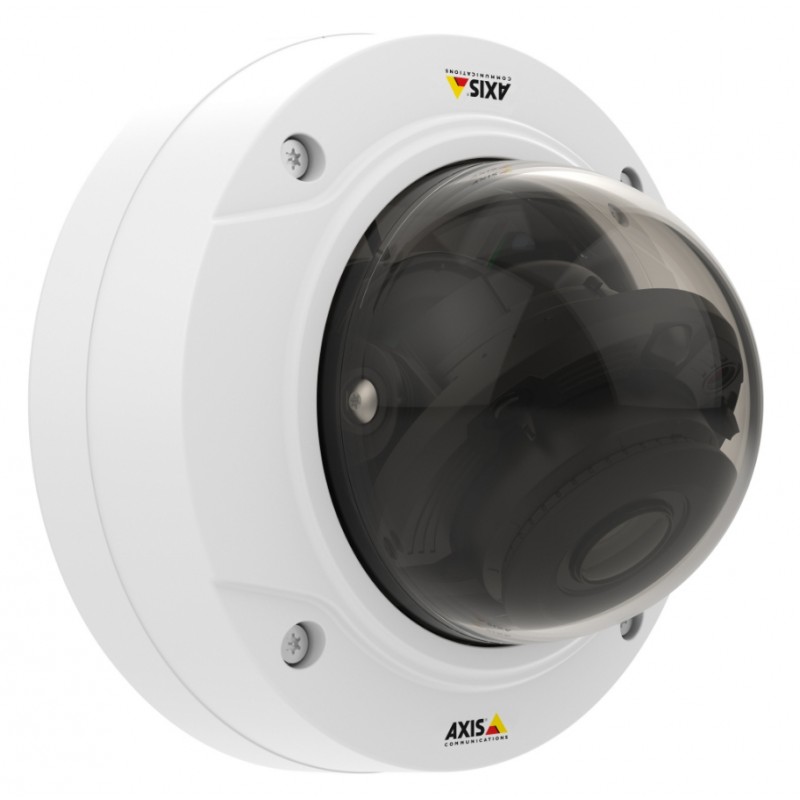

AXIS P3225-LV Mk II Network Camera is a streamlined fixed dome providing HDTV 1080p video. The camera is ideal for indoor video surveillance in retail, banking, hotels and other service industries.



Equipped with WDR – Forensic Capture to handle scenes with strong light variations, Lightfinder for exceptional light sensitivity, and P-Iris control for optimal clarity and depth of field, this versatile camera provides outstanding video quality in both strong and poor light conditions. Day and night functionality, together with Axis’ built-in IR solution, OptimizedIR, ensures an evenly illuminated view and excellent video quality even in complete darkness.



Effortless and versatile installation



AXIS P3225-LV Mk II is dust-resistant and IK08 impact-resistant, and has been designed for effortless and reliable installation. The camera features a varifocal lens and remote zoom and focus capabilities, which eliminates the need for hands-on fine tuning. AXIS P3225-LV Mk II can be mounted flush to a wall, ceiling or on junction boxes, and optional kits are available for recessed mounting or on pendants. Further, the camera supports versatile cable management with optional adapters for connecting to various conduits. The camera casing is easily repaintable in any desired color to blend into the environment.



Efficient use with Zipstream



AXIS P3225-LV Mk II provides multiple, individually configurable H.264 and Motion JPEG video streams. With a built-in memory card slot, the camera enables local storage of video. In addition, Axis’ Zipstream technology significantly lowers bandwidth and storage requirements without costly and complicated integration.
Cabling technology 10/100Base-T(X)
Camera shutter speed 1 - 1/66500 s
Colour of product White
Compatible memory cards MicroSD (TransFlash),MicroSDHC,MicroSDXC
Connectivity technology Wired
Diameter 149 mm
Ethernet interface type Fast Ethernet
Ethernet LAN (RJ-45) ports 1
Flash memory 256 MB
Form factor dome
Frame rate 60 fps
Height 101 mm
Infra-red wavelength 850 nm
Interface RJ-45
Internal memory 512 MB
International Protection (IP) code IP52
Languages support CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
LED type IR
Maximum resolution 1920 x 1080 pixels
Networking standards IEEE 802.3af,IEEE 802.3at
Night vision distance 30 m
Operating relative humidity (H-H) 10 - 85 %
Operating temperature (T-T) 0 - 50 °C
Optical sensor size 1/3 "
Pan range -180 - 180 °
Placement supported Indoor
Power consumption (max) 10.2 W
Power consumption (typical) 6.1 W
Power over Ethernet (PoE) Yes
Protection features Shock resistant,Vibration proof
Rotation 190 °
Security algorithms HTTPS,SNMP,SSL/TLS
Sensor type CMOS
Storage temperature (T-T) -40 - 65 °C
Supported graphics resolutions 160 x 90,640 x 360,960 x 540,1024 x 576 (WSVGA),1280 x 720 (HD 720),1600 x 900,1920 x 1080 (HD 1080)
Supported network protocols IPv4/v6, HTTP , HTTPS , SSL/TLS , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP , SNMP v1/v2c/v3(MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SFTP , TCP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH
Supported video modes 360p,576p,960p,1080p
Tilt angle -5 - 75 °
Type IP
Video compression formats AVC,H.264,M-JPEG,MPEG4
Viewing angle, horizontal 58 °
Viewing angle, vertical 30 °
Weight 550 g
Image quality adjustment Brightness,Colour depth,Contrast
Maximum aperture number 1.4
Number of cameras 1
Alert notification type E-mail
Number of languages 11

Specific References

EAN13
7331021055636

Download

0954-001.pdf

Axis P3225-LV Mk II Data Sheet

Download (395.21KB)

Axis P3225-LV Mk II

Progressive scan RGB CMOS 1/3”, HDTV 1080p, 1/66500s - 1s, 512 MB RAM, 256 MB Flash, 0 - 50°C, ø 149 x 101 mm, 550 g
Out of Stock
£489.55
Tax excluded
Reference: 0954-001
Quantity
