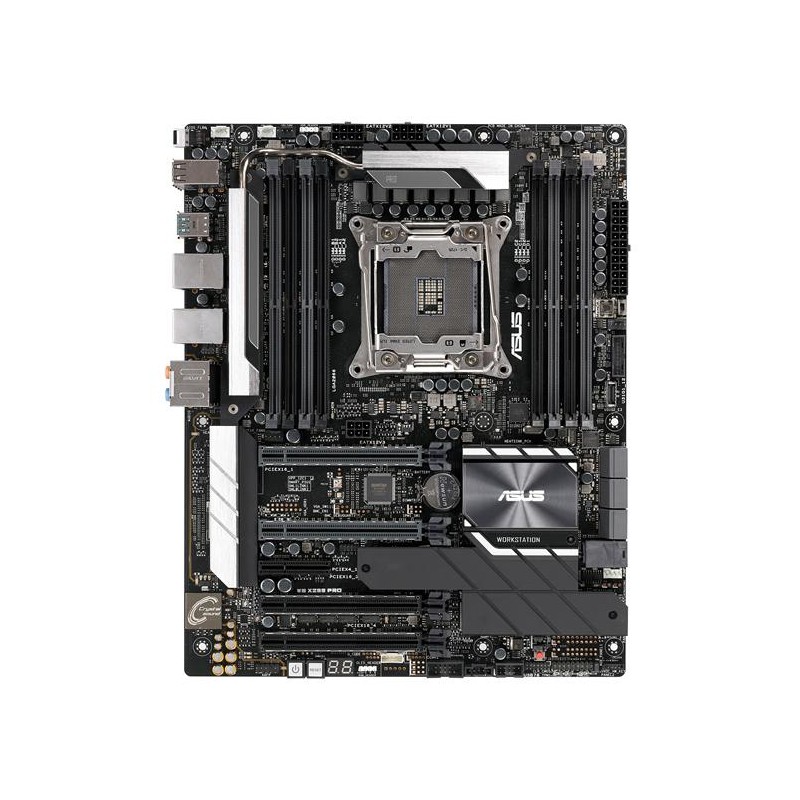

ASUS WS X299 PRO Intel X299 LGA 2066 (Socket R4) ATX server/workstation motherboard
  • ASUS WS X299 PRO Intel X299 LGA 2066 (Socket R4) ATX server/workstation motherboard
  • ASUS WS X299 PRO Intel X299 LGA 2066 (Socket R4) ATX server/workstation motherboard
  • ASUS WS X299 PRO Intel X299 LGA 2066 (Socket R4) ATX server/workstation motherboard
  • ASUS WS X299 PRO Intel X299 LGA 2066 (Socket R4) ATX server/workstation motherboard
  • ASUS WS X299 PRO Intel X299 LGA 2066 (Socket R4) ATX server/workstation motherboard
  • ASUS WS X299 PRO Intel X299 LGA 2066 (Socket R4) ATX server/workstation motherboard
  • ASUS WS X299 PRO Intel X299 LGA 2066 (Socket R4) ATX server/workstation motherboard
5-Way Optimization

One-click overclocking and cooling


ASUS 5-Way Optimization makes your workstation smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.



- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.

- Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.

- Stress test function helps optimize and overclock for CPU- or memory-centric workloads.



Make your memory go faster

With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133MHz and beyond.



OC Design – ASUS PRO Clock II Technology

WS X299 PRO includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel® Core™ X-series processors.



Multi-GPU support

With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, WS X299 PRO enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond.



Flexible Cooling Controls

WS X299 PRO features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.



Ultra-efficient VRM Heatsink

Designed for the powerful Intel Core X-series processor with up to 18 cores, WS X299 PRO features a capable thermal design to ensure maximum performance with no CPU throttling. Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS X299 PRO is always ready to handle any task, no matter how demanding.



Dual Onboard M.2 & M.2 heatsink

Perfected cooling for unleashed performance


WS X299 PRO features dual onboard M.2 slots, each operating at X4 PCI Express 3.0 to provide an abundant 32Gbps of bandwidth. Both slots sit below the X299 chipset and are covered by a heatsink that reduces drive temps by as much as 20°C, ensuring peak performance under all scenarios.



VROC

Upgrade your RAID


Unleash the WS X299 PRO Virtual RAID on CPU (VROC) with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives — for a total bandwidth of up to 128Gbps. PCH-based RAID arrays are bottlenecked by the 32Gbps limit of the DMI bus. VROC obliterates that limit by allowing you to utilise CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds.



USB 3.1 Gen 2 front-panel connector

Future-proof connectivity


WS X299 PRO's front panel USB 3.1 connector is ready for next-gen PC cases and devices.



USB 3.1 Gen 2 Type-A & Type-C

Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard


With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.



Dual Intel® server-class Gigabit LAN

For more reliable networking, WS X299 PRO features the latest server-class dual Intel® Gigabit LAN ensuring lower CPU utilization and temperatures outstanding performance as well as better support for diverse operating systems. The dual Ethernet ports also support teaming which combines the network links to provide higher throughput or redundancy in case of failure.



Intel® Core™ X-series processors for LGA 2066 socket

Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.

Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.



Intel® X299 Chipset

The Intel X299 chipset supports LGA 2066-socket Intel Core X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
ATX Power connector (24-pin) Y
Clear CMOS button Y
Component for Workstation
CPU fan connector Y
Depth 244 mm
Discrete graphics support Y
Ethernet interface type Gigabit Ethernet
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 2
Hard drive interface Serial ATA III
LAN controller Intel I210-AT
Maximum internal memory 128 GB
Motherboard chipset Intel X299
Motherboard form factor ATX
Non-ECC Y
Number of COM connectors 1
Number of DIMM slots 8
Number of SATA III connectors 6
Parallel processing technology support 3-Way CrossFireX,3-Way SLI
PCI Express x4 (Gen 3.x) slots 1
Processor manufacturer Intel
Processor number of cores supported 4,6
Processor socket LGA 2066 (Socket R4)
Supported DIMM module capacities 16GB
Supported memory clock speeds 2133,2400,2600,3600,4133 MHz
Supported memory types DDR4-SDRAM
TPM connector Y
USB 2.0 connectors 1
USB 2.0 ports quantity 4
Width 305 mm
USB 3.0 (3.1 Gen 1) Type-A ports quantity 4
USB 3.0 (3.1 Gen 1) connectors 1
USB 3.1 (3.1 Gen 2) Type-A ports quantity 1
USB 3.1 (3.1 Gen 2) Type-C ports quantity 1
USB 3.1 (3.1 Gen 2) connectors 1
Intel® Optane™ Memory Ready Y

Specific References

EAN13
4712900810271

ASUS WS X299 PRO

Intel X299, 2x Intel I210-AT, USB 3.1, Gigabit Ethernet, SATA 3, TPM, ATX
Out of Stock
£354.52
Tax excluded
Reference: 90SW0090-M0EAY0
