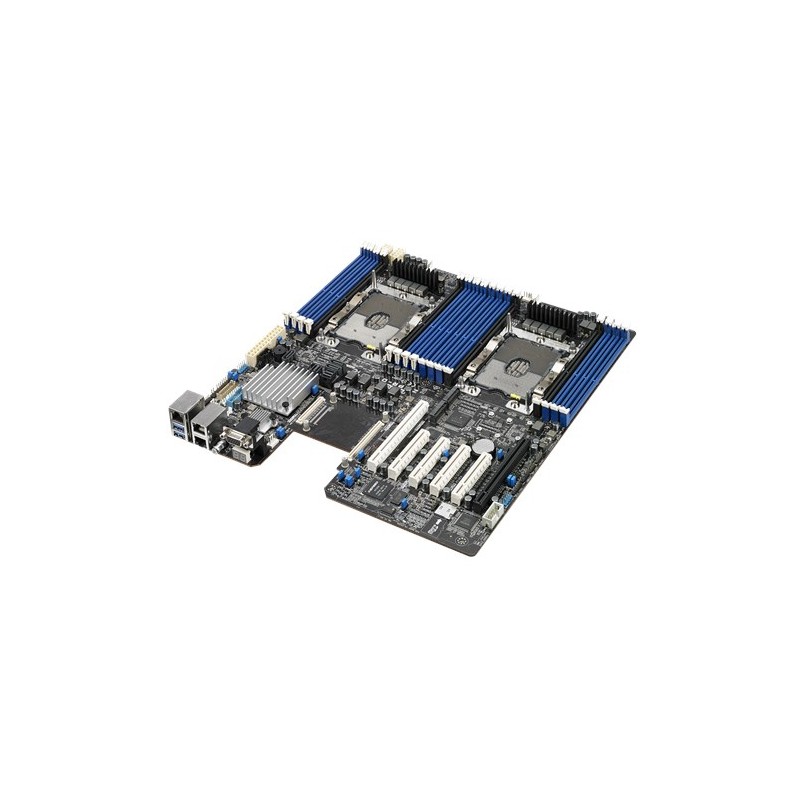

ASUS Z11PR-D16 Intel C621 EEB server/workstation motherboard
  • ASUS Z11PR-D16 Intel C621 EEB server/workstation motherboard
  • ASUS Z11PR-D16 Intel C621 EEB server/workstation motherboard
  • ASUS Z11PR-D16 Intel C621 EEB server/workstation motherboard
  • ASUS Z11PR-D16 Intel C621 EEB server/workstation motherboard
Scalable server motherboard with industry-leading 2TB memory capacity

- Industry-leading 2TB memory capacity

- Dual M.2 SSD slots

- Intel® Xeon® Scalable Platform design

- Comprehensive IT infrastructure management solution - ASUS Control Center (ACC) and ASMB9-iKVM

- Rack-optimized thermal performance



Industry-leading memory capability

With 16 RAM slots that support up to 2TB of fast, DDR4-2666MHz 3DS ECC RDIMMs or LRDIMMs, the Z11PR-D16 server motherboard delivers industry-leading memory capability for your business.



Dual M.2 SSD slots

Z11PR-D16 features dual M.2 SSD slots which support two transmission interfaces: SATA and PCI-E Gen3 x4. Both interfaces could be set in RAID mode. In particular, in the mode of PCI-E RAID, it supports Intel® VROC technology. The disk array system with Dual M.2 can be used as the main system disk, and also can be used as memory caching to enhance the data access speed.



Intel® Xeon® Scalable Platform design

Z11PR-D16 is built on the Intel® Xeon® Scalable Platform to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average system-level performance compared to previous-generation processors. The Intel® Xeon® Scalable platform also delivers better virtualization performance, enabling 4.2X more virtual machines (VMs) per system.



Comprehensive IT infrastructure management solution

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching.



The latest ASMB9-iKVM module enables remote BIOS updates, fans control, standalone KVM, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.



Rack-optimized thermal performance

With the CPU and memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, Z11PR-D16 is optimized for rack placement.



Flexibility to grow with your business

Z11PR-D16 comes with a wide range of ports to provide a flexible and cost-effective computing environment with the ability to grow together with your business. Z11PR-D16 features:

- 2 x mini SAS HD connectors

- 3 x 7-pin SATA ports

- 11 x SATA 6Gb/s storage device support (maximum)

- 1 x VGA

- 2 x USB 3.0

- 2 x 1GbE LAN

- 1 x Mgmt LAN

- 1 x Q-Code/port 80 LED
ATX Power connector (24-pin) Y
Chassis intrusion connector Y
Component for Server
Depth 330 mm
Ethernet interface type Gigabit Ethernet
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 3
Hard drive interface Serial ATA III
LAN controller Intel I350-AM2
Maximum internal memory 512 GB
Maximum LRDIMM memory 1024 GB
Maximum RDIMM memory 512 GB
Motherboard chipset Intel C621
Motherboard form factor SSI EEB
Number of DIMM slots 16
Number of processors supported 2
On-board graphics adapter memory 64 MB
On-board graphics adapter model Aspeed AST2500
Operating temperature (T-T) 10 - 35 °C
Package weight 2425 g
Parallel processing technology support Not supported
PCI Express x16 (Gen 3.x) slots 2
PCI Express x8 (Gen 3.x) slots 4
Processor manufacturer Intel
RAID levels 0,1,5,10
RAID support Y
Serial port headers 1
Storage relative humidity (H-H) 20 - 90 %
Storage temperature (T-T) -40 - 70 °C
Supported DIMM module capacities 4GB,8GB,16GB,32GB,64GB
Supported LRDIMM clock speeds 2400,2666 MHz
Supported LRDIMM module capacity 32GB,64GB
Supported memory clock speeds 2400,2666 MHz
Supported memory types DDR4-SDRAM
Supported RDIMM clock speeds 2400,2666 MHz
Supported RDIMM module capacity 4GB,8GB,16GB,32GB
System bus rate 10.4 GT/s
TPM connector Y
USB 2.0 connectors 2
VGA (D-Sub) ports quantity 1
Weight 1400 g
Width 305 mm
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2

Specific References

EAN13
4712900601336

ASUS Z11PR-D16

Z11PR-D16, LGA 3647, 2 x CPU, 16 x DIMM, DDR4 512GB max, EEB
Out of Stock
£534.01
Tax excluded
Reference: 90SB0670-M0UAY0
