APC Symmetra PX
  • APC Symmetra PX
  • APC Symmetra PX
  • APC Symmetra PX

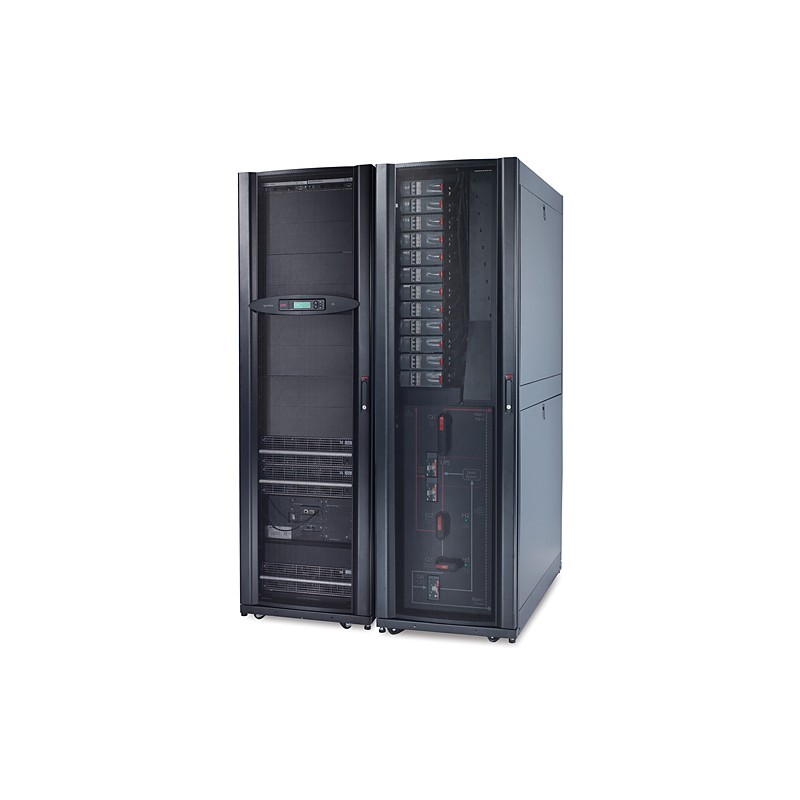

APC Symmetra PX 32kW Scalable to 96kW 400V with Modular Power Distribution



A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your Data Center power requirements. With hot-scalable power, distribution and run-time, this UPS scales with your Data Center up to 96kW/96kVA. Suitable for small to medium Data Centers or individual zones of large Data Centers.





StruxureWare Central compatible

Enables centralized management via StruxureWare Central.



Modular design

Increases adaptability with an open architecture configurable to any IT environment.



Modular design

Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.



LCD display

Alpha-Numeric Display which displays system parameters and alarms.



SmartSlot

Customize UPS capabilities with management cards.



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.



Configurable for N+1 internal redundancy

Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Battery modules connected in parallel

Delivers higher availability through redundant batteries.



Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.



Audible alarms

Provides notification of changing utility power and UPS conditions



User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Scalable runtime

Allows additional run time to be quickly added as needed.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Scalable power capacity

Reduces UPS over-sizing costs today by allowing quick upgrades later.



Programmable frequency

Ensures compatibility with different input frequencies.



Redundant Intelligence Modules

Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.



Power Modules connected in parallel

Enhances availability by allowing immediate, seamless recovery from isolated module failures.



Modular design

Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.



Manageable external batteries

Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.



Network manageable

Provides remote management of the UPS over the network.



Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



Modular design

Modular design provides scalable solutions to add cooling as demand increases.



Battery replacement without tools

Allows quick, easy battery replacement.



Front-access servicing

Simplifies installation and maintenance while minimizing space requirements.



LED status indicators

Quickly understand unit and power status with visual indicators.
Battery recharge time3.50 h
Battery typeVRLA
CertificationEN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111
Colour of productBlack
Depth1070 mm
DisplayLCD
Efficiency95 %
Emergency Power Off (EPO)Y
EMI/RFI noise filteringY
Height1991 mm
Hot-swap batteryY
Input operation voltage (max)477 V
Input operation voltage (min)340 V
Interface2 x SmartSlot
Maximum current59 A
Noise level61 dB
Nominal input voltage400 V
Nominal output voltage400 V
Non-operating altitude0 - 15000 m
Number of phases3
Operating altitude0 - 999.9 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Output operation voltage (max)415 V
Output operation voltage (min)380 V
Output power96000 W
Output voltage note380: 400 / 415 V 3 Ph
Output voltage THD2 %
Overload protectionY
Package dimensions (WxDxH)1696 x 1210 x 2140 mm
Package weight1963000 g
Power protection featuresOver current,Overload
Power supply input frequency50/60 Hz
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-15 - 40 °C
Weight1814000 g
Width1200 mm
Output power capacity96000 VA
Audible alarm(s)Y

SY32K96H-PD.pdf

APC Symmetra PX Data Sheet

Download (313.63k)

Similar products

  • APC Symmetra LX 4kVA
    APC Symmetra LX 4kVA
  • APC MGE Galaxy 300
    APC MGE Galaxy 300
  • APC MGE Galaxy 5500
    APC MGE Galaxy 5500
  • APC Back-UPS Pro
    APC Back-UPS Pro
  • APC Back-UPS Pro
    APC Back-UPS Pro

APC Symmetra PX

32 - 96 kW Output, 400V In, 3-phase, Scalable, EPO, 2 x SmartSlot, 61.00 dBA, 42U, Black

SY32K96H-PD

Out of Stock

£45,070.88
£37,559.06 Ex VAT.
