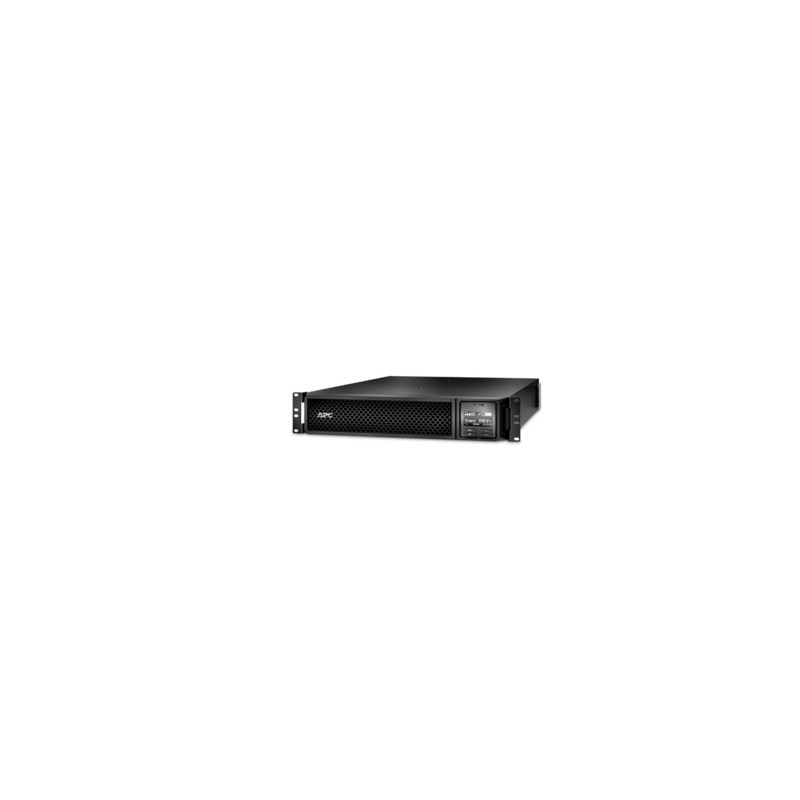

APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
  • APC Smart-UPS On-Line
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.



High density, double-conversion on-line power protection with scalable runtime



Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack Mounting support rails, USB cable, Warranty card
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity10 AC outlet(s)
Auto-restartYes
Automatic battery testYes
Battery capacity505 VAh
Battery life (max)5 year(s)
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Battery voltage96 V
Cable length2.44 m
Cables includedUSB cable
CertificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Cold startYes
Colour of productBlack
Crest factor3:1
Depth635 mm
DisplayLCD
Efficiency93.5 %
Emergency Power Off (EPO)Yes
Energy Star certifiedYes
Form factorRackmount/Tower
Height85 mm
Hot-swap batteryYes
Input connectionsBS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Input operation voltage (max)275 V
Input operation voltage (min)100 V
International Protection (IP) codeIP20
LED indicatorsYes
Noise level55 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Number of batteries supported1
Number of output IEC jumpers2
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Output frequency50/60 Hz
Output frequency regulation50/60 Hz
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power2700 W
Package depth871 mm
Package height246 mm
Package weight39920 g
Package width599 mm
Power supply input frequency40 - 70 Hz
Quantity per pallet6 pc(s)
Quick installation guideYes
Rack mount kitYes
Rack mountingYes
Replacement battery cartridgeAPCRBC152
RoHS complianceYes
Serial interface typeRJ-45
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Surge energy rating340 J
Surge protectionYes
Typical backup time at full load4 min
Typical backup time at half load11.8 min
USB portYes
WaveformSine
Web-based managementYes
Weight31300 g
Width432 mm
Output power capacity3000 VA
UPS topologyDouble-conversion (Online)
Audible alarm(s)Yes
Software CDYes
Serial interfaceYes
SmartSlotYes
BracketYes

SRT3000RMXLI.pdf

APC Smart-UPS On-Line Data Sheet

Download (2.42M)

You might also like

  • APC AR3150
    APC AR3150
  • APC SRT96RMBP
    APC SRT96RMBP

Similar products

  • APC Symmetra LX 4kVA
    APC Symmetra LX 4kVA
  • APC MGE Galaxy 300
    APC MGE Galaxy 300
  • APC MGE Galaxy 5500
    APC MGE Galaxy 5500
  • APC Back-UPS Pro
    APC Back-UPS Pro
  • APC Back-UPS Pro
    APC Back-UPS Pro

APC Smart-UPS On-Line

Smart-UPS, Double Conversion (Online), 3000VA, 2.7 KW, 230V, RJ-45 Serial, Smart-Slot, USB

SRT3000RMXLI

In Stock

£3,487.36
£2,906.14 Ex VAT.
