A versatile UPS developed for unstable power conditions worldwide
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| AC outlet types | C13 coupler,C19 coupler |
| Auto-restart | Yes |
| Automatic battery test | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Battery capacity | 505 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery replacement alarms | Audible,LED |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cable length | 2.44 m |
| Certification | CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA |
| Cold start | Yes |
| Colour of product | Black |
| Crest factor | 3:1 |
| Depth | 635 mm |
| Display | LCD |
| Efficiency | 92 % |
| Emergency Power Off (EPO) | Yes |
| Form factor | Rackmount |
| Height | 85 mm |
| Hot-swap battery | Yes |
| Input connections | IEC-60320 C20, Schuko CEE 7/EU1-16P, BS1363A |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 100 V |
| International Protection (IP) code | IP20 |
| Noise level | 55 dB |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 2700 W |
| Output voltage | 230 V |
| Output voltage THD | 2 % |
| Package depth | 871 mm |
| Package height | 246 mm |
| Package weight | 39290 g |
| Package width | 599 mm |
| Power protection features | Overload |
| Power supply input frequency | 40 - 70 Hz |
| Quantity per pallet | 6 pc(s) |
| Quick installation guide | Yes |
| Rack mounting | Yes |
| Replacement battery cartridge | APCRBC152 |
| RoHS compliance | Yes |
| Serial interface type | RJ-45 |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
| Surge energy rating | 340 J |
| Surge protection | Yes |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 11.8 min |
| USB port | Yes |
| Waveform | Sine |
| Weight | 31300 g |
| Width | 432 mm |
| Output power capacity | 3000 VA |
| UPS topology | Double-conversion (Online) |
| Audible alarm(s) | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |

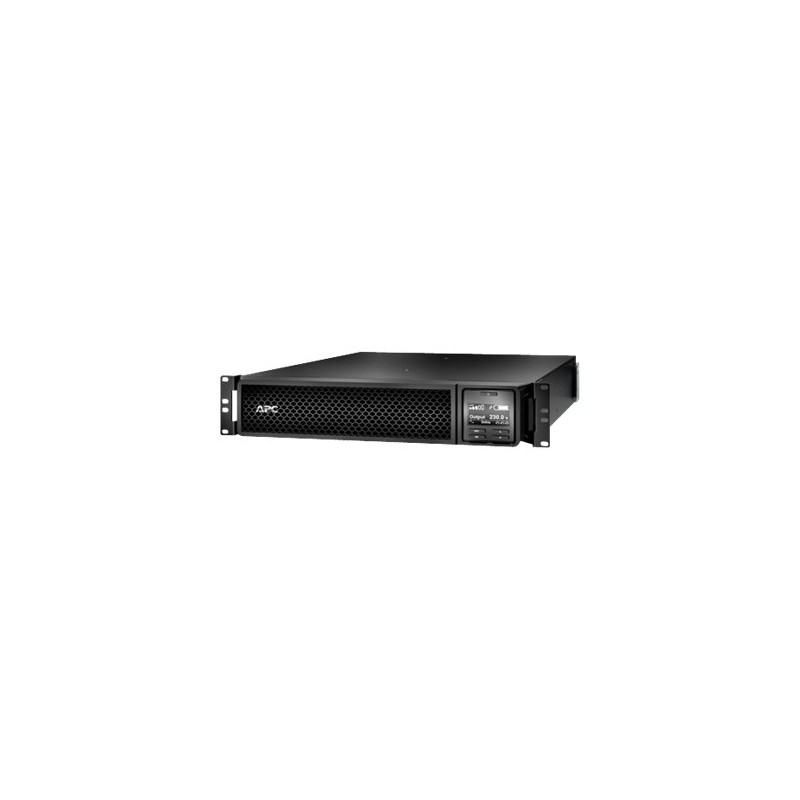

APC Smart-UPS On-Line SRT
3000 VA, 2700 W, 230 V, RJ-45, USB, SmartSlot, 2U, 432x635x85 mm, 31.3 kg
£3,408.36
Tax excluded
3000 VA, 2700 W, 230 V, RJ-45, USB, SmartSlot, 2U, 432x635x85 mm, 31.3 kg
