High density, double-conversion on-line power protection with scalable runtime.
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Auto-restart | Yes |
| Automatic battery test | Yes |
| Battery capacity | 505 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 96 V |
| Cable length | 2.44 m |
| Cables included | USB cable |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Cold start | Yes |
| Colour of product | Black |
| Crest factor | 3:1 |
| Depth | 635 mm |
| Display | LCD |
| Efficiency | 93.5 % |
| Emergency Power Off (EPO) | Yes |
| Energy Star certified | Yes |
| Form factor | Rackmount/Tower |
| Height | 85 mm |
| Hot-swap battery | Yes |
| Input connections | BS1363A, IEC-320 C20, Schuko CEE 7 / EU1-16P |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 100 V |
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Noise level | 55 dB |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 15000 m |
| Number of batteries supported | 1 |
| Number of output IEC jumpers | 2 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 2700 W |
| Package depth | 871 mm |
| Package height | 246 mm |
| Package weight | 39920 g |
| Package width | 599 mm |
| Power supply input frequency | 40/70 Hz |
| Quantity per pallet | 6 pc(s) |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Rack mounting | Yes |
| Replacement battery cartridge | APCRBC152 |
| RoHS compliance | Yes |
| Serial interface type | RJ-45 |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
| Surge energy rating | 340 J |
| Surge protection | Yes |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 11.8 min |
| USB port | Yes |
| Warranty card | Yes |
| Waveform | Sine |
| Web-based management | Yes |
| Weight | 31300 g |
| Width | 432 mm |
| Output power capacity | 3000 VA |
| UPS topology | Double-conversion (Online) |
| Audible alarm(s) | Yes |
| Software CD | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |
| Bracket | Yes |
Specific References
- EAN13
- 0731304320074

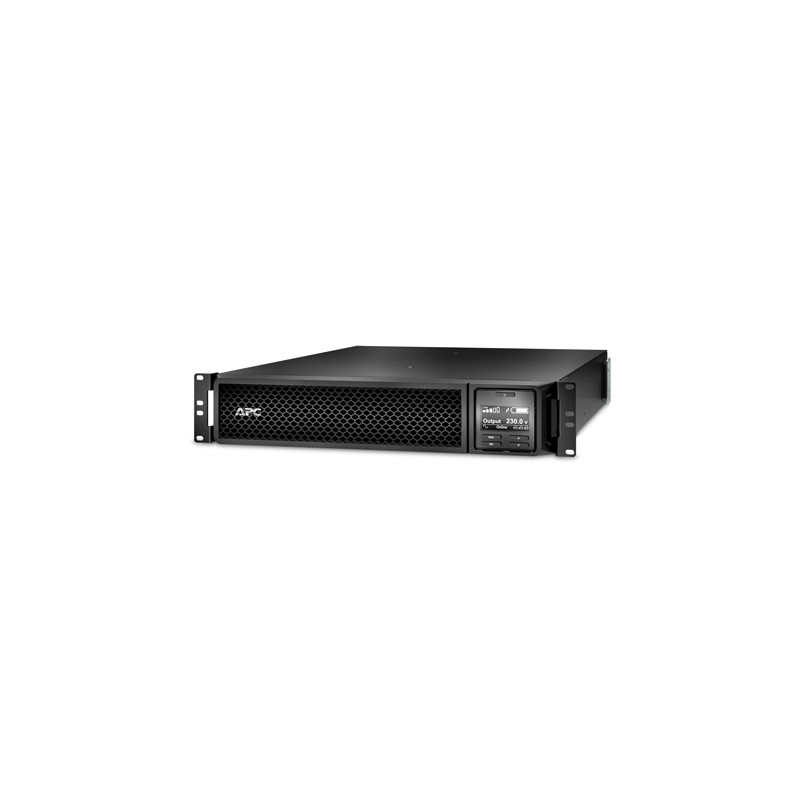

APC Smart-UPS On-Line
Smart-UPS, SRT, 3000VA, RM 208/230V, IEC
£3,766.17
£3,138.48 Ex. VAT
Smart-UPS, SRT, 3000VA, RM 208/230V, IEC
