APC Maintenance Bypass Panels , Input: 230V , Output: 230V , Output Connections: Hard Wire 3-wire (H N + G),IEC Jumpers
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
| Cable length | 1 m |
| Certification | VDE, REACH |
| Colour of product | Black |
| Dimensions (WxDxH) | 432 x 76 x 89 mm |
| Input frequency | 50/60 Hz |
| Load capacity | 3000 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 4500 m |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature range (T-T) | 0 - 40 °C |
| Package dimensions (WxDxH) | 463 x 295 x 151 mm |
| PDU types | Basic |
| Source data-sheet | Icecat.biz |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature range (T-T) | -15 - 45 °C |
| Weight | 2270 g |
Specific References
- EAN13
- 0731304283225

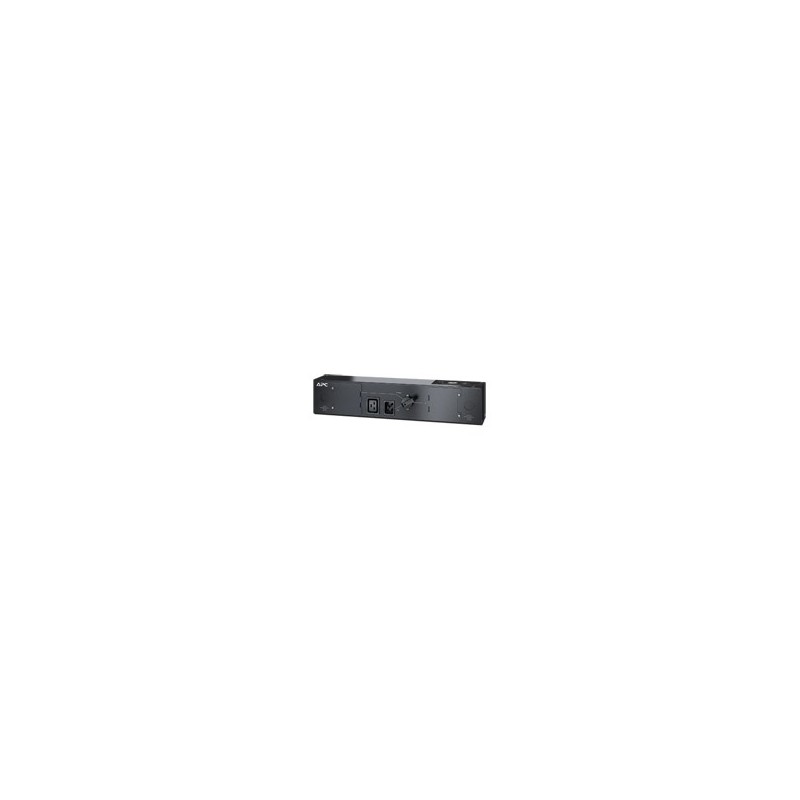

APC Service Bypass PDU, 230V 16AMP Hardwire
230V, 16A, 3000 VA, IEC Jumpers, 3-wire, 1m Cord, 2.27kg, Black
£390.41
£325.34 Ex. VAT
230V, 16A, 3000 VA, IEC Jumpers, 3-wire, 1m Cord, 2.27kg, Black
