APC  SBPAR10K20H-WP power distribution unit PDU
  • APC  SBPAR10K20H-WP power distribution unit PDU
  • APC  SBPAR10K20H-WP power distribution unit PDU
Availability

Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.



Scalable runtime

Allows additional run time to be quickly added as needed.



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.



Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.



Battery modules connected in parallel

Delivers higher availability through redundant batteries.



Serviceability

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)



Battery replacement without tools

Allows quick, easy battery replacement.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Shippable with modules installed

Enables pre-installation UPS staging and testing and faster installation.



Modular design

Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Certification EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,VFI-SS-111
Colour of product Black
Dimensions (WxDxH) 560 x 216 x 1174 mm
Input frequency 50 Hz
Maximum input current per phase 182.4 A
Operating relative humidity range 0 - 95 %
Operating temperature range (T-T) 0 - 40 °C
Output connections 1x Hard Wire 5-wire (3PH + N + G)
Package dimensions (WxDxH) 704 x 335 x 1298 mm
Package weight 22730 g
Source data-sheet Icecat.biz
Storage relative humidity range 0 - 95 %
Storage temperature range (T-T) -15 - 45 °C

Specific References

EAN13
0731304275657

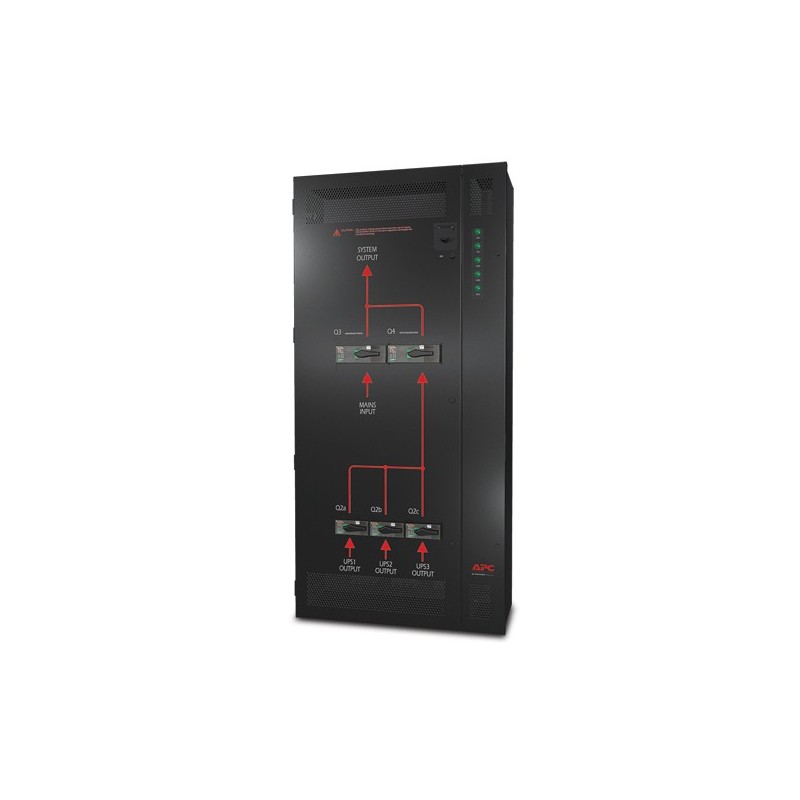

APC SBPAR10K20H-WP

Parallel Maintenance Bypass Panel, up to 3 units 10-20kVA 400V Wallmount
Out of Stock
£1,497.04
Tax excluded
Reference: SBPAR10K20H-WP
Quantity
