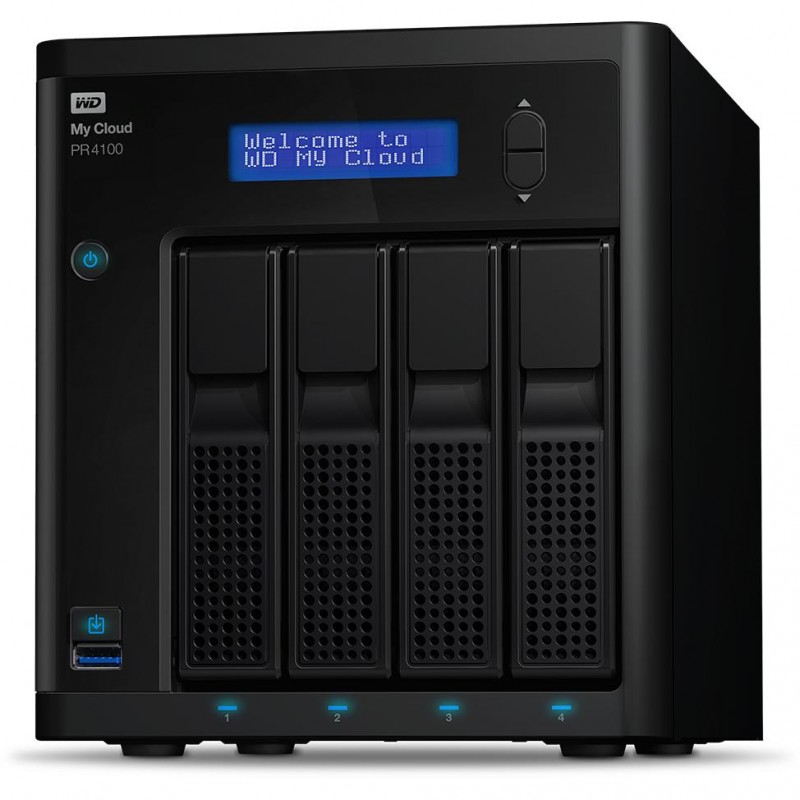

Western Digital PR4100
  • Western Digital PR4100
  • Western Digital PR4100
The core of team collaboration

With space to keep virtually everything, the My Cloud Pro Series offers your creative team the network storage to edit, save and share production files from anywhere with an internet connection. Compatible with both Mac and PC, you're able to protect your content regardless of OS. And with all photos, videos and files organized in one place, your team has all it needs to streamline its creative workflow.



Backup for Mac and PC



Save content from a PC automatically with WD SmartWare Pro, or easily back up a Mac through Apple Time Machine.



Access Anywhere



Access, edit and share HD media with clients and colleagues using MyCloud.com and the My Cloud mobile app anywhere you have an internet connection.



Stream Anything



Built-in hardware transcoding prepares media for streaming in the right format and quality, and with the Plex Media Server installed on your NAS, you can beautifully stream to any device with an internet connection.



Storage to Organize Everything



With high capacity network storage, you get the space you need to keep all your shots organized in one spot. Combined with a quad core Intel Pentium N3710 processor and 4GB of RAM, you can seamlessly stream HD videos or share content with multiple users. Keep your production files, .RAW photos, or final mixes in a single place and ready for access with the My Cloud Pro Series.



One-touch copying



Using an integrated copy button, the My Cloud Pro Series can back up and preserve everything in a single move. The My Cloud Pro Series is also exFAT compatible, so you can plug in a camera or an external hard drive like the My Passport Wireless Pro device and automatically offload everything as soon as you're back from a shoot.



Data protection your way



Multiple RAID options help you protect your digital library however you need, while password protection and 256-bit AES volume encryption helps safeguard your files from prying eyes. Along with two power ports in case of a power supply failure, the My Cloud Pro Series helps keep your data safe.



Centralize, organize and beautifully stream with Plex



With built-in hardware transcoding and the downloadable Plex Media Server, your team can smoothly stream HD media wherever they have an internet connection. Hardware transcoding prepares media for streaming in the right format and quality, and with the Plex app installed on your NAS, you can beautifully stream to any device.
Backup functionY
Chassis typeDesktop
Colour of productBlack
CPU configuration (max)1
Depth232 mm
Device classHome & Home Office
Embedded options availableY
Enhanced Intel SpeedStep TechnologyY
Ethernet LANY
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
Execute Disable BitY
Height192 mm
Hot-swap drive baysY
Idle StatesY
Installed storage drive typeHDD
Intel 64Y
Intel Enhanced Halt StateY
Intel Rapid Storage TechnologyN
Intel Smart Connect TechnologyN
Intel Stable Image Platform Program (SIPP)N
Intel Trusted Execution TechnologyN
Intel Virtualization Technology for Directed I/O (VT-d)N
Intel VT-x with Extended Page Tables (EPT)Y
L2 cache2 MB
Maximum number of PCI Express lanes4
Maximum supported storage capacity40 TB
Number of execution units16
Number of storage drives installed4
Number of storage drives supported4
On-board graphics adapter modelIntel HD Graphics 405
On/off switchY
Operating temperature (T-T)0 - 35 °C
Package typebox
PCI Express configurations1x2+2x1,1x4,2x2,4x1
PCI Express slots version2.0
Processor boost frequency2.56 GHz
Processor cache2 MB
Processor codeSSSR2KL
Processor codenameBraswell
Processor cores4
Processor familyIntel Pentium
Processor frequency1.6 GHz
Processor lithography14 nm
Processor modelN3710
Processor operating modes64-bit
Processor socketBGA 1170
Processor threads4
Quick installation guideY
Quick start guideY
SteppingD1
Storage drive capacity10000 GB
Storage drive size3.5 "
Storage drives installedY
Storage temperature (T-T)-40 - 70 °C
Supported storage drive typesHDD
System bus rate2.5 GT/s
Thermal Design Power (TDP)6 W
Thermal Monitoring TechnologiesY
Tjunction90 °C
Total installed storage capacity40000 GB
TypeNAS
UARTY
USB portY
Wi-FiN
Width170 mm
Processor cache typeL2
Maximum internal memory supported by processor8 GB
Memory types supported by processorDDR3L-SDRAM
Memory channels supported by processorDual
ECC supported by processorN
Intel Virtualization Technology (VT-x)Y
Intel Clear Video TechnologyY
Processor package size25 x 27 mm
On-board graphics adapter base frequency400 MHz
Maximum on-board graphics adapter memory8 GB
Processor seriesIntel Pentium N3000 series for Mobile
On-board graphics adapter burst frequency700 MHz
USB 3.0 (3.1 Gen 1) Type-A ports quantity3
Conflict Free processorY
Scenario Design Power (SDP)4 W
Integrated 4G WiMAXN
Intel Secure BootY
Number of displays supported (on-board graphics)3
Intel® Wireless Display (Intel® WiDi)Y
Intel® Insider™N
Intel® Clear Video HD Technology (Intel® CVT HD)Y
Intel® AES New Instructions (Intel® AES-NI)Y
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Y
Intel® Hyper Threading Technology (Intel® HT Technology)N
Intel® Identity Protection Technology (Intel® IPT)Y
Intel® Anti-Theft Technology (Intel® AT)N
Intel® Secure KeyY
Intel® Small Business Advantage (Intel® SBA)N
Intel® OS GuardN
Intel® Turbo Boost TechnologyN
Intel® Quick Sync Video TechnologyY
Intel® High Definition Audio (Intel® HD Audio)Y
Intel® Smart Response TechnologyN
Processor ARK ID91830
Intel® InTru™ 3D TechnologyN
RAM capacity4 GB

WDBNFA0400KBK-EESN.pdf

Western Digital PR4100 Data Sheet

Download (389.68k)
