Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl
  • Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl
  • Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl
  • Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl
  • Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl
  • Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl
  • Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl
Avocent AV104 KVM basic switch offers simplified local access, management and control of up to 4 targets from a single console. This single user, smaller form factor KVM switch is designed specifically for IT rooms, small Data Centers and Branch Offices.



- Single-user, small 0U/1U or desktop form factor KVM switch allows local user to control up to 4 computers from single, keyboard, and mouse

- Supports both VGA and DisplayPort (DP) targets with a resolution of up to 2048 x 1536

- Switch between targets with intuitive touch buttons and hot-key operation

- Dedicated USB port for firmware upgrades

- Consolidated Server Management provides simplified local access, management and control of server resources from a single console

- Designed specifically for IT Rooms, small Data Centers and Branch Offices

- Cost-efficient solution to streamline access and control to server resources and increase speed to remediation and operational efficiencies
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Audio connectionsN
Built-in displayN
Cable lock slotN
Cables includedAC,VGA
CertificationUL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, RCM, BSMI
Console portVGA
Console portsUSB A,VGA (D-Sub)
Console USB ports quantity3
DC-in jackN
Depth120.7 mm
Ethernet LANN
Firmware upgradeableY
Height43.7 mm
Keyboard port typeUSB
LED indicatorsY
MaterialMetal
Maximum cable length3.6 m
Maximum resolution2048 x 1536 pixels
Mouse port typeUSB
Number of computers controlled4
Number of users1 user(s)
On Screen Display (OSD)N
Operating relative humidity (H-H)20 - 85 %
Operating temperature (T-T)0 - 50 °C
Package typebox
Power consumption (typical)10 W
Power sourceAC
Push buttonY
Quick installation guideY
Rack capacity1U
Rack mount kitY
Rack mountingYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-30 - 70 °C
USB 2.0 ports quantity3
USB connector typeUSB Type-A
VGA (D-Sub) ports quantity1
Video port typeVGA
Weight1632 g
Width432 mm
Display connectionY
USB hubN
CascadableY
Hot keysY
Integrated cablesY
Display switch buttonY
Product colourBlack

AV104BND4-400.pdf

Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl Data Sheet

Download (393.07k)

Similar products

  • Vertiv SC840D-201
    Vertiv SC840D-201
  • Vertiv SVKM120
    Vertiv SVKM120
  • Vertiv AV 3216
    Vertiv AV 3216
  • Vertiv HMXAMGR24-201
    Vertiv HMXAMGR24-201
  • Vertiv MXT5110
    Vertiv MXT5110

Vertiv 1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, incl

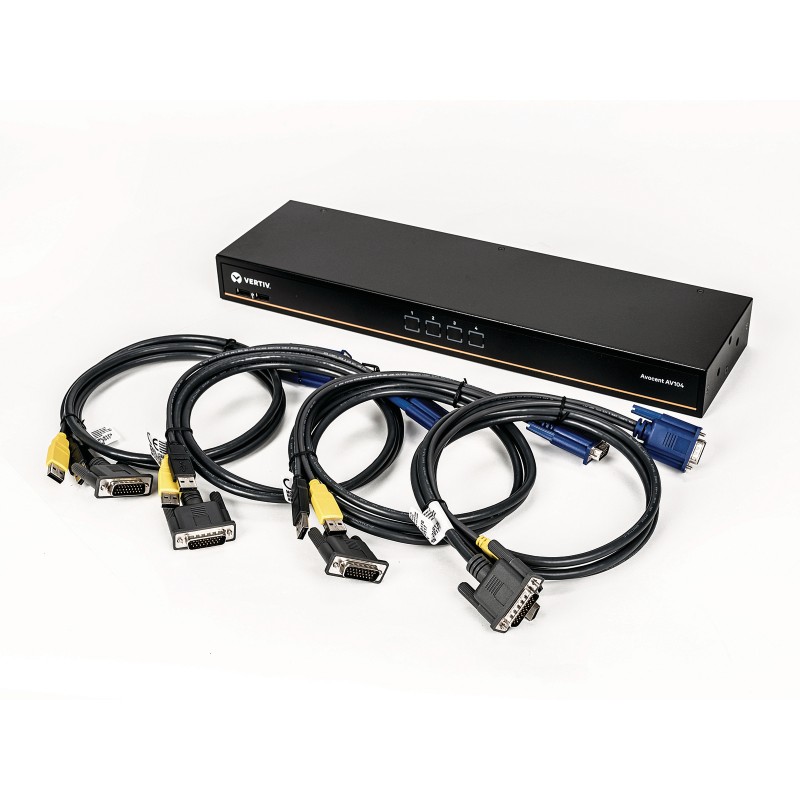

1x4 KVM switch with USB, push (touch) button switching, keystroke switching, cascade support, internal power supply, includes 4 CBL0170 cables (6-foot 26-pin to VGA target cable)

AV104BND4-400

Out of Stock

£348.94
£290.78 Ex VAT.
