Go big with the 3000VA Rack Mount UPS from V7, our most powerful UPS. This Rack Mount UPS provides a backup power source for mission critical equipment in server rooms, data centers, and other vital equipment. It ensures a consistent flow of electricity to help prevent equipment failure and data loss during power failures, brownouts, or other power issues that can occur with power in your building. The USB port allows built in UPS configuration and control, and auto-shutdown features for your computers or servers.
- 3000VA Rack Mount UPS with Pure Sine Wave Output with 8 IEC Outlets
- Boost and Buck AVR automatically adjusts for under-voltage and over-voltage ensuring stable power and longer life batteries.
- ECO (Efficiency Corrective Optimizer) for energy saving and EPO function (Emergency Power Off)
- Programmable power management outlets maximize backup time to critical devices by setting shorter backup time for non-critical devices
- Audio & Visual alarms for immediate warning of battery, load, and other issues
- 3000VA Rack Mount UPS with Pure Sine Wave Output with 8 IEC Outlets
- Boost and Buck AVR automatically adjusts for under-voltage and over-voltage ensuring stable power and longer life batteries.
- ECO (Efficiency Corrective Optimizer) for energy saving and EPO function (Emergency Power Off)
- Programmable power management outlets maximize backup time to critical devices by setting shorter backup time for non-critical devices
- Audio & Visual alarms for immediate warning of battery, load, and other issues
| AC outlet types | IEC Jumpers |
| Battery capacity | 648 VAh |
| Battery recharge time | 4 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Cable length | 3.05 m |
| Certification | CE, REACH |
| Colour of product | Black |
| Cooling type | active |
| Country of origin | China |
| Depth | 630 mm |
| Display | LCD |
| Emergency Power Off (EPO) | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Form factor | Rackmount/Tower |
| Height | 88 mm |
| LED indicators | Y |
| Modem (RJ-11) ports | 1 |
| Noise level | 45 dB |
| Number of output IEC jumpers | 8 |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output power | 2700 W |
| Package depth | 700 mm |
| Package height | 240 mm |
| Package weight | 32600 g |
| Package width | 565 mm |
| Quick installation guide | Y |
| Rack capacity | 2u |
| RoHS compliance | Y |
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| Surge energy rating | 720 J |
| Surge protection | Y |
| Typical backup time at full load | 3.7 min |
| Typical backup time at half load | 11.8 min |
| USB 2.0 ports quantity | 1 |
| USB port | Y |
| Warranty card | Y |
| Waveform | Sine |
| Weight | 29300 g |
| Width | 438 mm |
| Output power capacity | 3000 VA |
| UPS topology | Line-Interactive |
| Audible alarm(s) | Y |
| Hold time (min) | 4 ms |
| Hold time (max) | 8 ms |
| Audible alarm modes | Alarm when on battery,Fault,Low battery alarm,Overload alarm |
| Serial interface | Y |
| Emergency Power Off (EPO) connector | Y |
Specific References
- EAN13
- 0662919095234

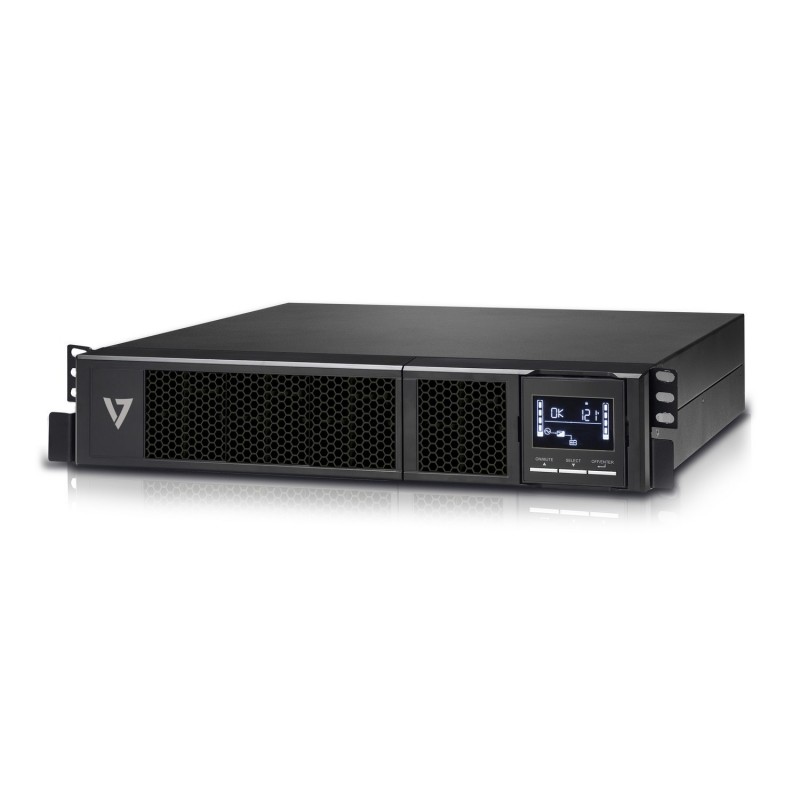

V7 UPS 3000VA Rack Mount 2U EU
3000VA, 2700W, 720J, 8x IEC, RJ-11, RJ-45, USB, 2U, EU
£520.19
£433.49 Ex. VAT
3000VA, 2700W, 720J, 8x IEC, RJ-11, RJ-45, USB, 2U, EU
