Tripp Lite's SMARTINT1500 intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures. 1500VA/940 watt power handling capability supports a variety of networking, telecom and various other application types, including the support of multiple network workstations. Includes a total of 6 IEC320-C13 outlets. Supports remote monitoring of UPS and site power conditions via built-in DB9 serial and DB9 contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Wall mountable with optional UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, small-footprint tower. Two year warranty.
- 1500VA/940 watt power handling capability supports a variety of networking, telecom and various other application types
- Built-in voltage regulation and battery support, plus complete AC suppression prevents equipment damage, data loss and downtime
- Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures
- Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 230V nominal output over an input voltage range of 165-277V
- Includes 1 DB9 serial and 1 DB9 contact closure monitoring port for remote monitoring of UPS status and site power conditions
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity
- PowerAlert UPS monitoring and unattended shutdown software with complete cabling included
- Includes 6 UPS-supported outlets
- Notification of system status via 5 LEDs and multi-function audible alarms
- Wall mountable with UPSWM wallmount bracket
- Attractive small footprint beige tower housing
- Hot-swappable/user replaceable batteries allow on-site battery replacement
- Network-grade AC surge suppression
- UPS battery set ships fully assembled, no time consuming connection of internal batteries by user is necessary
| AC outlet types | C13 coupler |
| Certification | UL1778 |
| Colour of product | White |
| Depth | 235 mm |
| Form factor | Tower |
| Height | 324 mm |
| Input operation voltage (max) | 230 V |
| Input operation voltage (min) | 230 V |
| Interface | DB9 |
| LED indicators | Yes |
| Maximum current | 10 A |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Output power | 940 W |
| Output power capacity (VA) | 1500 VA |
| Power factor | 0.6 |
| Power plug | C14 coupler |
| Power protection features | Over voltage, Under voltage |
| Power supply input frequency | 50/60 Hz |
| Source data-sheet | Icecat.biz |
| Storage temperature range (T-T) | -15 - 50 °C |
| Surge energy rating | 480 J |
| Typical backup time at full load | 7 min |
| Typical backup time at half load | 20 min |
| Width | 190 mm |
Specific References
- EAN13
- 0037332033925

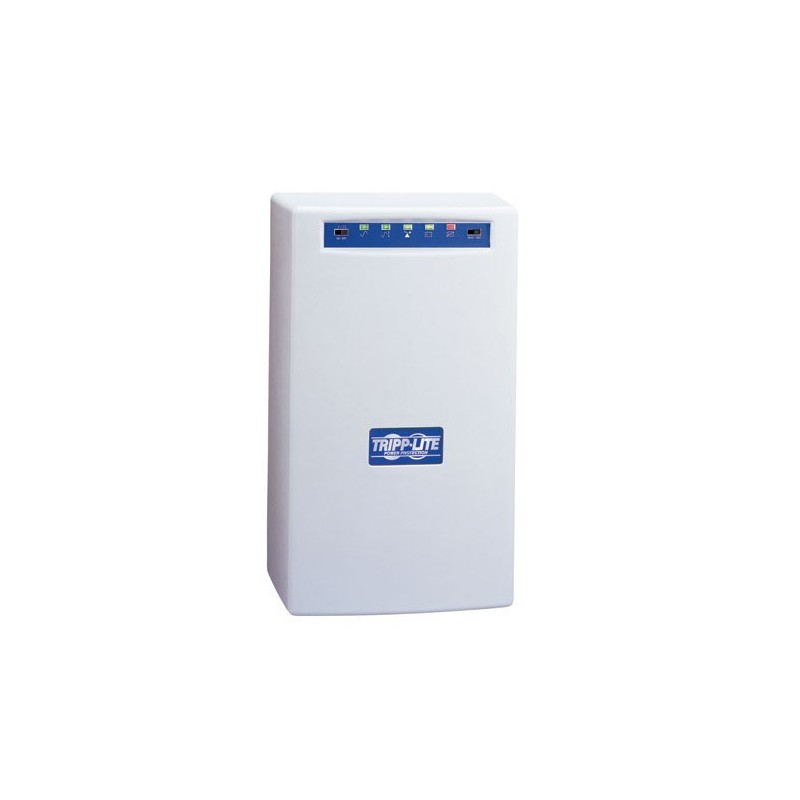

Tripp-Lite SMARTINT1500 uninterruptible power supply (UPS)
SmartPro 1.5kVA Line Interactive UPS, Tower, Serial, 230V
£393.75
£328.13 Ex. VAT
SmartPro 1.5kVA Line Interactive UPS, Tower, Serial, 230V
