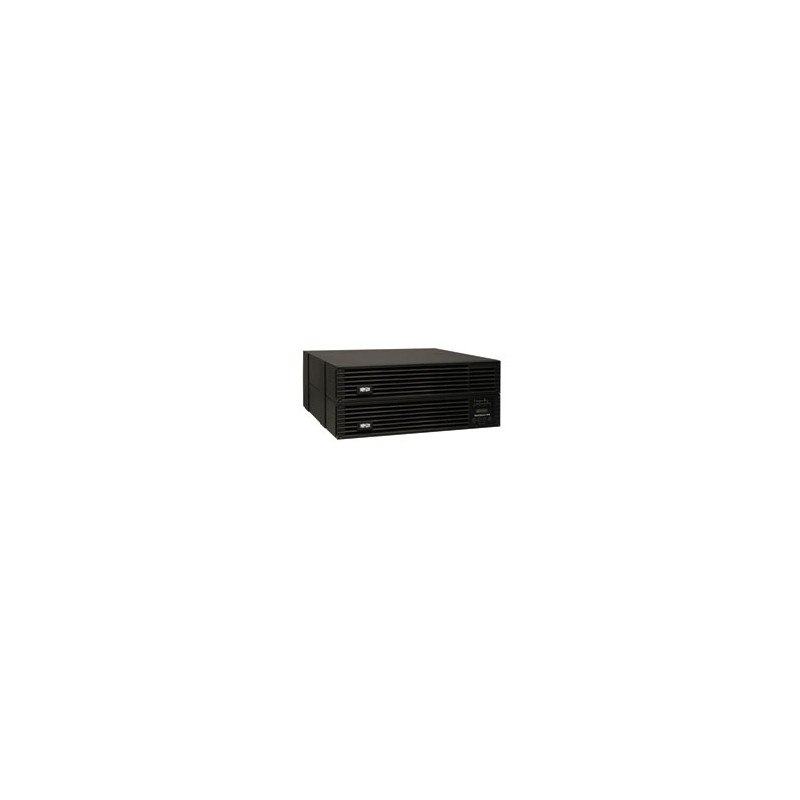

Tripp Lite SU6000RT4UHVG 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a single 4U rack/tower compatible housing. Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Detachable back panel PDU with manual bypass switch supports hot-swappable whole UPS replacement with no interruption to connected equipment. Single all-in-one rack / tower housing installs in only 4 rack spaces (4U) with a maximum installed depth of only 20.7 in. / 52.6cm. Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V. Expandable runtime is supported with optional BP192V12-3U external battery packs. Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Double-conversion operation converts raw input from AC to DC, then re-synthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs. Network-grade AC surge and noise suppression. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces. Optional network management card options available. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted. Supports Emergency Power Off (EPO) via built-in interface. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS for a variety of control options to support advanced UPS settings and configurations. LED / LCD display panel rotates for viewing in rackmount or tower configurations. Hardwire input and 4 C19 outlets. Support for optional North American and International cordsets. External battery packs are field replaceable and hot swappable.

● Tripp Lite SU6000RT4UHVG 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system in a single 4U rack/tower compatible housing (output is limited to 4992 watts when used at 208V with L6-30P input plug)

● Full-time active power conditioning maintains clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise

● Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

● Detachable back panel PDU contains hardwire input line cord connection, output receptacles and manual bypass switch to support hot-swappable whole UPS replacement with no interruption to connected equipment

● Hardwire input and 4 C19 output receptacles

● Included rail kit supports 4U 19 inch rackmount installation in 4 post racks

● Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (1 required for SU6000RT4UHVG)

● Optional 2-9USTAND supports upright tower placement (1 required for SU6000RT4UHVG)

● Maximum installed rack depth of only 20.7 in. / 52.6cm

● Maintains full-time sine wave output within 2% of selected 200/208/220/230/240V nominal in double conversion mode

● Corrects brownouts to 156V at full load (100V at 50% load or less)

● Corrects overvoltages to 290V at full load (300V at 90% load or less)

● Supports 50/60Hz operation for worldwide frequency compatibility

● Double-conversion operation offers full-time AC to DC, then DC to AC conversion to maintain perfectly regulated sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types

● High efficiency ECONOMY MODE operation significantly reduces BTU heat output and operating energy costs

● Network-grade AC surge and noise suppression

● Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232, USB and network management card options

● Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD

● Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)

● HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

● USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert

● Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions with support for a variety of control options to support advanced UPS settings and configurations

● LED/LCD display panel rotates for viewing in rackmount or tower configurations

● Supports Emergency Power Off (EPO) via built-in interface

● Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement

● BP192V12-3U external battery packs are field replaceable and hot swappable

● Intelligent battery management system with temperature-compensated charging extends battery life

● Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)

● Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

● 6kVA / 6000VA / 5400W on-line double-conversion UPS; 0.9 power factor

● Included maintenance bypass switch enables live replacement of UPS with zero downtime

● 200/208/220/230/240V 50/60Hz output; High efficiency economy mode option

● 4U Rack/Tower compatible; Hot-swap power and battery modules

● USB, RS232 & EPO ports; Network management card options

● Front panel LEDs with detailed LCD monitoring and control screen

● Expandable runtime with optional external battery packs

● Hardwire input (3 wire) with optional cordsets available; C19 outlets



Package Includes



● SU6000RT4UHVPM Hot-swappable UPS Power Module

● SUPDMB6KIEC Detachable PDU with Maintenance Bypass Switch

● 1 x 1.83 m USB Cable

● 1 x 1.83 m DB9 Cable

● 4-Post Rackmount Hardware
