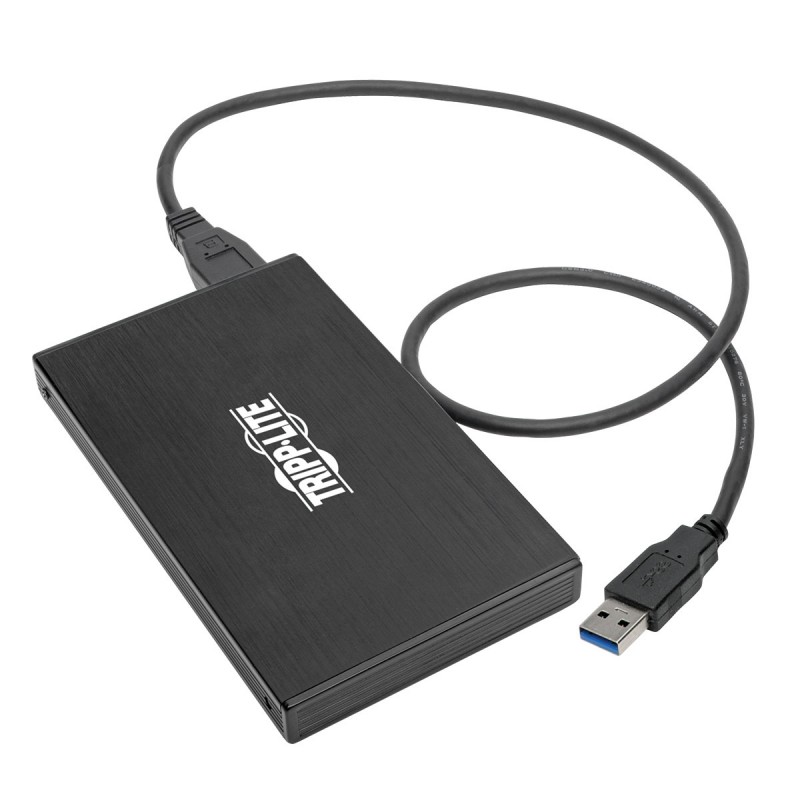

The U457-025-AG2 USB 3.1 Gen 1 (5 Gbps) SATA SSD/HDD to USB-A Enclosure Adapter lets you connect a high-performance SATA solid state drive (SSD) or hard disk drive (HDD) to a computer or laptop with a USB-A port. Not only does it support USB 3.1 Gen 1 data transfer rates up to 5 Gbps, but it reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller.
Recommended for storing and sharing large files, such as photos, music and video files, the U457-025-AG2 accepts 2.5-inch SATA drives up to 2 TB. You can access data on an older SATA drive, or use a new SATA drive for additional storage space. The adapter is plug-and-play, so no software, drivers or external power supply is required, and it is backward compatible with previous USB generations. A blue LED indicates data is being read, written or transferred. Slim aluminum case stores conveniently in a backpack or laptop bag for use anywhere.
Connects an Internal SATA Drive to Your Computer’s USB-A Port
● Recommended for storing and sharing large photo, music and video files
● Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
● Features UASP for performance up to 70% faster when connected to UASP-enabled host controller
● Compatible with all USB-enabled operating systems
Compatible with 2.5 in. SATA Drives Up to 2 TB
● Accepts SATA III, II and I SSDs and HDDs
● Will support higher-capacity drives when available
● Backward compatible with previous USB generations
● Blue LED indicates drive data is being read, written or transferred
Designed for Immediate Use
● Plug and play—no software, drivers or external power supply needed
● Durable slim aluminum case perfectly sized for backpack or laptop bag
● Enclosed housing protects drive in applications requiring more durability
● USB 3.1 Gen 1 cable included
● Compatible with 2.5 in. SATA SSDs and HDDs up to 2 TB
● Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
● Works up to 70% faster when connected to UASP host controller
● Durable slim design perfectly sized for backpack or laptop bag
● Plug-and-play—no software, drivers or external power supply
System Requirements
● Computer with USB port (USB 3.1 Gen 1 port required for maximum speed)
● 2.5 in. SATA SSD or HDD (9.5 mm max height)
Package Includes
● U457-025-AG2 USB 3.1 Gen 1 SATA SSD/HDD to USB-A Enclosure Adapter
● USB 3.1 Gen 1 Micro-B to USB-A cable, 0.61 m
● Mini screwdriver
● (2) Screws
● Storage sleeve
● Owner’s manual
Cables included |
USB |
Certification |
CE, FCC |
Colour of product |
Black |
Data transfer rate |
5 Gbit/s |
LED indicators |
Y |
Manual |
Y |
Material |
Aluminium |
Maximum capacity |
2 TB |
Number of storage drives supported |
1 |
Operating relative humidity (H-H) |
10 - 80 % |
Operating temperature (T-T) |
10 - 50 °C |
Plug and Play |
Y |
Power source type |
USB |
Product type |
HDD/SSD enclosure |
RoHS compliance |
Y |
Storage drive size |
2.5 " |
Storage temperature (T-T) |
0 - 65 °C |
Supported storage drive heights |
9.5 mm |
Supported storage drive interfaces |
Serial ATA,Serial ATA II,Serial ATA III |
Travel pouch |
Y |
UASP support |
Y |
USB connectivity |
Y |
USB connector type |
Micro-USB B |
USB version |
3.0 (3.1 Gen 1) |
Screwdriver included |
Y |
Download
Tripp Lite USB 3.1 Gen 1 (5 Gbps) 2.5 in. SATA SSD/HDD to USB-A Enclosure Adapter with UASP Support Data Sheet
Download (443.59KB)
