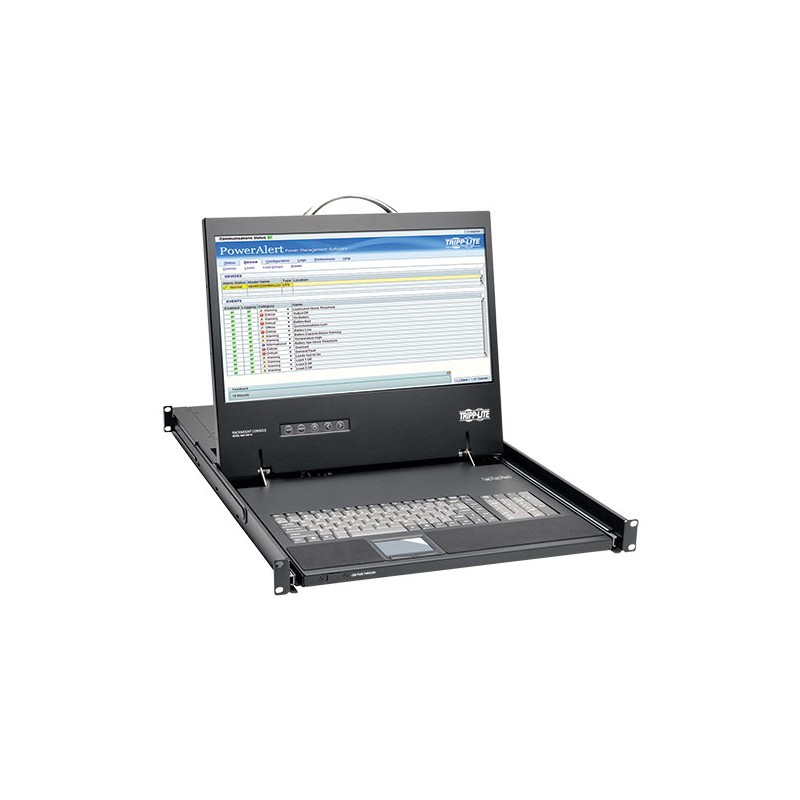

Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
  • Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA
Need to add convenient rack-side access to securely manage and control your critical network systems? Tripp Lite's B021-000-19-HD Rack-mount Console is the smart solution for controlling a computer, server or KVM switch in IT applications where rack space is at a premium. The console features an integrated 19" LCD, full 88-key keyboard, and touch pad, all in a 1U rack-mountable housing. A sliding 1U drawer and flip screen allows you to store the console neatly in the rack when not in use. The B021-000-19-HD features a DVI-I port that supports either DVI Digital or VGA Analog (when using the included DVI to VGA adapter) video signals. For added convenience, the console features a USB 2.0 pass-through port for easy connection of a USB peripheral such as a flash drive or CAC card reader. Your peripheral device connects to the USB type A port on the front of the unit and your server or KVM switch (must have a USB hub port) connects to the USB type A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable. The included KVM cable kit allows for connection to a USB server or KVM switch. With its high-quality 19-in. LCD screen, premium connectors, intuitive controls and broad compatibility, the B021-000-19-HD will provide trouble-free operation in demanding high-availability environments.



- Rack-mount console (19” LCD monitor, keyboard and touch pad) in a space-saving, 1U rack-mountable housing

- DVI-I port supports both digital and analog video, with a maximum resolution of 1366 x 768

- Includes a DVI to VGA adapter for the connection of a VGA server or KVM switch

- Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive or CAC card reader

- Ideal for controlling a computer, server or KVM switch in IT environments where rack space is at a premium

- Mountable in 19 inch 1U system racks with depths ranging from 27 to 42 inches (rack-mount hardware is included)

- Input 110/220 V, 2A with a NEMA 5-15P and C14 on unit

- Constructed of heavy-duty steel housing

- Combines a full keyboard, numeric keypad, touchpad and 19-in. LCD in a 1U sliding drawer that stores neatly in the rack when not in use

- No server-resident software is required, so server performance and reliability are never compromised

- DVI-I port supports both digital and analog video signals

- Includes a DVI to VGA adapter for the connection of a VGA server or KVM switch

- The 19-in. LCD screen supports video resolutions of up to 1366 x 768

- Nearly all platforms can be accommodated, including UNIX®, Linux®, Windows®, Mac OS®, Solaris™, because compatibility is based on common hardware standards rather than system software dependencies

- Compatible with most KVM switches that have a VGA or DVI monitor port and USB keyboard/mouse ports

- Features a USB 2.0 pass-through port for easy connection of a USB peripheral, such as a flash drive or CAC card reader

- The peripheral device connects to the USB-A port on the front of the unit, and your server or KVM switch (must have a USB hub port) connects to the USB-A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable (sold separately)
AC adapter frequency50/60 Hz
AC adapter input voltage100 - 240 V
Cables includedAC,KVM
CertificationUL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Colour of productBlack
Console portVGA
Depth692.4 mm
Display diagonal19 "
Display typeLCD
Height43.2 mm
Input current0.7 - 1.2 A
Operating temperature (T-T)0 - 40 °C
Power consumption (standby)5 W
Power consumption (typical)30 W
Rack capacity1U
Relative humidity20 - 90 %
Storage temperature (T-T)-25 - 60 °C
Weight12600 g
Width477 mm

B021-000-19-HD.pdf

Tripp Lite 1U Rackmount Console with 19-in. LCD, DVI or VGA Data Sheet

Download (515.21k)
