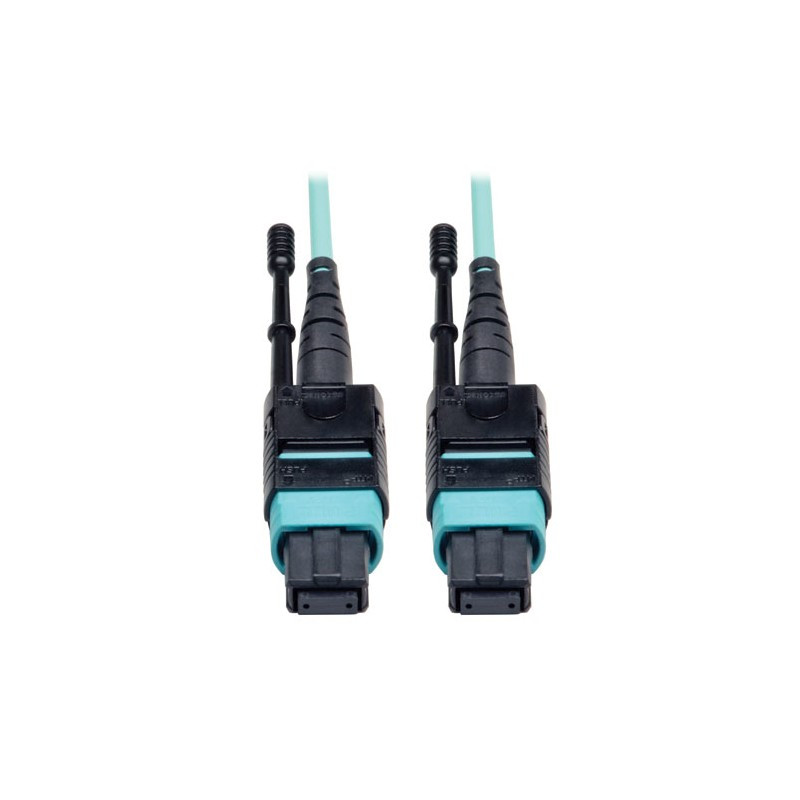

MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 5M (16-ft.)
  • MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 5M (16-ft.)
  • MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 5M (16-ft.)
  • MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 5M (16-ft.)
  • MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 5M (16-ft.)
Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms and data centers. They feature Push/Pull tab connectors that offer maximum accessibility in high density installations; install / remove with one hand. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. N844 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE.



● MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections

● Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand

● 12 times the density of SC style connectors

● High Density design cuts down on installation costs

● 50/125 OM3 Rated Multimode Fiber, 850nm

● Plenum rated jacket

● Unique cable ID label for Quality Control and Traceability

● Each cable 100% tested for low insertion loss and back reflection

● Test data supplied with each cable>

● Custom lengths available



● Hi-density MTP/MPO 12-fiber connectors for reduced cabling

● Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand

● OM3 rated 50/125 Multimode

● Supports to 40GbE speeds



Package Includes



● 5 Meter MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum
Cable length 4.88 m
Cable type OM3
Cladding diameter 125 µm
Colour of product Black, Turquoise
Connector 1 MTP
Core diameter 50 µm
Data transfer rate 40 Gbit/s
Fiber mode structure Multi-mode
Gender Male/Male
RoHS compliance Yes
Wavelength 850 nm

Specific References

EAN13
0037332173744

Tripp Lite MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 5M (16-ft.)

MTP/MPO Patch Cable, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 5M (16-ft.)
Out of Stock
£195.33
£162.78 Ex. VAT
Reference: N844-05M-12-P
Quantity
