B064-032-04-IPG
  • B064-032-04-IPG
  • B064-032-04-IPG
  • B064-032-04-IPG

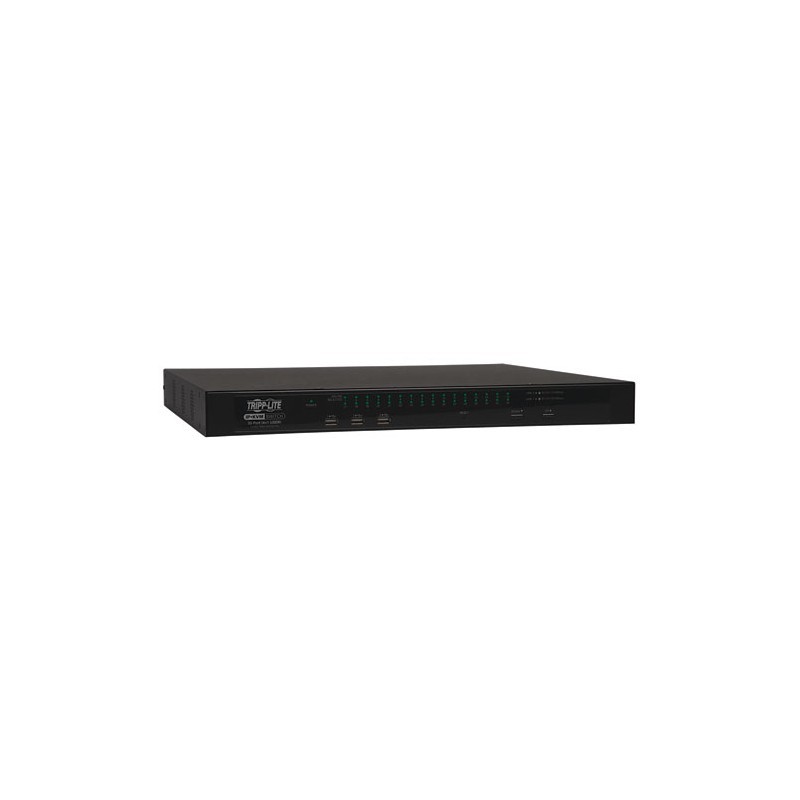

Tripp Lite's 32-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 5 (1 Local and 4 Remote) independent, simultaneous users. A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Other features include dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.



- Simultaneous support for 5 users (1 local, 4 remote)

- Supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols

- Blade server support

- Virtual Media allows computers connected using a B055-001-USB-V2 SIU to access DVD/CD drives, flash drives and other storage media from a user's remote computer as if it were directly connected

- Remote Authentication: RADIUS, LDAP, LDAPS, and Active Directory

- Up to 5 users (1 Local, 4 Remote) can simultaneously access the connected computers/servers

- Features two RJ45 network ports for redundant or dual-IP operation

- Supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols

- Blade server support

- Multi-level authentication; Super Administrator, Administrator and User

- Advanced encryption technologies - 1024 bit RSA; 56 bit DES; 256 bit AES and 128 bit SSL

- View multiple ports at the same time using the panel array mode feature

- Virtual Media allows computers connected to the KVM using a B055-001-USB-V2 SIU to access DVD/CD drives, flash drives and other storage media from a user's remote computer as if it were directly connected

- An additional three USB ports are located on the front of the KVM for the sharing of USB peripherals.

- Remote authentication support; RADIUS, LDAP, LDAPS and Active Directory

- Track critical events on the installation via email notification, SNMP traps, Windows-based Log Server or Syslog server

- Dual power supplies allow the unit to continue running in the event one power supply ceases to receive power

- Built-in sensors increase/decrease the speed of the unit's cooling fans according to the temperature

- Dial-in / Dial-out modem support

- Graphical OSD can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese

- Features an on-screen keyboard with numerous language formats

- Supports 10Base-T, 100Base-T, 1000Base-T, Auto-Sense, TCP/IP, HTTP, DNS, DHCP, UDP, ARP and Ping

- Compatible with all major operating systems

- Constructed of heavy-duty steel housing
CertificationUL/cUL, FCC, CE, TAA, RoHS
Colour of productBlack
Connectivity technologyWired
Data link protocolsTCP/IP, HTTP, DNS, DHCP, UDP, ARP
Keyboard port typeUSB, PS/2
LED indicatorsYes
Maximum resolution1600 x 1200 pixels
Mouse port typeUSB, PS/2
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 50 °C
Ports quantity32
Rack mountingYes
Storage temperature (T-T)-20 - 60 °C
Video port typeVGA
Weight17 lbs
