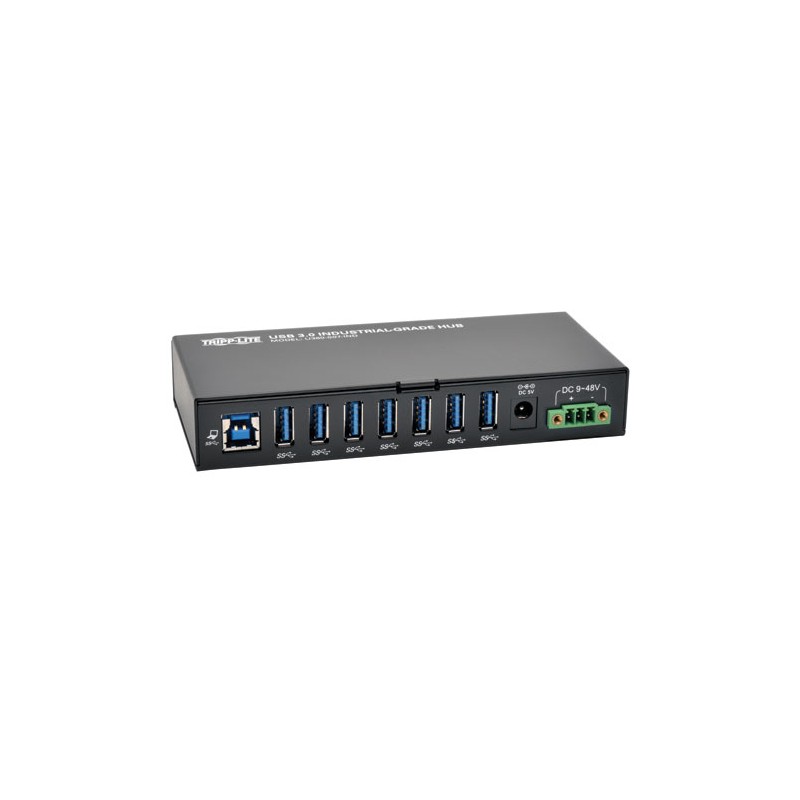

Tripp Lite's U360-007-IND is a rugged, all metal, USB 3.0 SuperSpeed 7-Port hub that's ideal for use in data centers, work areas and industrial applications. Can be mounted on a wall or din rail with included mounting hardware. Supports SuperSpeed USB 3.0 transfer rates at 5 Gbps, but is also backward compatible to USB 2.0 and 1.1 (480mbps and 12mbps). It is bus-powered through the computer connection, or can self-power with an external adapter (not included) or via the included 3-wire terminal block connector (9-48V DC).
● Increases the number of SuperSpeed USB 3.0 ports from a single computer port
● USB 3.0 compliant with data transfer rates up to 5 Gbps
● Backward-compatible with USB 2.0 and 1.x
● Rugged all-metal enclosure designed for use in industrial applications
● Wallmount and DIN rail hardware included for secure installation
● Three power connection options (source USB port, external power supply (* not included) or 3-wire terminal block)
● Each USB 3.0 port provides up to 900 mA of power
● Overcurrent detection and protection
● Supports 2 kV surge protection per port
● ESD protection to +/- 15 kV
● Automatic link and speed detection
● Plug-and-play; no software or drivers required
* The U360-004-IND and U360-007-IND are compatible with listed LPS power supplies from 9V DC to 40V DC. These power supplies use a 5.5 x 2.1 x 9.5 mm output plug with either a positive tip and a negative sleeve, or a negative tip and positive sleeve.
● Increases the number of SuperSpeed USB 3.0 ports from a single computer port
● USB 3.0 compliant with data transfer rates up to 5 Gbps
● Rugged all-metal enclosure designed for use in industrial applications
System Requirements
● Compatible with all USB-enabled operating systems
Package Includes
● U360-007-IND Industrial-Grade USB 3.0 Hub
● USB 3.0 cable
● 3-pin power terminal block
● DIN mounting hardware
● Wallmount hardware
● Owner’s Manual
Batteries not Required to Operate
Cables included |
USB |
Card reader integrated |
No |
Colour of product |
Black |
Data transfer rate |
5000 Mbit/s |
Depth |
63.5 mm |
Height |
25.4 mm |
Host interface |
USB 3.0 (3.1 Gen 1) Type-B |
Hub interfaces |
USB 3.0 (3.1 Gen 1) Type-A |
Manual |
Yes |
Material |
Metal |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
0 - 60 °C |
Plug and Play |
Yes |
Ports quantity |
7 |
Power source type |
AC |
Surge protection |
Yes |
Terminal block included |
Yes |
USB powered |
No |
Wall mounting kit |
Yes |
Width |
142.2 mm |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
7 |
Tripp Lite U360-007-IND Data Sheet
