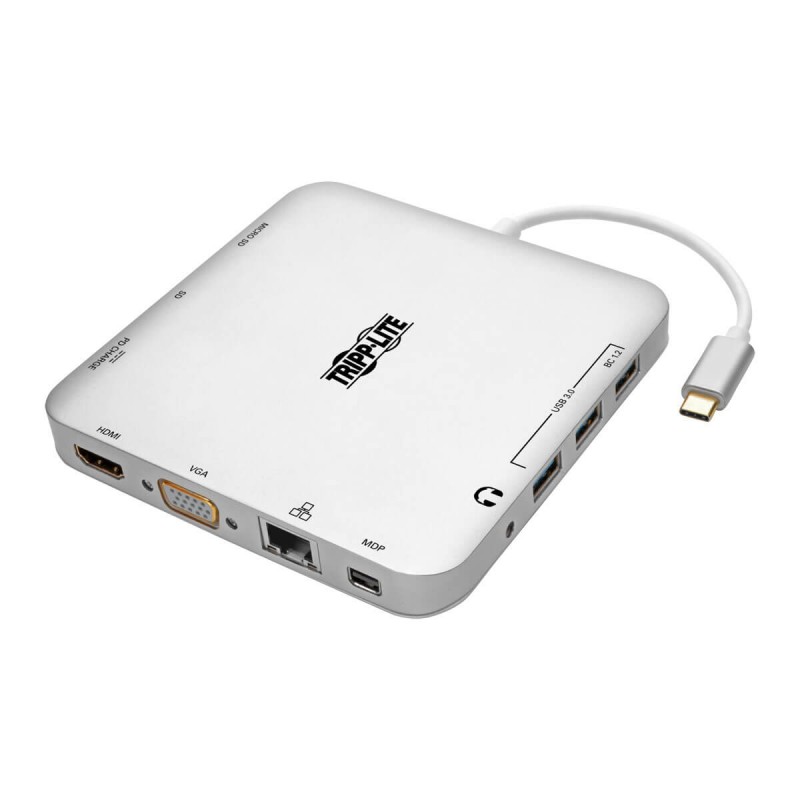

Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
  • Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
  • Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
  • Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
  • Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
  • Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
  • Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
  • Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation

The U442-DOCK2-S expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more—all at the same time.

Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals

With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

Transmits Crystal-Clear 4K Video and Digital Audio

To send digital audio and Ultra High Definition video to a 4K-ready HDMI or Mini DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or mDP cable (sold separately). The Mini DisplayPort and HDMI ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Only one display can be connected at a time. A DisplayPort or DVI display may also be connected using an mDP to DP or HDMI to DVI adapter (adapters sold separately).

Connects Keyboards, Thumb Drives and Other USB Peripherals

The USB-A hub ports accept up to three USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. A BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices.

Charges the Connected Laptop, Smartphone or Other Device

The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U442-DOCK2-S is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 60W—45W for the USB-C device and 15W dedicated to the U442-DOCK2-S and its USB-A hub ports.

Accesses a Wired Gigabit Ethernet Network

The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

Connects Audio Equipment

The USB-C hub’s 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.

Allows External Memory Access

The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet.

Built-In USB-C Cable Connects in Either Direction

Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

Ready to Use Right Out of the Package

The plug-and-play USB-C dock requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.

3-Year Warranty and Environmentally Responsible Design

The U442-DOCK2-S comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.



TYPICAL APPLICATIONS



● Play video from your laptop or PC on an HDMI, VGA or mDP display, such as an HDTV or projector

● Access a wired Ethernet network in a location with no or spotty Wi-Fi

● Transfer data to and from a USB flash drive, Micro SD or SD/MMC memory card

● Charge your notebook or laptop by connecting its wall charger to the USB-C PD Charging port

● Connect a microphone/headset to record a podcast or listen to music

● Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode

● Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz

● Connects you to a wired Ethernet network when no Wi-Fi is available

● Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks

● Easy installation with plug-and-play operation—no software required

System Requirements

● Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode

● Display device with DisplayPort*, Mini DisplayPort, VGA, DVI* or HDMI input

● Not for use with Thunderbolt monitors

*Requires adapter (sold separately)

Package Includes

● U442-DOCK2-S USB-C Laptop Docking Station w/HDMI, VGA, GbE, 4K, Thunderbolt 3 - mDP, USB-A, PD Charging, 30 Hz, Silver

● Owner’s manual
AC input voltage 20 V
Auto MDI/MDI-X Y
Card reader integrated Y
Certification CE, FCC, REACH
Charging function Y
Compatible memory cards MMC,MicroSD (TransFlash),SD
Connectivity technology Wired
Data transfer rate 5 Gbit/s
Depth 210.8 mm
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 1000 Mbit/s
HDMI ports quantity 1
HDMI version 1.4
Host interface USB 3.1 (3.1 Gen 2) Type-C
Input current 3 A
Mac compatibility Y
Mac operating systems supported Y
Manual Y
Material Aluminium,PVC
Maximum digital resolution 3840 x 2160 pixels
Microphone in N
Mini DisplayPorts quantity 1
Networking standards IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H) 10 - 85 %
Operating temperature (T-T) 0 - 45 °C
Output current 0.9 A
Output voltage 5 V
Plug and Play Y
Power consumption (typical) 5 W
Quantity per pack 1 pc(s)
RoHS compliance Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -10 - 70 °C
USB connector type USB Type-C
VGA (D-Sub) ports quantity 1
Weight 230 g
Windows operating systems supported Y
USB 3.0 (3.1 Gen 1) Type-A ports quantity 3
USB 3.1 (3.1 Gen 2) Type-C ports quantity 1
Product colour Silver

Specific References

EAN13
0037332213488

U442-DOCK2-S.pdf

Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver Data Sheet

Tripp Lite USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver

USB-C Laptop Docking Station w/ mDP, HDMI, VGA, GbE, 4K @ 30 Hz, Thunderbolt 3 - USB-A, PD Charging, Silver
Out of Stock
£91.03
Tax excluded
Reference: U442-DOCK2-S
