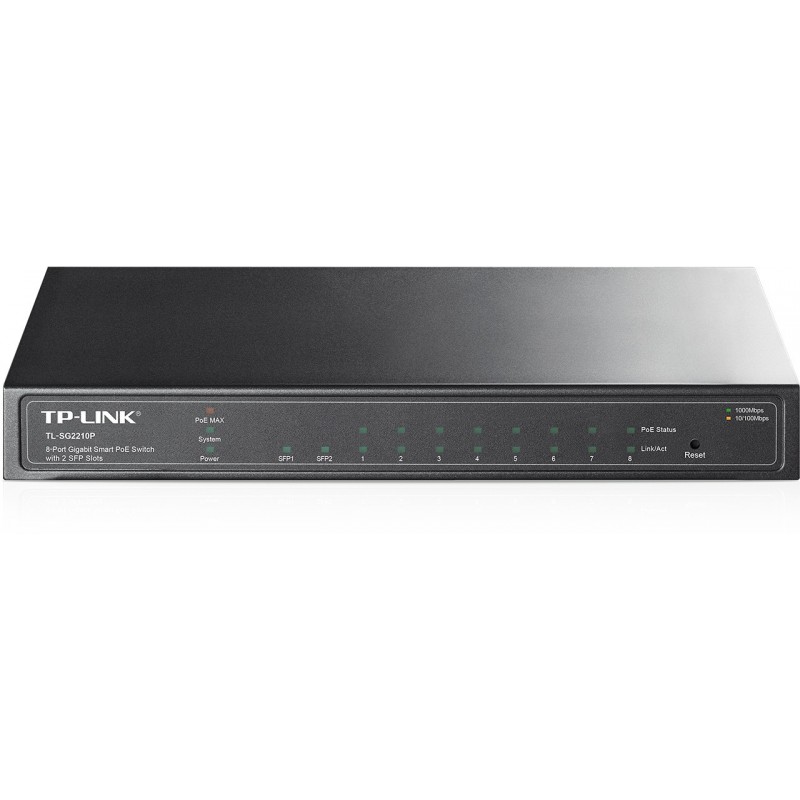

TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
  • TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
  • TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
  • TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
What This Product Does

TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support the PoE standard with total PoE power budget of 53W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

TP-LINK’s Gigabit Smart Switch TL-SG2210P is especially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.



IEEE 802.3af-compliant Power over Ethernet

The TL-SG2210P supports 8 ports of IEEE 802.3af-compliant PoE and has a total power supply of 53W to power any 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.



Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.



Abundant Layer 2 Features

For more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.



Enterprise Level Management Features

TL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Access Control List (ACL) Yes
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Yes
Cables included AC
Certification FCC, RoHS
Colour of product Black
Compatible operating systems Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Console port RJ-45
Copper ethernet cabling technology 1000BASE-T,1000BASE-TX,10BASE-T
Depth 126 mm
Fiber ethernet cabling technology 1000BASE-X,100BASE-FX
Fiber optic connector SFP
Fiber ports quantity 2
Fiber type Multi-mode
Flow control support Yes
Height 26 mm
IGMP snooping Yes
Jumbo frames support Yes
LED indicators Link,PoE,Power
MAC address filtering Yes
MAC address table 8000 entries
Management Smart Managed
MIB support Yes
Minimum system requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Mounting Desktop
Multicast support Yes
Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of queues 4
Number of VLANs 512
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 0.5 MB
PoE Yes
PoE Ports Qty 8
Port mirroring Yes
Power consumption (typical) 53 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Quality of Service (QoS) support Yes
Quick start guide Yes
Rate limiting Yes
RJ45 Ports Qty 8
Security algorithms SNMP,SSH,SSH-2
SFP Ports Qty 2
Spanning tree protocol Yes
SSH/SSL support Yes
Stackable No
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2
Switch Speed Gigabit
Switch type Managed
Switching capacity 20 Gbit/s
Throughput 14.9 Mpps
Total Power over Ethernet (PoE) budget 53 W
Web-based management Yes
Width 209 mm
SFP module slots quantity 2

Specific References

EAN13
6935364022020

TP-LINK TL-SG2210P

20 Gbps, 14.9 Mbps, 100-240 V, 50/60 Hz, 8x 10/100/100 Mbps RJ45, 2x 1000 Mbps SFP, Fanless
