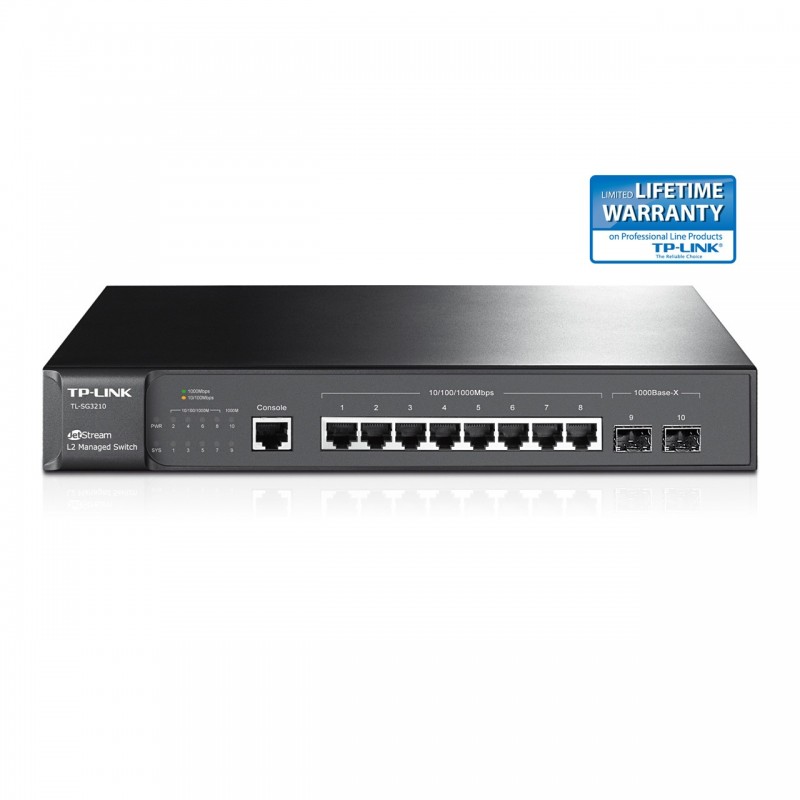

TP-LINK TL-SG3210 8-Port Gigabit L2 Managed Switch
Overview

TP-LINK JetStream™ gigabit L2 Lite managed switch TL-SG3210 provides 8 10/100/1000Mbps ports. The switch provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. Moreover, the switch also comes equipped with 2 gigabit SFP slots, expanding your network flexibly. TL-SG3210 is the cost-effective network solution for the ideal small and medium business.



TL-SG3210 has robust security and management features. The IP-MAC-Port-VID Binding and Access Control List(ACL) functions protect against broadcast storms, ARP and Denial-of-Service(DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and gigabit capability, TP-LINK JetStreamTM L2 Lite managed Switch TL-SG3210 provides you the ideal access-edge solution.



Secure Networking

TP-LINK this TL-SG3210 provides IP-MAC-Port-VID Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.



Advanced QoS features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.



Abundant Layer 2 features

For more application of layer 2 switches, TL-SG3210 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.



Enterprise Level Management Features

TL-SG3210 is easy to use and manage. It supports various user-friendly standard management features,such as intuitive web-based Graphical User Interface(GUI)or industry-standard Command Line Interface(CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. In addition, integrated NDP/NTDP protocol, the switch supports to be managed by the commander switch through IP clustering function more easily.
Access Control List (ACL)Yes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Broadcast storm controlYes
Cables includedPower
CertificationCE, FCC
Connectivity technologyWired
Console portRJ-45
Dimensions (WxDxH)294 x 180 x 44 mm
Ethernet LAN (RJ-45) ports quantity8
Firmware upgradeableYes
Flow control supportYes
Jumbo frames supportYes
MAC address filteringYes
MAC address table8000 entries
ManagementLayer 2 Managed
Maximum data transfer rate1 Gbit/s
MountingDesktop & Rackmount
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Packet transfer speed1.49 Mpps
PoENo
Port mirroringYes
Ports quantity11
Power requirements100 - 240VAC, 50/60Hz
Quality of Service (QoS) supportYes
Rack mountingYes
RJ45 Ports Qty8
SFP Ports Qty2
SFP/SFP+ slots quantity2
Source data-sheetIcecat.biz
SSH/SSL supportYes
StackableNo
Static port securityYes
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Supported data transfer rates10/100/1000 Mbps
Switch layerL2
Switch SpeedGigabit
Switch typeManaged
Switching capacity20 Gbit/s
SFP module slots quantity2

You might also like

  • LC Loaded Break Out Box
    LC Loaded Break Out Box
  • TP-LINK 1000base-BX WDM SFP Module
    TP-LINK 1000base-BX WDM SFP Module
  • TP-LINK PoE Injector
    TP-LINK PoE Injector
  • TP-LINK TL-SM311LM
    TP-LINK TL-SM311LM
  • 24 Port Cat6a FTP Shielded CCS 20/20 Right Angled Patch Panel
    24 Port Cat6a FTP Shielded CCS 20/20 Right Angled Patch Panel
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS
  • TP-LINK Gigabit SFP Media Converter
    TP-LINK Gigabit SFP Media Converter
  • LC Fibre Patch Panels
    LC Fibre Patch Panels
  • Pre-Terminated Fibre Cable
    Pre-Terminated Fibre Cable
  • Cat6 RJ45 Patch Cables
    Cat6 RJ45 Patch Cables

TP-LINK TL-SG3210

8-Port Gigabit L2, Managed, 2 x 1000Mbps SFP, Auto MDI/MDIX

TL-SG3210

Out of Stock

£113.82
£94.85 Ex VAT.
