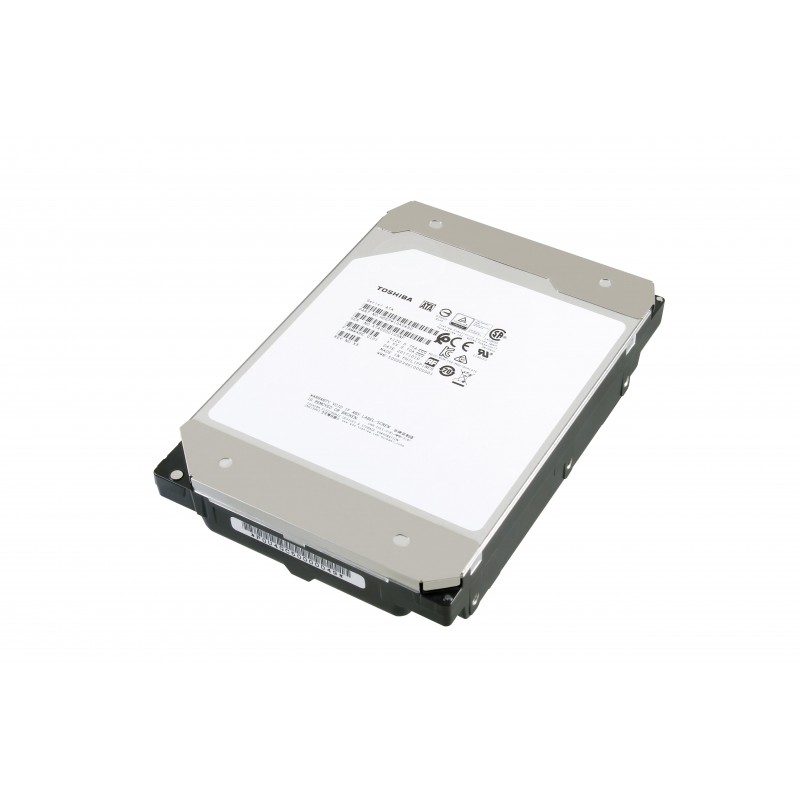

Using the world’s first 9-disk Helium-sealed design, the MG07ACA Enterprise Capacity SATA HDD provides up to 14TB of conventional magnetic recording (CMR) capacity and 7,200 rpm performance. The industry-standard 3.5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The MG07ACA Series utilizes Toshiba precision laser welding technology to seal helium inside the 9-disk mechanics for the life of the drive. The helium-sealed design reduces aerodynamic drag to deliver a lower operational power profile, helping to achieve TCO objectives for cloud-scale and software-defined data center infrastructure.
The massive 14TB and 12TB model capacity is delivered using proven CMR/PRM recording technologies providing optimum compatibility and data reliability. Equipped with SATA 6.0 Gbit/s interface, the MG07ACA models integrate easily into standard 3.5-inch SATA drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.
- 14TB and 12TB capacity models
- Innovative 9-disk helium-sealed design for superior storage density
- Industry Standard 3.5-inch 26.1 mm Form Factor
- 7,200 rpm Performance
- SATA 6.0 Gbit/s Interface
- Low operational power profile, providing excellent power efficiency (W/TB) for better TCO
- 550 Total TB Transferred per Year Workload Rating
- 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
- Sanitize Instant Erase (SIE) option model available
Depth |
147 mm |
Device type |
HDD |
Drive device, buffer size |
256 MB |
Hard drive capacity |
12000 GB |
Hard drive interface |
Serial ATA |
Hard drive interface transfer rate |
6 Gbit/s |
Hard drive size |
3.5 " |
Hard drive speed |
7200 RPM |
Hard drive sustained transfer rate |
242 MiB/s |
Height |
26.1 mm |
Input voltage |
12 V |
Mean time between failures (MTBF) |
2500000 h |
Non-operating altitude |
-305 - 12192 m |
Non-operating shock |
250 g |
Non-operating vibration |
3 g |
Operating altitude |
-305 - 3048 m |
Operating relative humidity (H-H) |
5 - 90 % |
Operating shock |
70 g |
Operating temperature (T-T) |
5 - 55 °C |
Operating vibration |
0.75 G |
Power consumption (read) |
7.5 W |
Power consumption (typical) |
3.93 W |
Storage relative humidity (H-H) |
5 - 95 % |
Storage temperature (T-T) |
-40 - 70 °C |
Weight |
720 g |
Width |
101.85 mm |
Workload rate limit |
550 TB/year |
Specific References
- EAN13
- 4260557510520
Toshiba MG07ACA12TE Data Sheet
