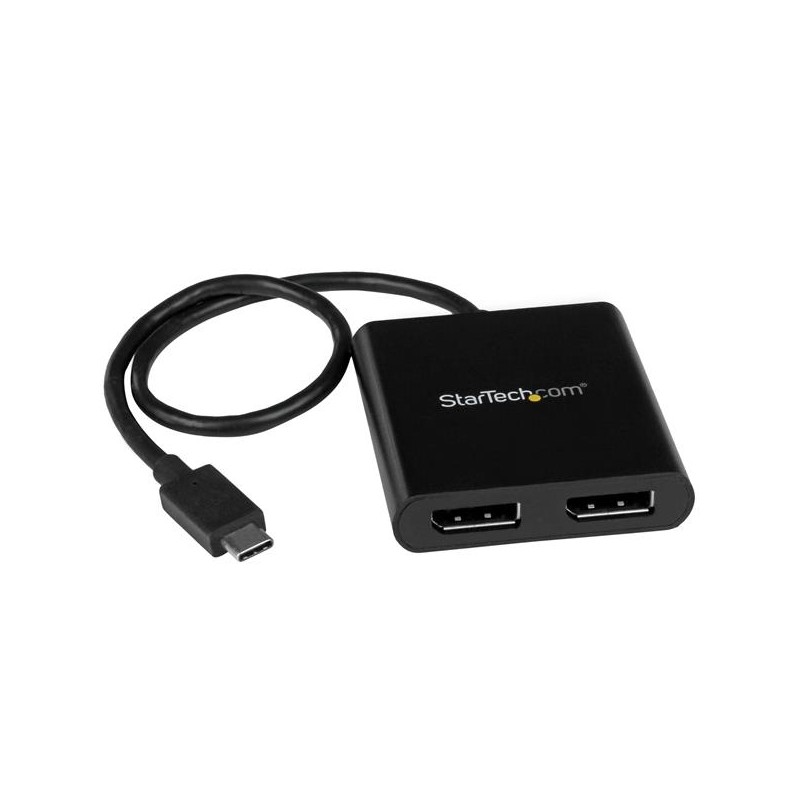

This MST hub lets you connect two DisplayPort monitors to your USB-C™ computer. MST works on any Windows® device with DP alt mode over USB Type-C™, such as models of Dell Precision™ and Dell XPS™ laptops. The MST hub is powered by the USB-C port, so you don't require an additional power adapter.



This adapter works with USB Type-C devices that pass a DisplayPort video signal and it’s also compatible with Thunderbolt™ 3 ports.



Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever. Unfortunately, this could mean that you’re left with fewer video outputs and confined to a small integrated screen. This MST hub solves these problems by letting you connect two independent displays to a USB-C port on your computer, which makes multitasking much easier.



Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. This makes it easier to multitask and increase your productivity -- perfect for creating an easy-to-dock hot-desk solution with a wireless keyboard and mouse peripheral set.



The hub also lets you mirror the same image onto multiple displays, for remote viewing applications such as digital signage.



Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and offers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and CAD drawing.



Works with any monitor, television or projector

With this MST hub, you can use separate DP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub supports DP 1.2 enabled systems, for seamless integration with your existing video equipment.



The MSTCDP122DP supports plug-and-play installation for a hassle-free setup and is backed by a StarTech.com 2-year warranty and free lifetime technical support.



Notes:

- Your USB-C equipped device must support video (DP alt mode) to work with this adapter.

- MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.



Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22%

1920x1200 @60hz - 30%

2560x1440 @60hz - 35%

2560x1600 @60hz - 38%

3840 x 2160 (Ultra HD 4K) @30hz - 38%



Exceeding 100% will reduce functionality.
Audio support Yes
Certification CE, FCC
Colour of product Black
Connector(s) USB-C
Dimensions (WxDxH) 58 x 62 x 14 mm
Maximum resolution 3840 x 2160 pixels
Operating relative humidity (H-H) 50 - 90 %
Operating temperature (T-T) 5 - 35 °C
Package height 30 mm
Package length 142 mm
Package weight 100 g
Package width 170 mm
Storage temperature (T-T) -20 - 60 °C
Supported graphics resolutions 1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160
USB powered Yes
User guide Yes
Video port type DisplayPort
Video ports quantity 2
Weight 44 g
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64

Specific References

EAN13
0065030864497

MSTCDP122DP.pdf

StarTech.com USB-C to DisplayPort Multi-Monitor Splitter - 2-Port MST Hub Data Sheet

StarTech.com USB-C to DisplayPort Multi-Monitor Splitter - 2-Port MST Hub

StarTech.com USB-C to DisplayPort Multi Monitor Splitter - USB Type-C 2-Port MST Hub - USB C to 2x DP Splitter - USB Type C to DP MST Hub
In Stock
£60.21
£50.18 Ex. VAT
Reference: MSTCDP122DP
Quantity
