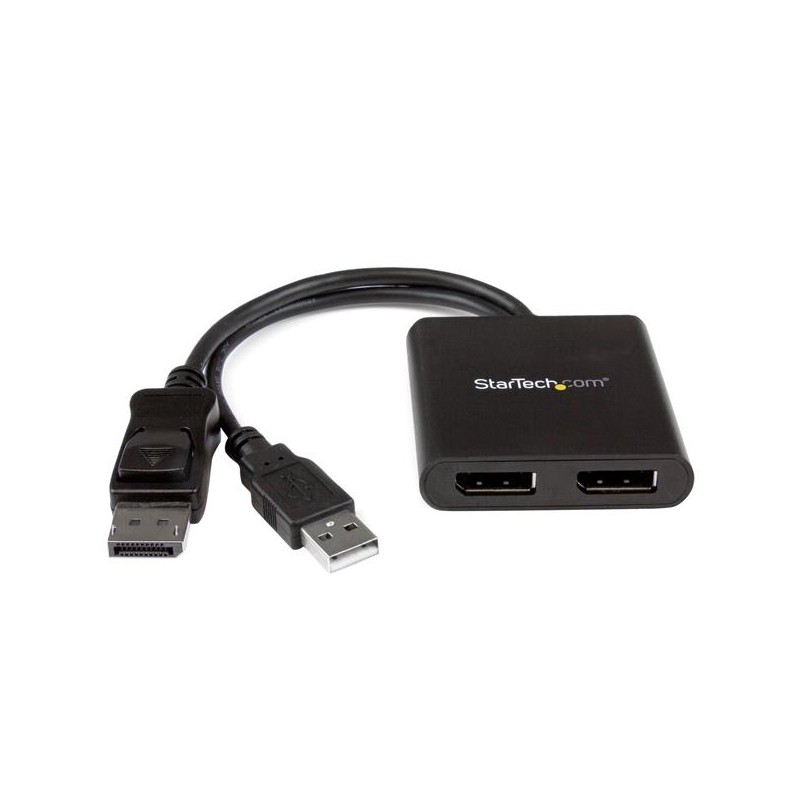

This MST hub lets you connect two monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop. It’s USB powered, so the only thing you'll need to operate the hub is your computer.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect two additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP122DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Certification |
CE, FCC, RoHS |
Colour of product |
Black |
Connector(s) |
DisplayPort |
Dimensions (WxDxH) |
58 x 62 x 14 mm |
Material |
Plastic |
Maximum resolution |
3840 x 2160 pixels |
Operating relative humidity (H-H) |
50 - 90 % |
Operating temperature (T-T) |
0 - 40 °C |
Package height |
30 mm |
Package length |
170 mm |
Package weight |
200 g |
Package width |
142 mm |
Plug and Play |
Yes |
Storage temperature (T-T) |
-20 - 60 °C |
Supported graphics resolutions |
1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |
USB powered |
Yes |
User guide |
Yes |
Video port type |
DisplayPort |
Video ports quantity |
2 |
Weight |
61 g |
Windows operating systems supported |
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
Specific References
- EAN13
- 5054629744499
StarTech.com DisplayPort to DisplayPort Multi-Monitor Splitter - 2-Port MST Hub Data Sheet
