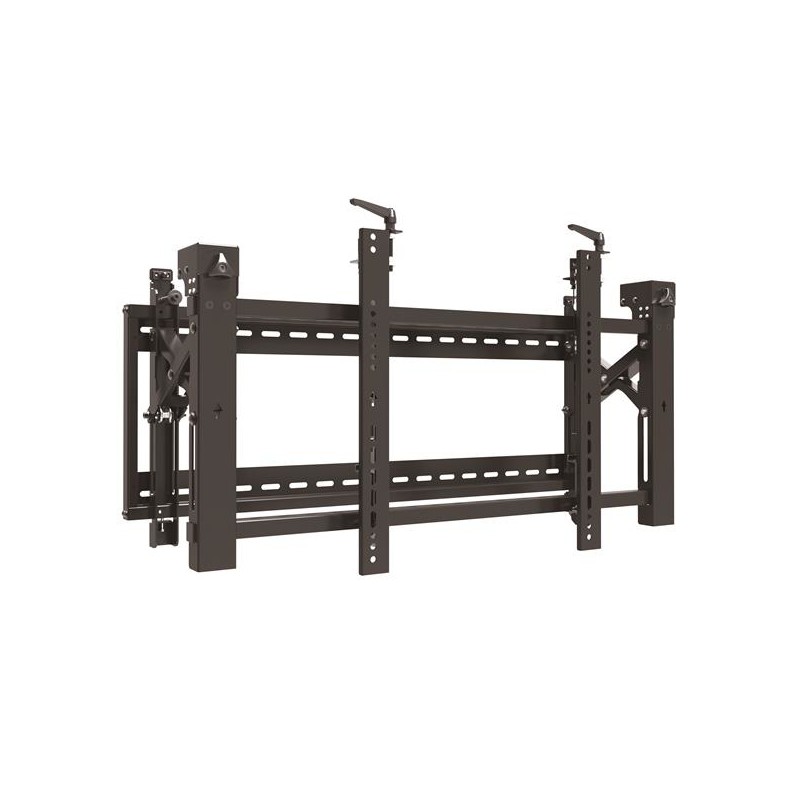

This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.
A versatile video wall mounting system
Engineered with heavy-duty steel, the video-wall mount securely supports 45” to 70” displays, weighing up to 154 lb. (70 kg).
Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It’s the ideal solution for public, business and commercial displays and includes an anti-theft feature (with padlock required).
Align your displays seamlessly
With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required.
The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle. You can tilt your display +3° / -5°, adjust the swivel angle +1.2° / - 1.2°, and rotate the display +3° / - 3°. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall.
Easy installation and maintenance
This video-wall mounting system is designed for easy set-up and maintenance. The pop-out design also assists in installation and maintenance, plus a convenient kickstand allows you to tilt the display up to 12° giving you extra room when adjusting cables or accessing ports.
The VIDWALLMNT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Colour of product |
Black |
Depth |
934 mm |
Distance to the wall (max) |
306 mm |
Distance to the wall (min) |
142 mm |
Height |
483 mm |
Manual |
Y |
Material |
Aluminium,Steel |
Maximum screen size compatibility |
70 " |
Minimum screen size compatibility |
45 " |
Number of displays supported |
1 |
Package depth |
1030 mm |
Package height |
200 mm |
Package weight |
16500 g |
Package width |
510 mm |
RoHS compliance |
Y |
Screws included |
Y |
Suitable for |
TV |
Swivel angle range |
-1.2 - 1.2 ° |
VESA mounting interfaces |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 mm |
Weight |
15700 g |
Width |
306 mm |
Wrench included |
Y |
Number of screws |
26 |
Minimum VESA mount |
200 x 200 mm |
Maximum VESA mount |
600 x 400 mm |
Wrench type |
Hexagonal wrench |
Tilt angle range |
-5 - 3 ° |
Anchors included |
Y |
Number of anchors included |
6 |
Washers included |
Y |
Number of washers included |
6 |
Spacer included |
Y |
Number of spacers included |
12 |
Accepts padlock |
Y |
Number of stoppers included |
2 |
Specific References
- EAN13
- 0065030870030
StarTech.com Video-Wall Mount - For 45” to 70” Displays - Anti-Theft - Heavy Duty Steel Data Sheet
