Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.

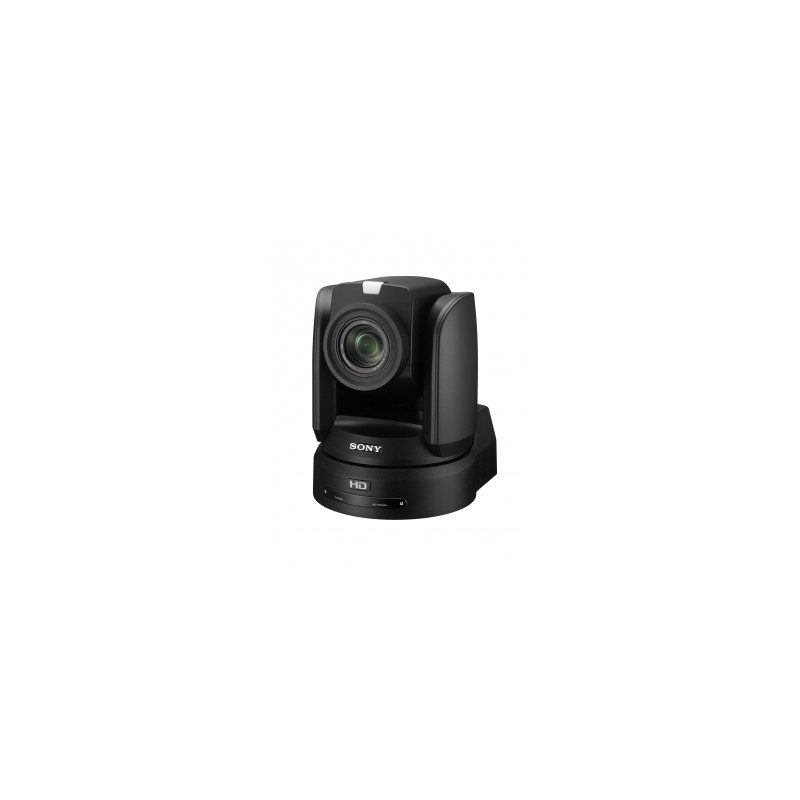

The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.
Automatic gain control |
Yes |
Camera shutter speed |
1/6 s |
Colour of product |
Black |
Day/night mode |
Yes |
Depth |
260 mm |
Ethernet LAN |
Yes |
Ethernet LAN (RJ-45) ports |
2 |
Focal length range (f-f) |
9.3 - 111.6 mm |
Focus |
Motorized/Manual |
Form factor |
dome |
Full HD |
Yes |
Handheld remote control |
Yes |
HDMI ports quantity |
2 |
Height |
238 mm |
Light exposure modes |
Aperture priority AE,Auto,Manual |
Minimum illumination |
1.7 lx |
Mounting kit |
Yes |
Mounting type |
Ceiling |
Networking standards |
IEEE 802.1Qaz |
Operating temperature (T-T) |
0 - 40 °C |
Optical zoom |
12 x |
Pan range |
-170 - 170 ° |
Pan speed |
60 °/sec |
Placement supported |
Indoor |
Power consumption (typical) |
19 W |
Power over Ethernet (PoE) |
Yes |
Remotely operated |
Yes |
RS-422 ports |
1 |
Screws included |
Yes |
Sensor type |
CMOS |
Storage temperature (T-T) |
-20 - 60 °C |
Tilt angle |
-30 - 90 ° |
Tilt speed |
60 °/sec |
Type |
IP security camera |
Viewing angle, horizontal |
64.6 ° |
Weight |
4300 g |
White balance |
Auto,Indoor,Manual,One push,Outdoor |
Width |
198 mm |
Power consumption (Power over Ethernet (PoE)) |
23 W |
Preset points |
Yes |
Number of cameras |
1 |
Flip & mirror |
Yes |
Gain control type |
Auto/Manual |
Preset programs quantity |
16 |
