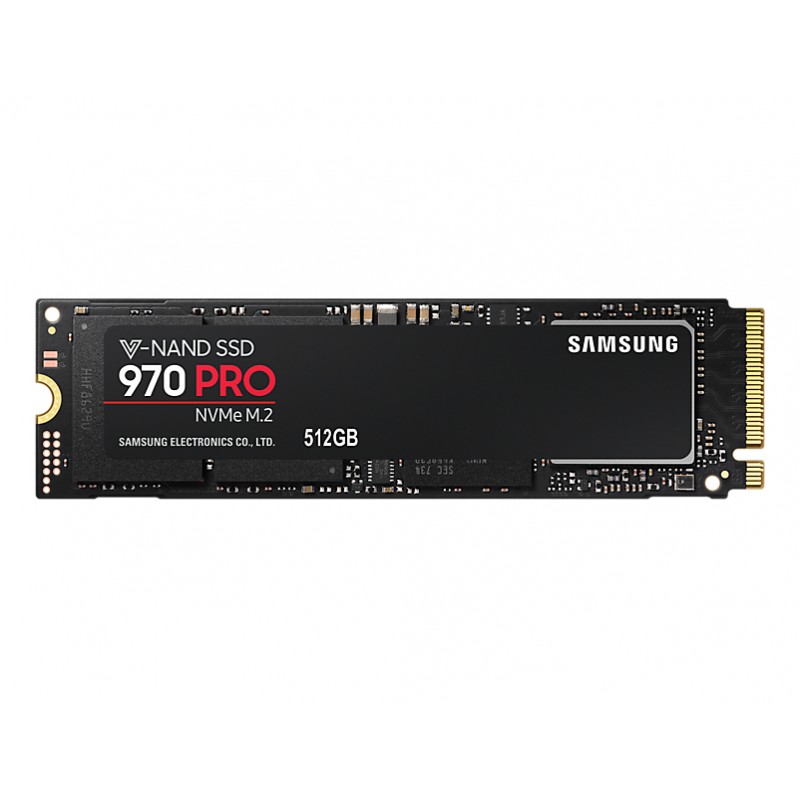

The SSD that goes beyond
Experience the best. For intensive workloads on PCs and workstations, the 970 PRO gives utmost performance enabled by Samsung†s NVMe SSD leadership. The latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor surpass the demands of tech enthusiasts and professionals.
Fearless Performance
Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3x4 NVMe interface with the latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds up to 3,500/2,700 MB/s*, approximately 30 percent faster than the previous generation.
Exceptional Endurance
Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW* with a 5-year limited warranty, achieving 50 percent greater endurance than the previous generation, all powered by the latest V-NAND technology.
Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 PRO enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
- Read/write speeds of 3500/2300 MB/S
- TBW-600 TB
- Dynamic Thermal Guard technolog
Component for |
PC |
Controller type |
Samsung Phoenix |
Depth |
2.38 mm |
Height |
22.15 mm |
Mean time between failures (MTBF) |
15000000 h |
Non-operating shock |
1500 g |
Non-operating vibration |
20 g |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
0 - 70 °C |
Operating voltage |
3.3 V |
PCI Express interface data lanes |
X4 |
Power consumption (read) |
5.2 W |
Power consumption (write) |
5.2 W |
Random read (4KB) |
370000 IOPS |
Random write (4KB) |
500000 IOPS |
Read speed |
3500 MB/s |
RoHS compliance |
Y |
Security algorithms |
256-bit AES |
Solid-state drive capacity |
512 GB |
Storage temperature (T-T) |
-45 - 85 °C |
TRIM support |
Y |
Width |
80.15 mm |
Write speed |
2300 MB/s |
S.M.A.R.T. support |
Y |
SSD form factor |
M.2 |
NVM Express (NVMe) supported |
Y |
NVM Express (NVMe) version |
1.3 |
Opal SSC 2.0 |
Y |
NAND flash type |
MLC (Multi Level Cell) |
Power consumption DevSlp (device sleep) |
5 mW |
Product colour |
Black |
TCG Opal 2.0 |
Y |
Specific References
- EAN13
- 8801643205355
Samsung MZ-V7P512 Data Sheet
