The M4300 Stackable L3 Managed Switch Series comes with 40G, 10G and 1G models in a variety of form factors including PoE+ full provisioning. M4300 Switch Series delivers IPv4/IPv6 rich services for mid-enterprise edge and SMB core with mixed stacking between 40-, 10- and 1-Gigabit models. Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing. M4300 is ideal for server aggregation, wireless access, unified communications and Video-over-IP.
| 10G support | Yes |
| Access Control List (ACL) | Y |
| Auto-sensing | Y |
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Broadcast storm control | Y |
| Built-in processor | Y |
| Console port | RJ-45/Mini-USB |
| Copper ethernet cabling technology | 10GBASE-T |
| Depth | 345 mm |
| Fiber ethernet cabling technology | 10GBase-X |
| Flash memory | 256 MB |
| Flow control support | Y |
| Form factor | 1U |
| Full duplex | Y |
| Heat dissipation | 330.6 BTU/h |
| Height | 44 mm |
| IGMP snooping | Y |
| Internal memory | 1024 MB |
| Jumbo frames support | Y |
| Latency (1 Gbps) | 2.333 µs |
| Latency (10 Gbps) | 1.323 µs |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| Mean time between failures (MTBF) | 968447 h |
| Multicast support | Y |
| Networking standards | IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3ba,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x |
| Noise level | 39.7 dB |
| Number of power supply units | 1 |
| Number of queues | 8 |
| Number of static routes | 64 |
| Number of VLANs | 4093 |
| Packet buffer memory | 32 MB |
| Physical stacking (units) | 8 |
| Port mirroring | Y |
| Power consumption (max) | 87.2 W |
| Power over Ethernet (PoE) | No |
| Power supply included | Y |
| Processor frequency | 800 MHz |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Routing protocols | OSPF,OSPFv3,RIP,RIP-1,RIP-2 |
| Spanning tree protocol | Y |
| Stackable | Yes |
| Store-and-forward | Y |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 480 Gbit/s |
| Throughput | 357 Mpps |
| USB 2.0 ports quantity | 1 |
| VLAN support | Y |
| Weight | 3560 g |
| Width | 212 mm |
| Jumbo frames | 9000 |
| Access Control List (ACL) rules | 64 |
| SFP+ module slots quantity | 24 |
| BPDU filtering/protection | Y |
| Static route | Y |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Product colour | Black,Grey |
| Policy-based routing | Y |
| Airflow direction | Front-to-back airflow |
| Virtual LAN features | MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| DHCP features | DHCP client,DHCP relay,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 snooping |
Specific References
- EAN13
- 606449142488

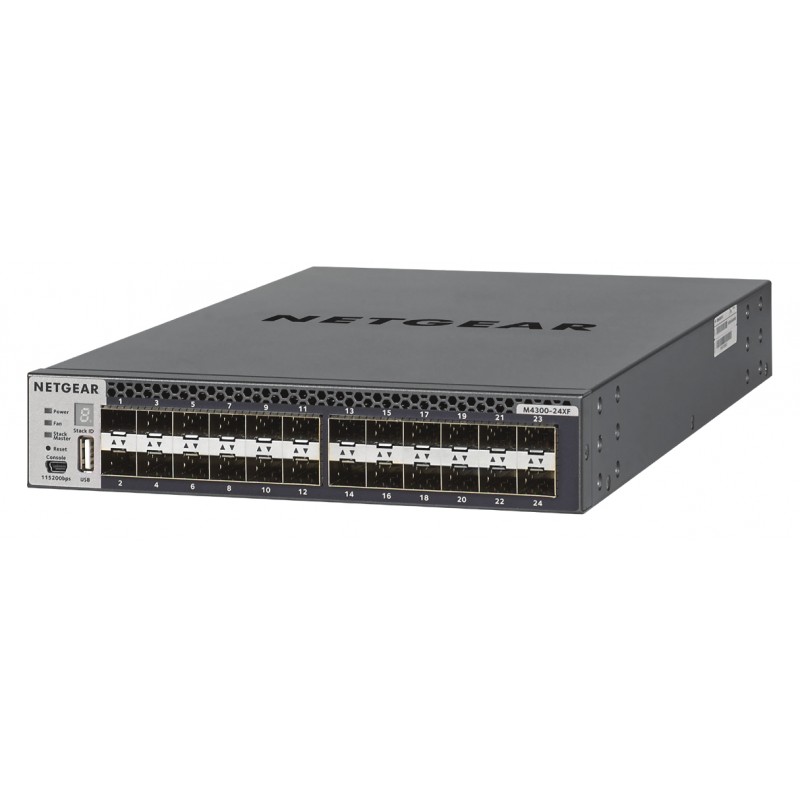

Netgear M4300-24XF
M4300-24XF, 480Gbps, 357 Mpps, 24x 10GBASE-X SFP+, 2x 10GBASE-T RJ-45, Mini-USB, RS-232, 212x44x345 mm
£2,921.96
£2,434.97 Ex. VAT
M4300-24XF, 480Gbps, 357 Mpps, 24x 10GBASE-X SFP+, 2x 10GBASE-T RJ-45, Mini-USB, RS-232, 212x44x345 mm
