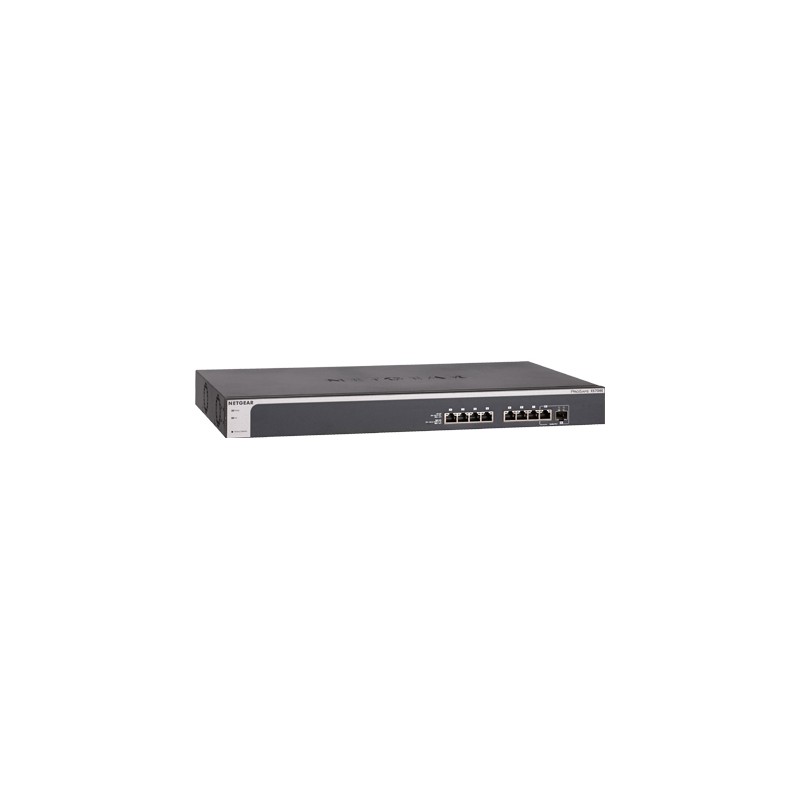

Netgear XS708E
  • Netgear XS708E
  • Netgear XS708E
  • Netgear XS708E
  • Netgear XS708E
  • Netgear XS708E
Industry’s First SMB Switch with 10-Gigabit Connectivity

NETGEAR is leading the networking industry with the market’s first cost-efficient 10-Gigabit Switch for small and medium businesses. The XS708E provides eight 10GE ports at a very affordable price compared to 10GE Enterprise switches in the marketplace. With the enormous growth of network traffic and network storage in recent years, 10GE is becoming a natural upgrade for many businesses in order to keep up with their network performance and business efficiency demands. This impacts not only the large enterprises, but for small and medium businesses as well since many SMBs are operating with big data even though the company size is small. NETGEAR recognizes the needs of a growing network for our SMB customers and has come up with the industry’s first cost-efficient 10GE solution.



The XS708E consists of eight 10GE copper ports and one combo 10GE Fiber SFP+ port. With 10GBASE-T, customers can use Cat6 or Cat7 copper cables with standard RJ45 Ethernet jacks that are already widely used in their current network. Network speeds can improve up to 10x going from traditional Gigabit to 10-Gigabit with minimal network changes and upgrades.



The XS708E belongs to the NETGEAR ProSAFE® Plus Switch Product family. On top of the plug-N-play 10-Gigabit Ethernet connectivity, it also offers some fundamental network features that will help optimize the performance of business networks such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), rate limiting and traffic monitoring. ProSAFE® Plus Switches are an upgrade from Unmanaged Switches, delivering great value and exceptional performance.



The XS708E 10-Gigabit ProSAFE® Plus Switch from NETGEAR is the ideal switch for SMBs considering simple and affordable 10GE connectivity into their 10GE-capable servers and storage devices.



- 8 ports deliver up to 10Gbps of dedicated, non-blocking bandwidth per port

- Simple, yet useful network set-up on top of plug-and-play connectivity

- VLAN support for traffic segmentation

- Quality of Service (QoS) for traffic prioritization

- Auto “denial-of-service” (DoS) prevention

- Troubleshoot connection issues via cable test

- Loop prevention and broadcast storm controls

- IGMP snooping for multicast optimization

- Rate limiting for better bandwidth allocation

- Port Trunking (Link Aggregation LAG)

- Port mirroring for network monitoring

- Jumbo frame support
10G supportYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Broadcast storm controlYes
Buffer size2000 KB
Cables includedAC
CertificationCE, FCC, EN 55022, VCCI, C-Tick, KC, CCC
Colour of productBlack
Console portRJ-45
Copper ethernet cabling technology10GBASE-T,100BASE-TX,1000BASE-T
DC-in jackYes
Depth207 mm
DHCP clientYes
Height43 mm
IGMP snoopingYes
Input current2.2 A
Jumbo frames supportYes
LED indicatorsYes
MAC address table32000 entries
Mean time between failures (MTBF)221813 h
Multicast supportYes
Networking standardsIEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3aq,IEEE 802.3u,IEEE 802.3z
Noise level34.7 dB
Number of multicast groups filtered128
Number of power supply units1
Number of VLANs64
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 50 °C
Port mirroringYes
Power consumption (typical)58.8 W
Power over Ethernet (PoE)No
Quality of Service (QoS) supportYes
Quick start guideYes
Rack mount kitYes
Rack mountingYes
SafetyUL/cUL 60950, CB, KC, CCC
Switch layerL2
Switch typeManaged
Ventilation fan(s)2
VLAN supportYes
Web-based managementYes
Weight3600 g
Width330 mm
SFP+ module slots quantity1
Resource CDYes

XS708E-200NES.pdf

Netgear XS708E Data Sheet

Download (945.55k)

Similar products

  • Netgear M4300-8X8F
    Netgear M4300-8X8F
  • Netgear M4300-12X12F
    Netgear M4300-12X12F
  • Netgear M4300-24X24F
    Netgear M4300-24X24F
  • Netgear XS748T
    Netgear XS748T
  • Netgear FS108
    Netgear FS108

Netgear XS708E

8x 10GBASE-T RJ-45, 1x SFP+, 58.8 Watts, 3.6 Kg, North America, Latin America and Europe

XS708E-200NES

Out of Stock

£549.33
£457.78 Ex VAT.
