Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
| 10G support | No |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Built-in processor | Y |
| Depth | 200 mm |
| Form factor | 1U |
| Full duplex | Y |
| Heat dissipation | 1046.05 BTU/h |
| Height | 43.2 mm |
| IGMP snooping | Y |
| Internal memory | 2048 MB |
| Jumbo frames support | Y |
| Latency (1 Gbps) | 2.14 µs |
| LED indicators | PoE,Power,Status |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| Mean time between failures (MTBF) | 947871 h |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x |
| Noise level | 39.22 dB |
| Non-operating altitude | 0 - 3000 m |
| Number of queues | 8 |
| Number of VLANs | 4093 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 16 MB |
| Power consumption (typical) | 306.4 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Processor frequency | 1250 MHz |
| Processor model | ARM Cortex-A9 |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 60 Gbit/s |
| Throughput | 44.64 Mpps |
| Total Power over Ethernet (PoE) budget | 240 W |
| VLAN support | Y |
| Weight | 2960 g |
| Width | 440 mm |
| Jumbo frames | 12000 |
| SFP+ module slots quantity | 2 |
| BPDU filtering/protection | Y |
| Loop protection | Y |
| Authentication | MAC-based authentication |
| Power over Ethernet (PoE) power per port | 30 W |
| Authentication type | RADIUS |
| Product colour | Black |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
| Virtual LAN features | MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| DHCP features | DHCP Option 82,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 server,DHCPv6 snooping |
Specific References
- EAN13
- 0606449149586

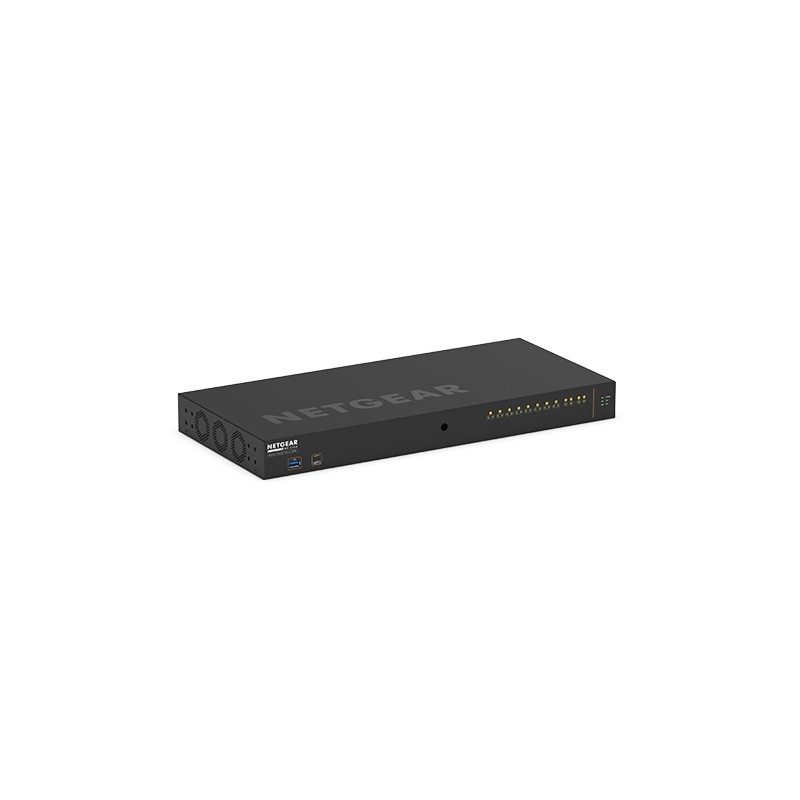

Netgear M4250-10G2XF-PoE+
60 Gbps, 8x 1G PoE+ RJ-45, 2x 1G RJ-45, 2x SFP+, 440x200x43.2 mm
£1,320.77
£1,100.64 Ex. VAT
60 Gbps, 8x 1G PoE+ RJ-45, 2x 1G RJ-45, 2x SFP+, 440x200x43.2 mm
