SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks
The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
Expanding Wired Connectivity for SOHO Networks
The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
| 10G support | Yes |
| Auto MDI/MDI-X | Y |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD |
| DC input voltage | 5 V |
| Depth | 94 mm |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Heat dissipation | 7.35 BTU/h |
| Height | 29 mm |
| Housing material | Metal |
| Input current | 0.7 A |
| Jumbo frames support | Y |
| Latency (1 Gbps) | 2.6 µs |
| LED indicators | Activity,Link,Power |
| MAC address table | 2000 entries |
| Mean time between failures (MTBF) | 3831422 h |
| Networking standards | IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 0.128 MB |
| Power consumption (max) | 2.15 W |
| Power over Ethernet (PoE) | No |
| Quality of Service (QoS) support | Y |
| Rack mounting | No |
| Stackable | No |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 10 Gbit/s |
| Wall mountable | Y |
| Weight | 250 g |
| Width | 101 mm |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Product colour | Black |
| Fanless | Y |
Specific References
- EAN13
- 0606449140101

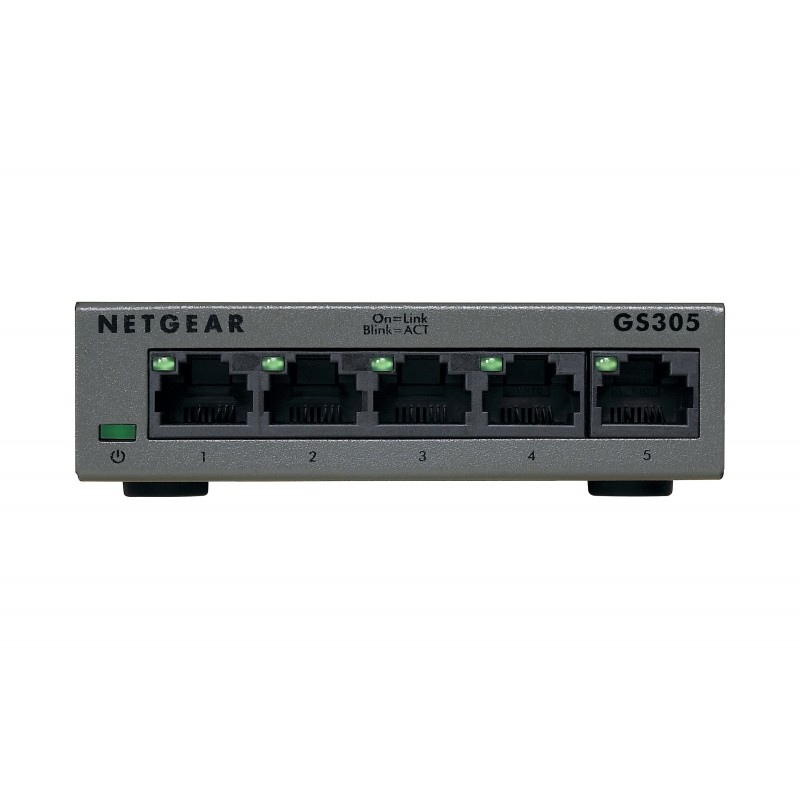

Netgear SOHO
5x 10/100/1000, RJ-45, DC 5 V, 0.7 A, 101 x 94 x 29 mm, 250 g
£25.44
£21.20 Ex. VAT
5x 10/100/1000, RJ-45, DC 5 V, 0.7 A, 101 x 94 x 29 mm, 250 g
