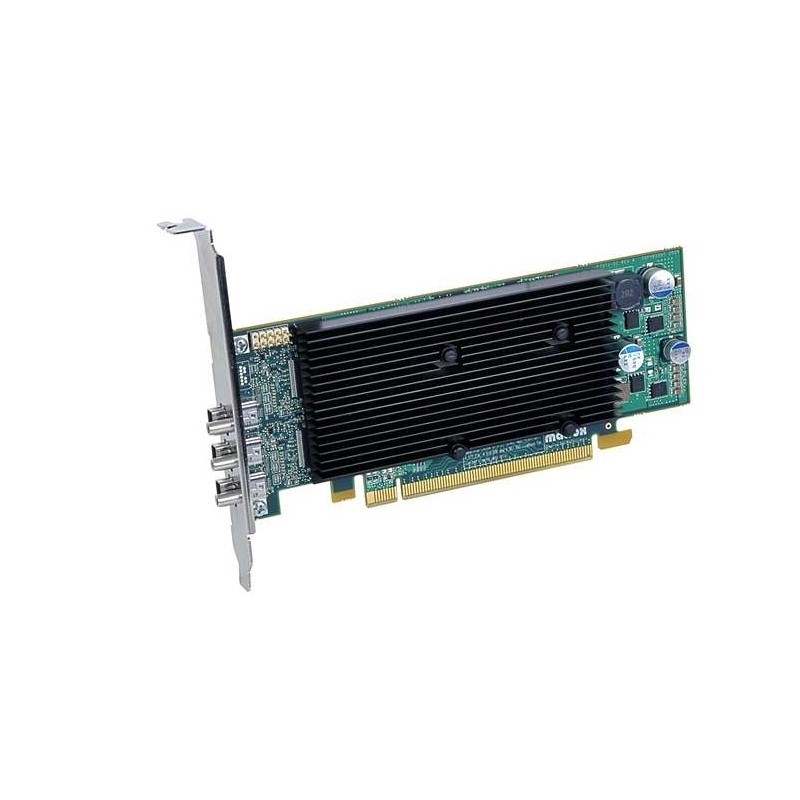

The Matrox M9138 LP PCIe x16 TripleHead graphics card renders pristine image quality on up to three DisplayPort monitors at resolutions up to 2560 x 1600 per output, for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, such as extending the Windows Taskbar to span multiple displays, the M9138 drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers optimal Windows Vista Aero support (WDDM mode) and can be paired with another M9138 graphics card to support up to six DisplayPort monitors from a single system.
# High-resolution three DisplayPort monitor support
Up to 2560 x 1600 per output
# Native PCI Express x16 performance
Maximum bandwidth to ensure best performance
# 1 GB of memory
For enhanced performance in demanding multi-monitor applications
# Low-profile form factor
To fit in a wide variety of systems; includes bracket for full-height ATX form factor
# Optimal support for Windows® Vista
Windows® Vista Aero (WDDM mode), Windows XP, Windows Server, and Linux
# Passive cooling and low power consumption
Fanless design eliminates noise and increases product reliability
# Joined graphics card mode
Insert two M-Series cards into the same system to drive even more monitors
# Wide enterprise flexibility
Unified driver package compatible with other Matrox products
# Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
Hardware Included
* Matrox M9138 LP PCie x16 graphics card
* LP bracket
* Three miniDP to DP adapters
Software Included
* Matrox display drivers for Microsoft Windows Vista and XP
(also available via download at www.matrox.com/graphics)
* Matrox PowerDesk desktop management software
Certification |
EMC Certifications: Class B\nROHS & WEEE compliant\n |
Compatible operating systems |
Microsoft Windows 7 (32/64bit)*, Microsoft Windows XP (32/64bit), Microsoft Windows Vista (32/64bit)*, Microsoft Windows Server 2003/2008\n(32/64bit), Linux\nsee Website for details |
Cooling type |
Passive |
Discrete graphics adapter memory |
1 GB |
DVI port |
No |
Form factor |
LP |
I/O ports |
On-board Connectors:\n3 x Mini DisplayPort\nAdapters (included):\n3 x Mini DisplayPort to DisplayPort |
Interface type |
PCI Express x16 |
Mac compatibility |
No |
Maximum displays per videocard |
3 |
Maximum resolution |
2560 x 1600 pixels |
Memory bus |
128 bit |
Number of processors installed |
1 |
Specific References
- EAN13
- 0790750240084
