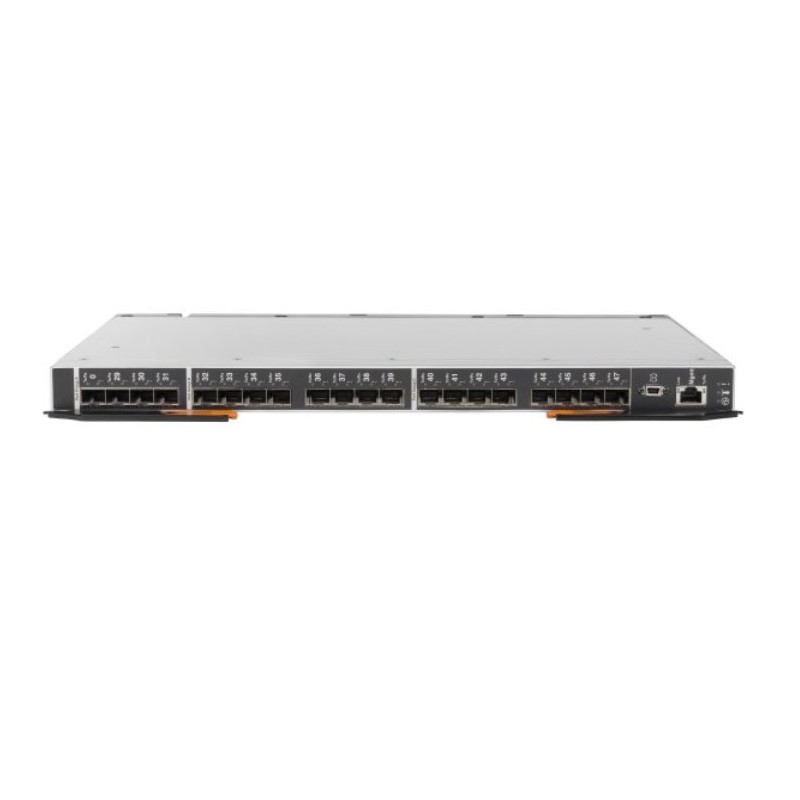

Lenovo FC5022

Flex System FC5022 16 Gb SAN Scalable Switch

More details

88Y6374

In Stock

The IBM Flex System™ FC5022 16Gb SAN Scalable Switch is a Gen 5 Fibre Channel (FC) high-density, 48-port switch that operates ... Read More

Free tester with every 5 boxes of cable

New product

£8,607.05 Inc. VAT

£7,172.54

Checkout

  • More Info

  • Details

The IBM Flex System™ FC5022 16Gb SAN Scalable Switch is a Gen 5 Fibre Channel (FC) high-density, 48-port switch that operates at 16 and 8 Gbps FC speeds and is used in the IBM Flex System chassis. The switch provides 28 internal ports to compute nodes by way of the Flex midplane and 20 external SFP+ ports, as shown in Figure 1. The FC5022 SAN switch module delivers a scalable embedded option for IBM Flex System users connecting to 8 or 16 Gbps FC storage, deploying a new storage area network (SAN) or connecting to an existing SAN in their enterprise. The switch offers end-to-end 16 Gb with backwards compatibility to 8 Gb and 4 Gb to the SAN connectivity. Monitoring and management are simplified using end-to-end Brocade tools, such as Web Tools and the Brocade Network Advisor (BNA).
10G supportNo
Basic switching RJ-45 Ethernet ports quantity2
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productBlack
Console portRS-232
Depth317 mm
Fiber optic connectorFC
Fiber ports quantity28
Full duplexYes
Height30 mm
LED indicatorsYes
Management protocolsSNMP v1
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)0 - 35 °C
Quick start guideYes
Security algorithmsSSH-2
SSH/SSL supportYes
StackableYes
Storage relative humidity (H-H)8 - 80 %
Storage temperature (T-T)5 - 45 °C
Switch typeManaged
Switching capacity16 Gbit/s
Weight3200 g
Width401 mm
SFP+ module slots quantity20
EAN0883436162111
ManufacturerLenovo
