Enterprise Private Cloud

Enhance performance with built-in capabilities that support your data center and cloud with intelligence, efficiency, security, and flexibility.



Big Data Analytics

The Intel® Xeon® processor E5 v3 family brings exceptional compute power and data throughput for rapid processing of large or complex data sets.



Technical Computing

Meet your most complex technical requirements with the fast, scalable high-performance computing power of the Intel® Xeon® processor E5 v3 family.



Server Products

The Intel® Xeon® processor family delivers versatile performance from public and private cloud to high-performance technical computing, and much more.
BoxN
Bus typeQPI
Cache memory15 MB
Component forserver/workstation
CPU configuration (max)2
Embedded options availableY
Enhanced Intel SpeedStep TechnologyY
Execute Disable BitY
Idle StatesY
Intel 64Y
Intel Demand Based SwitchingY
Intel Enhanced Halt StateY
Intel Flex Memory AccessN
Intel Trusted Execution TechnologyY
Intel TSX-NIN
Intel Virtualization Technology for Directed I/O (VT-d)Y
Intel VT-x with Extended Page Tables (EPT)Y
Maximum internal memory786432 MB
Maximum number of PCI Express lanes40
Number of QPI links2
On-board graphics adapterN
PCI Express configurationsx4, x8, x16
PCI Express slots version3.0
Physical Address Extension (PAE)46 bit
Processor cache15360 KB
Processor codeSR21P
Processor codenameHaswell
Processor cores6
Processor familyIntel Xeon E5 v3
Processor frequency2 GHz
Processor lithography22 nm
Processor modelE5-2608LV3
Processor operating modes64-bit
Processor socketLGA 2011-v3
Processor threads12
Product type4
Scalability2S
SteppingR2
Supported instruction setsAVX 2.0
System bus rate6.4 GT/s
Tcase88.84 °C
Thermal Design Power (TDP)52 W
Thermal Monitoring TechnologiesY
VID Voltage Range0.65 - 1.30 V
Processor cache typeSmart Cache
Maximum internal memory supported by processor768 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866 MHz
Memory bandwidth supported by processor (max)59 GB/s
Memory channels supported by processorQuad
ECC supported by processorY
Intel Virtualization Technology (VT-x)Y
Processor package size52.5 mm
Processor seriesIntel Xeon E5-2600 v3
Born on dateQ3'14
Bus bandwidth6.4
Bus type unitsGT/s
Launch date2014-09-08T00:00:00
Market segmentEMB
Product nameIntel Xeon E5-2608L v3 (15M Cache, 2.00 GHz)
StatusLaunched
Maximum memory768 GB
Processor brand nameIntel Xeon v2
Intel Identity Protection Technology version0.00
Intel Secure Key Technology version1.00
Intel TSX-NI version0.00
Processor core voltage0.65–1.30
Conflict Free processorN
Product familyIntel Xeon Processor E5 v3 Family
Intel® vPro™ TechnologyY
Intel® AES New Instructions (Intel® AES-NI)Y
Intel® Smart CacheY
Intel® Hyper Threading Technology (Intel® HT Technology)Y
Intel® Virtualization Technology (Intel® VT)VT-d,VT-x
Intel® Secure KeyY
Intel® OS GuardY
Intel® Turbo Boost TechnologyN
Processor ARK ID83350

CM8064402033500.pdf

Intel E5-2608LV3 Data Sheet

Download (1.42M)

Similar products

  • Intel Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1275 v3...
  • Intel Intel® Xeon® Processor E3-1280 v3 (8M Cache, 3.60 GHz)
    Intel Intel® Xeon® Processor E3-1280 v3...
  • Intel Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1270 v3...
  • Intel Intel® Xeon® Processor E3-1240 v3 (8M Cache, 3.40 GHz)
    Intel Intel® Xeon® Processor E3-1240 v3...
  • Intel Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)
    Intel Intel® Xeon® Processor E3-1230 v3...

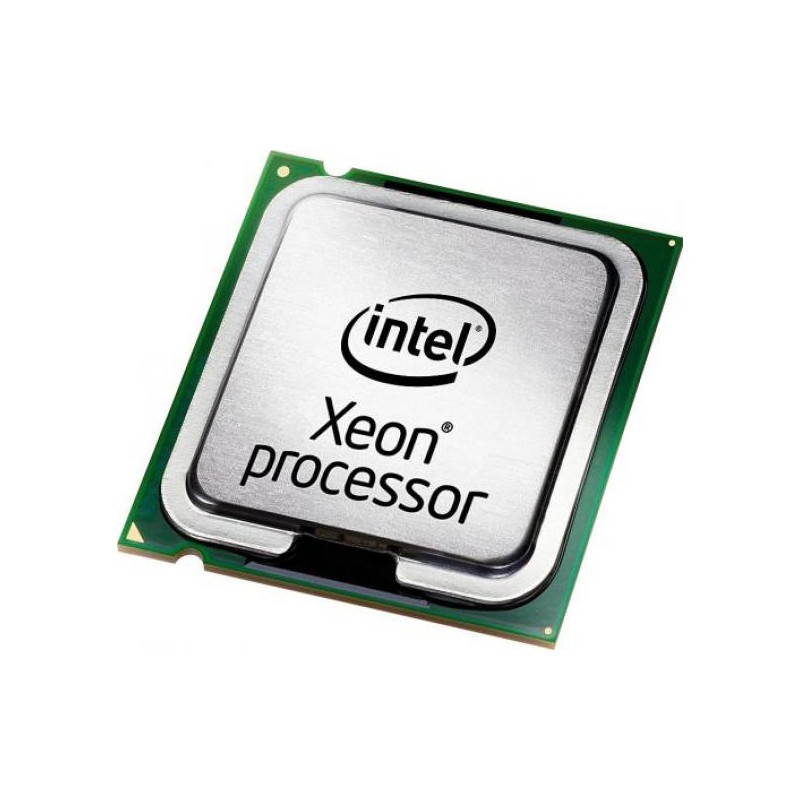

Intel E5-2608LV3

Intel® Xeon® Processor E5-2608L v3
(15M Cache, 2.00 GHz)

CM8064402033500

Out of Stock

£422.31
£351.92 Ex VAT.
