| Box | N |
| Bus type | QPI |
| Cache memory | 30 MB |
| Component for | server/workstation |
| CPU configuration (max) | 2 |
| Embedded options available | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Execute Disable Bit | Y |
| Idle States | Y |
| Intel 64 | Y |
| Intel Demand Based Switching | Y |
| Intel Enhanced Halt State | Y |
| Intel Flex Memory Access | N |
| Intel Trusted Execution Technology | Y |
| Intel TSX-NI | N |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Maximum internal memory | 786432 MB |
| Maximum number of PCI Express lanes | 40 |
| Number of QPI links | 2 |
| On-board graphics adapter | N |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | 46 bit |
| Processor boost frequency | 2.9 GHz |
| Processor cache | 30720 KB |
| Processor code | SR1XV |
| Processor codename | Crystal Well |
| Processor cores | 12 |
| Processor family | Intel Xeon E5 v3 |
| Processor frequency | 2.2 GHz |
| Processor lithography | 22 nm |
| Processor model | E5-2658V3 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 2011-v3 |
| Processor threads | 24 |
| Product type | 4 |
| Scalability | 2S |
| Stepping | M1 |
| Supported instruction sets | AVX 2.0 |
| System bus rate | 9.6 GT/s |
| Tcase | 86.95 °C |
| Thermal Design Power (TDP) | 105 W |
| Thermal Monitoring Technologies | Y |
| VID Voltage Range | 0.65 - 1.30 V |
| Processor cache type | Smart Cache |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Memory channels supported by processor | Quad |
| ECC supported by processor | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor package size | 52.5 mm |
| Processor series | Intel Xeon E5-2600 v3 |
| Born on date | Q3'14 |
| Bus bandwidth | 9.6 |
| Bus type units | GT/s |
| Launch date | 2014-09-08T00:00:00 |
| Market segment | EMB |
| Product name | Intel Xeon E5-2658 v3 (30M Cache, 2.20 GHz) |
| Status | Launched |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon v2 |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Processor core voltage | 0.65–1.30 |
| Conflict Free processor | N |
| Product family | Intel Xeon Processor E5 v3 Family |
| Intel® vPro™ Technology | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Intel® Smart Cache | Y |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
| Intel® Identity Protection Technology (Intel® IPT) | N |
| Intel® Virtualization Technology (Intel® VT) | VT-d,VT-x |
| Intel® Secure Key | Y |
| Intel® OS Guard | Y |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 81905 |
Specific References
- EAN13
- 0675901287173

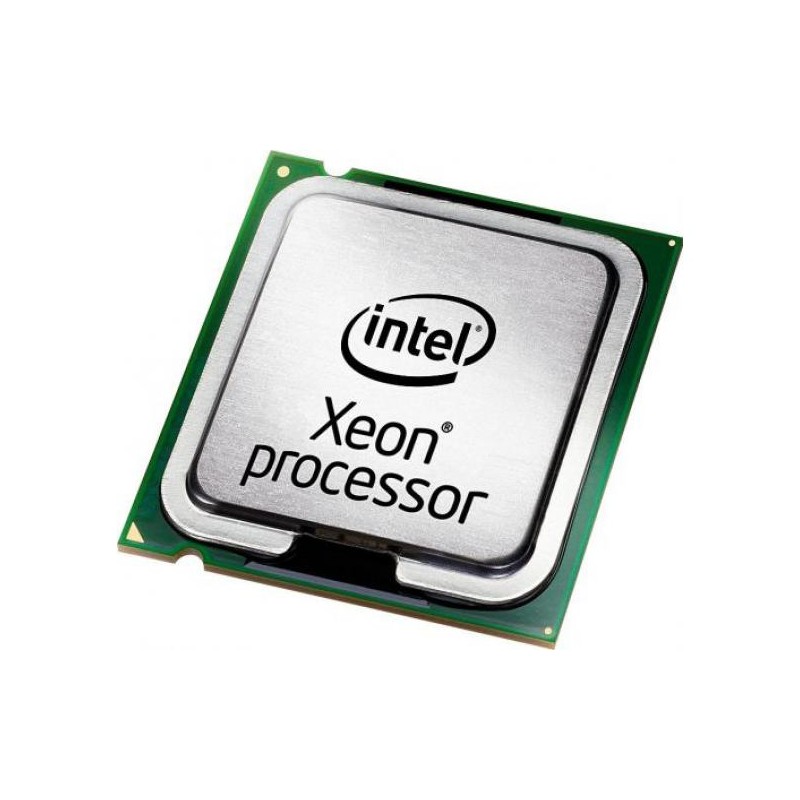

Intel E5-2658V3
Intel® Xeon® Processor E5-2658 v3
(30M Cache, 2.20 GHz)
(30M Cache, 2.20 GHz)
£1,626.00
£1,355.00 Ex. VAT
