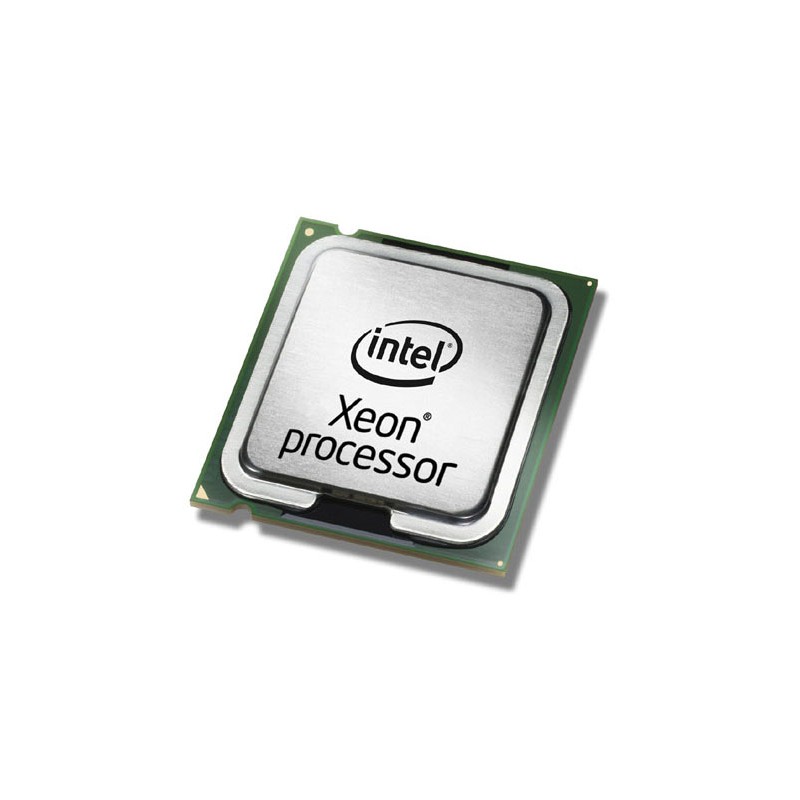

Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz)
  • Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz)
  • Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz)
  • Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz)
  • Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz)
  • Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz)
  • Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz)
  • Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz)
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.



Performance

Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.



Optimized for Orchestration

Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.



Enhanced Security

Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
BoxN
Bus typeQPI
CompatibilityIntel Server System R1208WT2GSR\nIntel Server System R1208WTTGSR\nIntel Server System R1304WT2GSR\nIntel Server System R1304WTTGSR\nIntel Server System R2208WTTYSR\nIntel Server System R2208WT2YSR\nIntel Server System R2208WTTYC1R\nIntel Server System R23
Component forserver/workstation
CPU configuration (max)2
Embedded options availableY
Enhanced Intel SpeedStep TechnologyY
Execute Disable BitY
Idle StatesY
Intel 64Y
Intel Demand Based SwitchingY
Intel Enhanced Halt StateY
Intel Flex Memory AccessN
Intel Trusted Execution TechnologyY
Intel TSX-NIY
Intel Virtualization Technology for Directed I/O (VT-d)Y
Intel VT-x with Extended Page Tables (EPT)Y
Maximum internal memory1572864 MB
Maximum number of PCI Express lanes40
Number of QPI links2
PCI Express slots version3.0
Physical Address Extension (PAE)46 bit
Processor boost frequency3.2 GHz
Processor cache25600 KB
Processor codeSR2PE
Processor codenameBroadwell
Processor cores10
Processor familyIntel Xeon E5 v4
Processor frequency2.2 GHz
Processor lithography14 nm
Processor modelE5-2618LV4
Processor operating modes64-bit
Processor socketLGA 2011-v3
Processor threads20
Product type4
Scalability2S
SteppingR0
Supported instruction setsAVX 2.0
System bus rate8 GT/s
Tcase87 °C
Thermal Design Power (TDP)75 W
Thermal Monitoring TechnologiesY
VID Voltage Range0 - 0 V
Processor cache typeSmart Cache
Maximum internal memory supported by processor1536 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866,2133 MHz
Memory bandwidth supported by processor (max)68.3 GB/s
Memory channels supported by processorQuad
ECC supported by processorY
Intel Virtualization Technology (VT-x)Y
Processor package size52.5 x 51 mm
Processor seriesIntel Xeon E5-2600 v4
StatusLaunched
Conflict Free processorY
Product familyIntel Xeon Processor E5 v4 Family
Intel® vPro™ TechnologyY
Intel® AES New Instructions (Intel® AES-NI)Y
Intel® Hyper Threading Technology (Intel® HT Technology)Y
Intel® Identity Protection Technology (Intel® IPT)N
Intel® Secure KeyY
Intel® OS GuardY
Intel® Turbo Boost Technology2.0
Processor ARK ID92982

CM8066002061300.pdf

Intel Intel® Xeon® Processor E5-2618L v4 (25M Cache, 2.20 GHz) Data Sheet

Download (688.79k)
