Intel® vPro Technology
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
| Box | No |
| Bus type | DMI3 |
| Compatibility | Server Board S1200SPLR\nServer Board S1200SPOR\nServer Board S1200SPSR\nServer System R1304SPOSHBNR\nServer System R1304SPOSHORR\nServer System R1208SPOSHORR |
| Component for | server/workstation |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Maximum internal memory | 65536 MB |
| Maximum number of PCI Express lanes | 16 |
| On-board graphics adapter | No |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| PCI Express slots version | 3.0 |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 8192 KB |
| Processor code | SR328 |
| Processor codename | Kaby Lake |
| Processor cores | 4 |
| Processor family | Intel Xeon E3 v6 |
| Processor frequency | 3.50 GHz |
| Processor lithography | 14 nm |
| Processor model | E3-1230 v6 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 8 |
| Product type | 4 |
| Scalability | 1S |
| Stepping | B0 |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| System bus rate | 8 GT/s |
| Thermal Design Power (TDP) | 72 W |
| Thermal Monitoring Technologies | Yes |
| VID Voltage Range | 0.55 - 1.52 V |
| Processor cache type | Smart Cache |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Clear Video Technology | No |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v6 |
| Status | Launched |
| On-board graphics adapter 4K support | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Conflict Free processor | Yes |
| Product family | Intel Xeon Processor E3 v6 Family |
| Intel® vPro™ Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | No |
| Processor ARK ID | 97474 |
| Intel® InTru™ 3D Technology | No |
Specific References
- EAN13
- 0675901427609

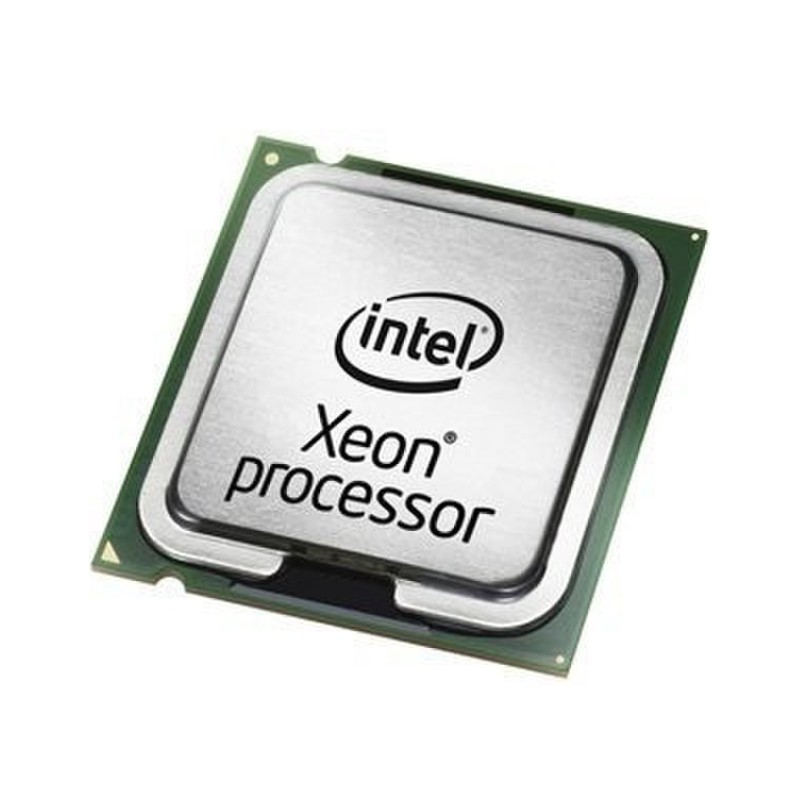

Intel Intel® Xeon® Processor E3-1230 v6 (8M Cache, 3.50 GHz)
Intel® Xeon® Processor E3-1230 v6
(8M Cache, 3.50 GHz)
(8M Cache, 3.50 GHz)
£285.39
£237.83 Ex. VAT
