Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.



Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.



Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Box Yes
Bus type DMI3
Component for server/workstation
CPU configuration (max) 1
Embedded options available No
Enhanced Intel SpeedStep Technology Yes
Execute Disable Bit Yes
Idle States Yes
Intel 64 Yes
Intel Enhanced Halt State Yes
Intel Trusted Execution Technology Yes
Intel TSX-NI Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Maximum number of PCI Express lanes 16
On-board graphics adapter No
PCI Express configurations 1x16,1x8+2x4,2x8
PCI Express slots version 3.0
Processor boost frequency 3.5 GHz
Processor cache 8 MB
Processor codename Kaby Lake
Processor cores 4
Processor family Intel Xeon E3 v6
Processor frequency 3 GHz
Processor lithography 14 nm
Processor model E3-1220 v6
Processor operating modes 64-bit
Processor socket LGA 1151 (Socket H4)
Processor threads 4
Scalability 1S
Supported instruction sets AVX 2.0,SSE4.1,SSE4.2
System bus rate 8 GT/s
Thermal Design Power (TDP) 72 W
Thermal Monitoring Technologies Yes
VID Voltage Range 0.55 - 1.52 V
Processor cache type Smart Cache
Maximum internal memory supported by processor 64 GB
Memory types supported by processor DDR3L,DDR4-SDRAM
Memory clock speeds supported by processor 1866,2133 MHz
Memory bandwidth supported by processor (max) 37.5 GB/s
Memory channels supported by processor Dual
ECC supported by processor Yes
Intel Virtualization Technology (VT-x) Yes
Intel Clear Video Technology No
Processor package size 37.5 x 37.5 mm
Intel Software Guard Extensions (Intel SGX) Yes
Conflict Free processor Yes
Intel® vPro™ Technology Yes
Intel® Clear Video HD Technology (Intel® CVT HD) No
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) No
Intel® Hyper Threading Technology (Intel® HT Technology) No
Intel® Secure Key Yes
Intel® OS Guard Yes
Intel® Turbo Boost Technology 2.0
Intel® Quick Sync Video Technology No
Processor ARK ID 97470
Intel® InTru™ 3D Technology No
Cooler included No

Specific References

EAN13
5032037094542

Intel E3-1220V6

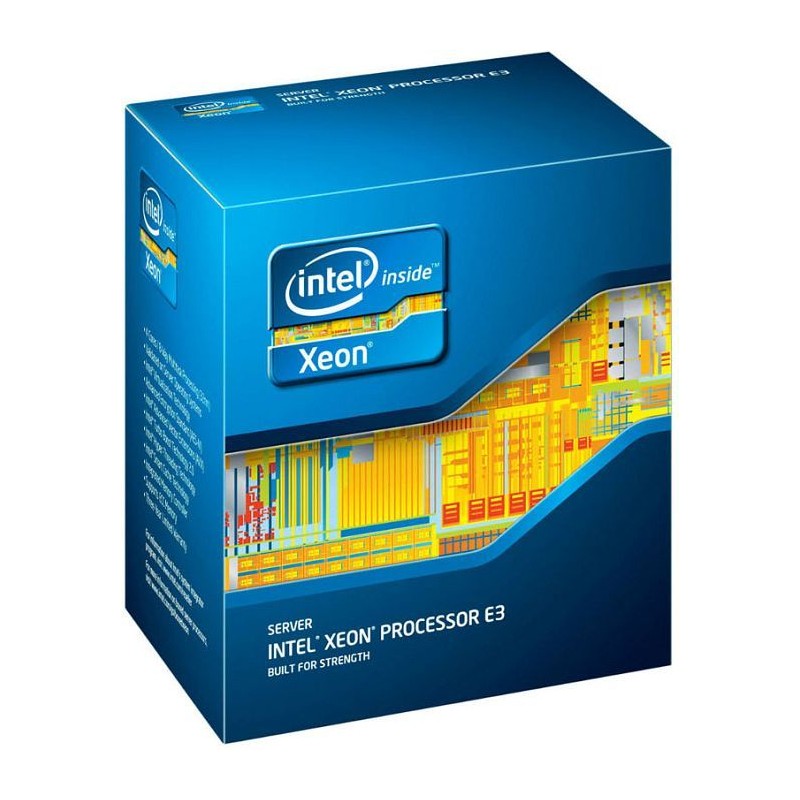

Xeon Processor E3-1220 v6 (8M Cache, 3.00 GHz)
Out of Stock
£189.19
Tax excluded
Reference: BX80677E31220V6
