Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
  • Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
  • Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
  • Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
  • Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
  • Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
  • Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
  • Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
  • Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)
Intel Inside®. Responsive Digital Services Outside.

The Intel® Xeon® processor E5 v4 family brings an evolutionary leap in performance and capabilities to your next-gen data center running on software defined infrastructure, supporting an agile cloud architecture and a highly-efficient traditional workload management.



The Intel® Xeon® processor E5-1600 v4 product family provides a professional, high-performance workstation platform ideal for efficient multitasking, advanced model generation, and complex applications.



Performance

Built on 14 nm process technology, the Intel® Xeon® processor E5-2600 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.



Optimized for Orchestration

Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.



Enhanced Security

Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.



Build Your Agile Enterprise with Intel

Intel® Resource Director Technology

Use orchestration and automation features within Intel® RDT to help you better manage shared platform resources dynamically across compute, network, and storage.



Intel® Transactional Synchronization Extensions

Boost performance for online transaction processing (OLTP) and other multi-threaded workloads that are currently slowed by memory locking with Intel® TSX.



Intel® Advanced Vector Extensions 2

Implement Intel® Advanced Vector Extensions 2 (Intel® AVX2) to optimize overall performance for heterogeneous workloads running concurrently, even for applications that don’t use Intel AVX.



Innovative Technology for Diverse Applications and Workloads

Enterprise Cloud

Accelerate your path to a highly efficient, on-premises cloud deployment with innovation based on Intel® architecture.



Software-Defined Infrastructure (SDI)

Use proven, reliable, and innovative Intel technology as the foundation for software-defined infrastructure across your data center.



A Holistic HPC Solution

Fuel your insight with future-ready performance from the Intel® Scalable System Framework (SSF).



High-Performance Computing

Get the performance you need for creating balanced, high-performance computing systems at any scale.
Bus typeQPI
Component forserver/workstation
CPU configuration (max)1
Maximum internal memory1572864 MB
Maximum number of PCI Express lanes40
PCI Express configurations1x16,1x4,1x8
PCI Express slots version3.0
Physical Address Extension (PAE)46 bit
Processor boost frequency4.00 GHz
Processor cache10240 KB
Processor codeSR2PF
Processor codenameBroadwell
Processor cores4
Processor familyIntel Xeon E5 v4
Processor frequency3.70 GHz
Processor lithography14 nm
Processor modelE5-1630V4
Processor operating modes64-bit
Processor socketLGA 2011-v3
Processor threads8
Product type4
Scalability1S
SteppingR0
Supported instruction setsAVX 2.0
Tcase69 °C
Thermal Design Power (TDP)140 W
Processor cache typeSmart Cache
Maximum internal memory supported by processor1536 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)76.8 GB/s
Memory channels supported by processorQuad
Processor package size45 x 52.5 mm
Processor seriesIntel Xeon E5-1600 v4
StatusLaunched
Product familyIntel Xeon Processor E5 v4 Family
Intel® Turbo Boost Technology2.0
Processor ARK ID92987

Similar products

  • Intel Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1275 v3...
  • Intel Intel® Xeon® Processor E3-1280 v3 (8M Cache, 3.60 GHz)
    Intel Intel® Xeon® Processor E3-1280 v3...
  • Intel Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1270 v3...
  • Intel Intel® Xeon® Processor E3-1240 v3 (8M Cache, 3.40 GHz)
    Intel Intel® Xeon® Processor E3-1240 v3...
  • Intel Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)
    Intel Intel® Xeon® Processor E3-1230 v3...

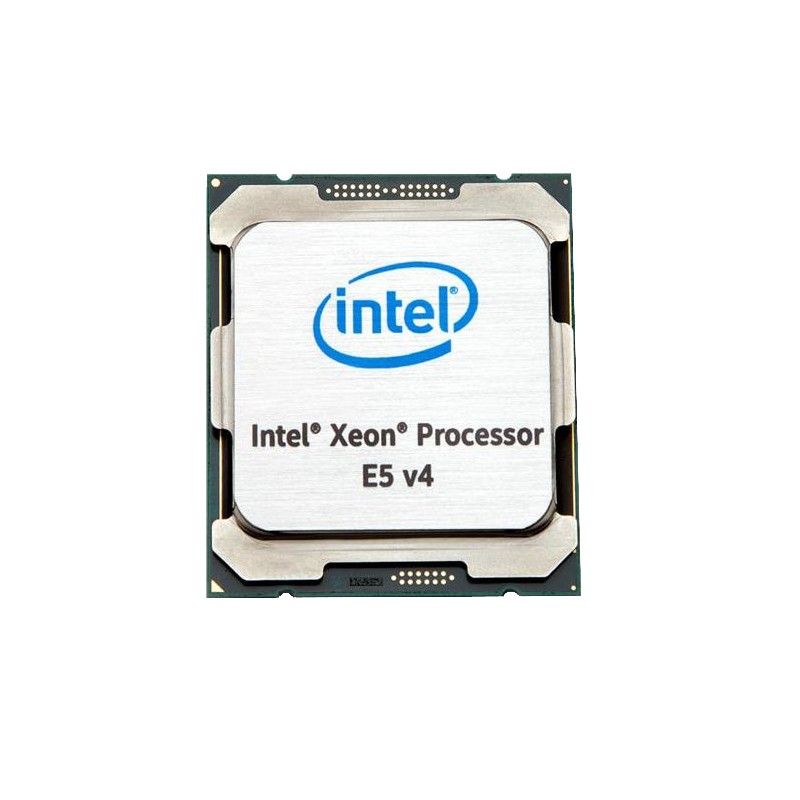

Intel Intel® Xeon® Processor E5-1630 v4 (10M Cache, 3.70 GHz)

Intel® Xeon® Processor E5-1630 v4
(10M Cache, 3.70 GHz)

CM8066002395300

Out of Stock

£472.15
£393.46 Ex VAT.
