Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)
  • Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)
  • Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)
  • Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)
  • Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)
  • Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)
  • Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)
  • Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.



Performance

Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.



Optimized for Orchestration

Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.



Enhanced Security

Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
Bus typeQPI
CompatibilityIntel Server System R1208WT2GSR\nIntel Server System R1208WTTGSR\nIntel Server System R1304WT2GSR\nIntel Server System R1304WTTGSR\nIntel Server System R2208WTTYSR\nIntel Server System R2208WT2YSR\nIntel Server System R2208WTTYC1R\nIntel Server System R23
Component forserver/workstation
CPU configuration (max)2
Maximum internal memory1572864 MB
Maximum number of PCI Express lanes40
Number of QPI links2
PCI Express slots version3.0
Physical Address Extension (PAE)46 bit
Processor boost frequency3.7 GHz
Processor cache20480 KB
Processor codeSR2P4
Processor codenameBroadwell
Processor cores6
Processor familyIntel Xeon E5 v4
Processor frequency3.4 GHz
Processor lithography14 nm
Processor modelE5-2643V4
Processor operating modes64-bit
Processor socketLGA 2011-v3
Processor threads12
Product type4
Scalability2S
SteppingR0
Supported instruction setsAVX 2.0
System bus rate9.6 GT/s
Tcase75 °C
Thermal Design Power (TDP)135 W
VID Voltage Range0 - 0 V
Processor cache typeSmart Cache
Maximum internal memory supported by processor1536 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)76.8 GB/s
Memory channels supported by processorQuad
Processor package size52.5 x 51 mm
Processor seriesIntel Xeon E5-2600 v4
StatusLaunched
Product familyIntel Xeon Processor E5 v4 Family
Intel® Turbo Boost Technology2.0
Processor ARK ID92989

CM8066002041500.pdf

Intel E5-2643V4 Data Sheet

Download (688.79k)

Similar products

  • Intel Intel® Xeon® Processor E3-1275 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1275 v3...
  • Intel Intel® Xeon® Processor E3-1280 v3 (8M Cache, 3.60 GHz)
    Intel Intel® Xeon® Processor E3-1280 v3...
  • Intel Intel® Xeon® Processor E3-1270 v3 (8M Cache, 3.50 GHz)
    Intel Intel® Xeon® Processor E3-1270 v3...
  • Intel Intel® Xeon® Processor E3-1240 v3 (8M Cache, 3.40 GHz)
    Intel Intel® Xeon® Processor E3-1240 v3...
  • Intel Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.30 GHz)
    Intel Intel® Xeon® Processor E3-1230 v3...

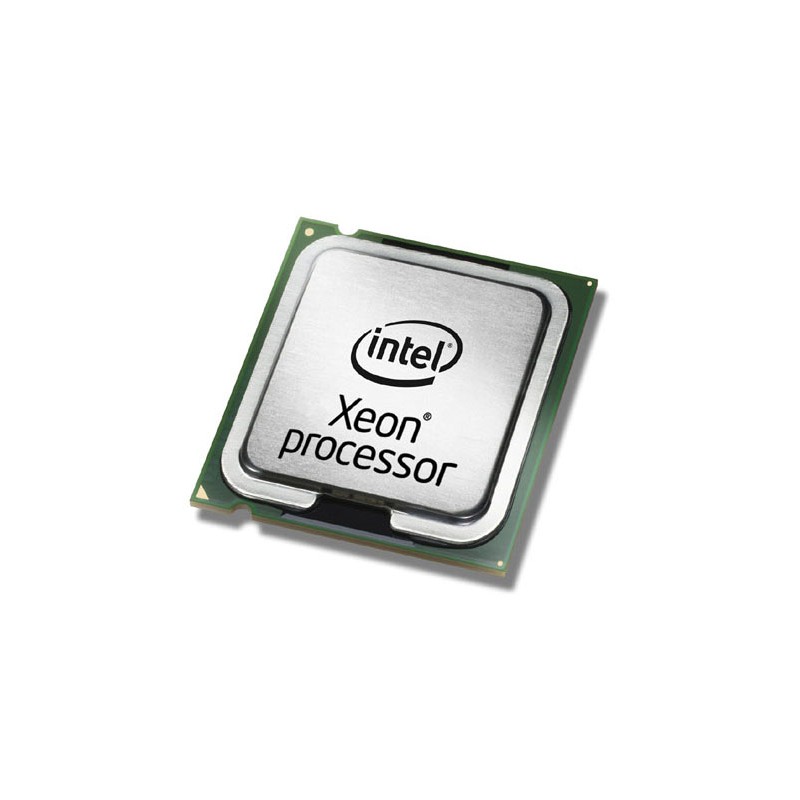

Intel Intel® Xeon® Processor E5-2643 v4 (20M Cache, 3.40 GHz)

Intel® Xeon® Processor E5-2643 v4
(20M Cache, 3.40 GHz)

CM8066002041500

Out of Stock

£1,804.52
£1,503.77 Ex VAT.
