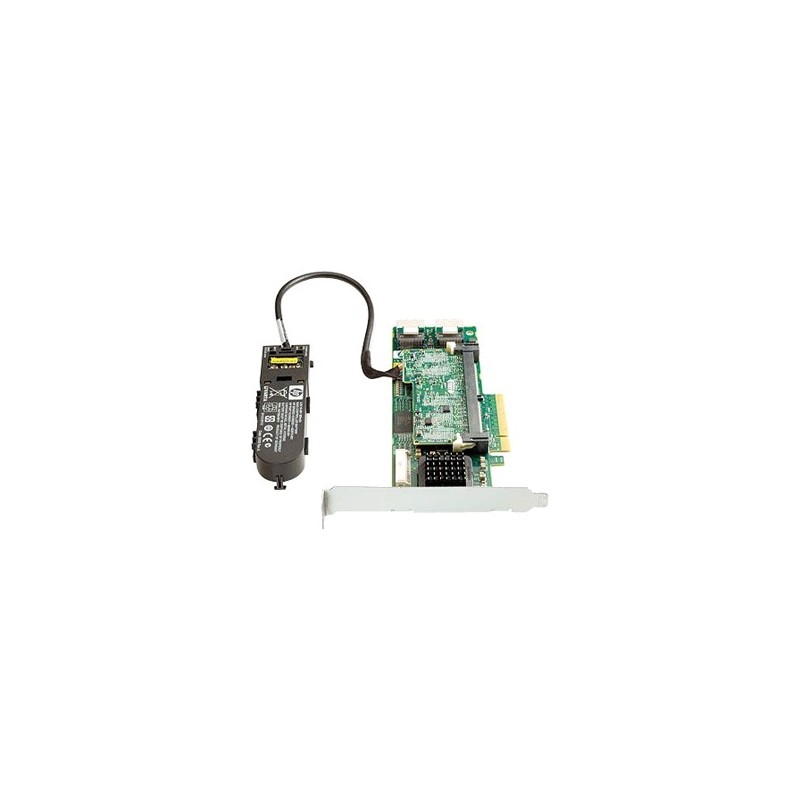

The HP Smart Array P410 is HP's PCI Express 2.0 (PCIe) Serial Attached SCSI (SAS) RAID controller. The low profile, half height card has 8 ports and utilizes DDR2-800 memory. The P410 is ideal for RAID 0/1, 1 0, 5 0 and can be upgraded with the 512MB battery-backed write cache (BBWC) module and Smart Array Advanced via license key for RAID 6 &, 6 0.
- 6G SAS and 3G SATA support. RAID 50 and 60. Improved battery life (48 hours). SATA NCQ for all controllers. Additional Features via Software upgrade – Smart Array Advance Pack (SAAP).
- Standard RAID 0,1, 1+0, 5, 5+0. RAID 6, 6+0 support with BBWC and Smart Array Advanced Pack (SAAP) license key.
- Supports SAS and SATA disk drives.
- Online Drive Flash. Remote monitoring and configuration. Mirror Splitting and recombining.
- 6G SAS and 3G SATA support. RAID 50 and 60. Improved battery life (48 hours). SATA NCQ for all controllers. Additional Features via Software upgrade – Smart Array Advance Pack (SAAP).
- Standard RAID 0,1, 1+0, 5, 5+0. RAID 6, 6+0 support with BBWC and Smart Array Advanced Pack (SAAP) license key.
- Supports SAS and SATA disk drives.
- Online Drive Flash. Remote monitoring and configuration. Mirror Splitting and recombining.
| Depth | 241.3 mm |
| Height | 57.2 mm |
| Host interface | PCI Express x8 |
| Internal memory | 512 MB |
| Internal memory type | DDR2 |
| Memory clock speed | 800 MHz |
| PCI Card form factor | half-height (low-profile) |
| RAID levels | 0, 1, 5, 10, 50, 1+0, 5+0 |
| Source data-sheet | Icecat.biz |
| Supported hard disk drive interfaces | SAS, Serial ATA |
| Weight | 1.08 kg |
| Width | 190.5 mm |
Specific References
- EAN13
- 0884962256107
Hewlett Packard Enterprise P410
PCI Express x8, 512 MB DDR2, 2xSAS
£573.48
£477.90 Ex. VAT
PCI Express x8, 512 MB DDR2, 2xSAS
