These Gigabit Ethernet switches deliver outstanding security, reliability, and multi-service support capabilities for robust switching.
- High expandability for investment protection.
- Premium security and integrated management.
- Multilayer reliability.
- Convergence-ready support.
- Outstanding quality of service (QoS).
- High expandability for investment protection.
- Premium security and integrated management.
- Multilayer reliability.
- Convergence-ready support.
- Outstanding quality of service (QoS).
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Colour of product | Black |
| Combo SFP ports quantity | 4 |
| Connectivity technology | Wired |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-T,100BASE-TX |
| Dimensions (WxDxH) | 420 x 440 x 43.6 mm |
| Ethernet LAN (RJ-45) ports quantity | 24 |
| Flash memory | 32 MB |
| Form factor | 1U |
| Full duplex | Yes |
| Input voltage | 100 - 240 V |
| Internal memory | 256 MB |
| Latency | 2.6/3.2µs |
| Management platform | IMC |
| Management protocols | SNMP |
| Maximum data transfer rate | 1 Gbit/s |
| Memory type | Flash |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating relative humidity range | 5 - 95 % |
| Operating temperature (T-T) | 32 - 113 °F |
| Operating temperature range (T-T) | 0 - 45 °C |
| Packet buffer memory | 2 MB |
| Power consumption (typical) | 575 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) support | Yes |
| Power requirements | 52 - 55V DC |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Routing entries | 12000 |
| SFP/SFP+ slots quantity | 4 |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage relative humidity range | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switch type | Managed |
| Switching capacity | 144 Gbit/s |
| Throughput | 107200000pps Mpps |
| Web-based management | Yes |
| Weight | 6000 g |
| Wi-Fi | No |
| Wireless LAN connection | No |
Specific References
- EAN13
- 0886111500666

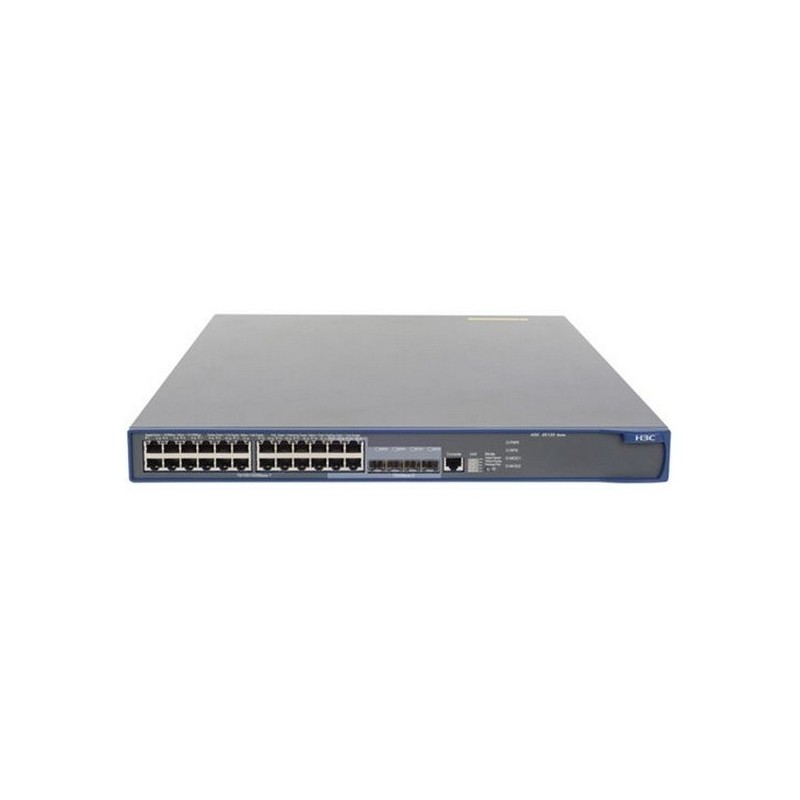

Hewlett Packard Enterprise 5500-24G-PoE+EI
Switch @ 2 Interface Slots, Duplex, 24x RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), 4x dual-personality ports, auto-sensing 10/100/1000Base-T or SFP; 2x port expansion module slots, 1x RJ-45 serial console port, Routing table size: 12000 entries, Routing/switching capacity: 144Gbps, Throughput: 107.2 million pps, 1000Mb Latency: < 3.2µs, 10Gbps Latency: < 2.6µs, 256MB SDRAM, packet buffer size: 2MB, 32MB flash
£4,293.56
£3,577.97 Ex. VAT
Switch @ 2 Interface Slots, Duplex, 24x RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), 4x dual-personality ports, auto-sensing 10/100/1000Base-T or SFP; 2x port expansion module slots, 1x RJ-45 serial console port, Routing table size: 12000 entries, Routing/switching capacity: 144Gbps, Throughput: 107.2 million pps, 1000Mb Latency: < 3.2µs, 10Gbps Latency: < 2.6µs, 256MB SDRAM, packet buffer size: 2MB, 32MB flash
