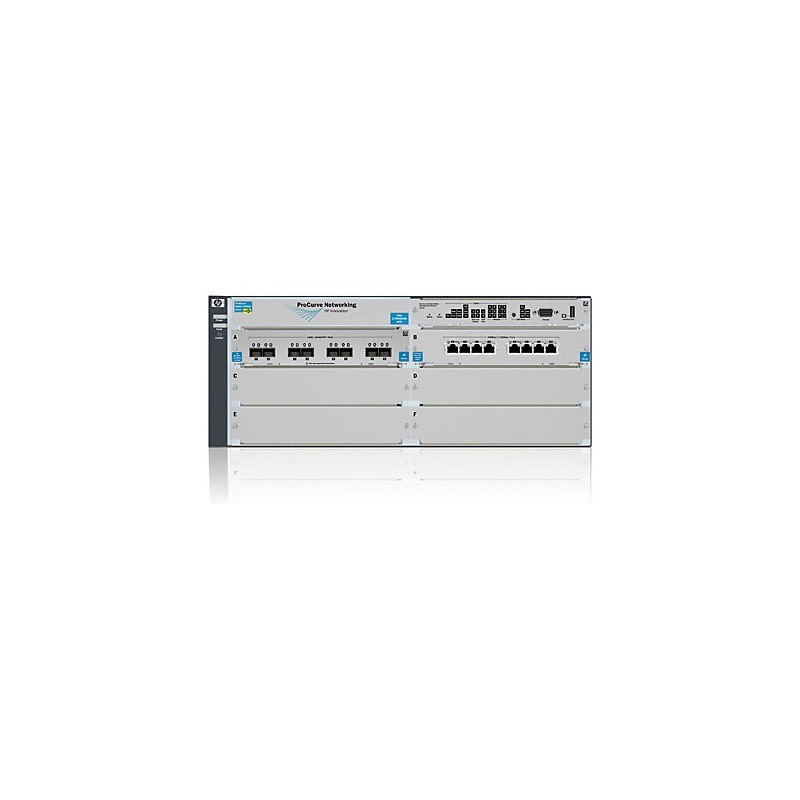

The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.
Software-defined networking
- OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
- Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
- Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
- High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
Software-defined networking
- OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
- Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
- Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
- High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
| AC input frequency | 50/60 Hz |
| Acoustic pressure emissions | Power: 57, Pressure: 40.2, ISO 7779, ISO 9296 dB |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Colour of product | Grey |
| Depth | 450.9 mm |
| Dimensions (WxDxH) | 444.5 x 450.9 x 175.3 mm |
| Electromagnetic compatibility | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A |
| Electromagnetic immunity | EN 55024, CISPR 24; IEC 61000-4-2; 4 kV CD, 8 kV AD; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reduction, 0.5 |
| Form factor | 4U |
| Heat dissipation | 2450 BTU/h |
| Heat dissipation note | (max. non-PoE); 3700 BTU/hr (3903 kJ/hr) (max. using PoE) |
| Height | 175.3 mm |
| I/O ports | 8 RJ-45 10GbE ports (IEEE 802.3an-2006 Type 10GBASE-T); 8 open 10GbE SFP+ transceiver slots; 4 open module slots; Supports a maximum of 32 10GbE ports or 96 autosensing 10/100/1000 ports or 96 mini-GBICs, or a combination |
| Input frequency | 50 - 60 Hz |
| Input voltage | 110-127/200-240 VAC |
| Latency | 1000 Mb Latency: < 3.7 µs (FIFO 64-byte packets); 10 Gb/s Latency: < 2.1 µs (FIFO 64-byte packets) |
| Latency (1 Gbps) | 3.7 µs |
| Latency (10 Gbps) | 2.1 µs |
| MAC address table | 64000 entries |
| Management platform | HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C) |
| Memory and processor | 10G module: ARM9 @ 200 MHz, packet buffer size: 36 Mb QDR SDRAM; Management module: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM |
| Mounting | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only |
| Multicast support | Yes |
| Networking standards | EN: EN55024, CISPR 24; ESD: IEC 61000-4-2; 4 kV CD, 8 kV AD; Radiated: IEC 61000-4-3; 3V/m; EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); Surge: IEC 61000-4-5; 1 kV/2 kV AC; Conducted: IEC 61000-4-6; 3V; Power frequency magnetic fie |
| Operating altitude | 3 km |
| Operating relative humidity range | 15 to 95 @ 131°F |
| Operating temperature range (T-T) | 0 - 55 °C |
| Power consumption (typical) | 215 W |
| Power requirements | One J9306A product is installed. One open power supply slot is available; three different power supplies are available. See power supply products for additional specifications.; Heat dissipation does not include heat dissipated by the PoE-powered devices |
| Power supply included | Yes |
| Power supply type | 1 x J9306A |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Safety | CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950 |
| Storage relative humidity range | 15 to 95 @ 149°F |
| Storage temperature range (T-T) | -40 - 70 °C |
| Supported network protocols | RFC 1591 DNS (client); HTML and telnet management; IEEE 802.1ad Q-in-Q (Premium License); IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802 |
| Switch type | Managed |
| Switching capacity | 379.2 Gbit/s |
| Throughput | 282.1 Mpps |
| Web-based management | Yes |
| Weight | 20900 g |
| Width | 444.5 mm |
| SFP+ module slots quantity | 8 |
