The HP 3800 Switch Series is a family of fully managed Gigabit Ethernet switches. There are a total of nine switch models—a 24-port switch, a 48-port switch, a 24-port PoE+ switch, a 48-port PoE+ switch
with either SFP+ or 10GBASE-T uplinks, and a 24-portSFP switch with 2 SFP+ uplinks. HP 3800 Series Switches utilize the latest HP ProVision ASIC technology and combine the latest advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry.
The 3800 series implements meshed stacking technology to deliver chassis-like resiliency in a flexible stackable form factor.
with either SFP+ or 10GBASE-T uplinks, and a 24-portSFP switch with 2 SFP+ uplinks. HP 3800 Series Switches utilize the latest HP ProVision ASIC technology and combine the latest advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry.
The 3800 series implements meshed stacking technology to deliver chassis-like resiliency in a flexible stackable form factor.
| 10G support | Yes |
| Access Control List (ACL) | Yes |
| Authentication method | IEEE 802.1X, RADIUS, MAC |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Built-in processor | HP ProVision ASIC/ARM 350 Mhz & Freescale PowerPC 1200 MHz |
| Certification | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A 80 PLUS GOLD EN 55024, CISPR 24, IEC 61000-4-2/3/4/5/6/8/11, IEC 61000-3-2/3, EN 61000-3-2/3 |
| Colour of product | Grey |
| Connectivity technology | Wired |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
| DHCP client | Yes |
| DHCP server | Yes |
| Diagnostics | LLDP |
| Dimensions (WxDxH) | 467.4 x 442.7 x 43.2 mm |
| Ethernet LAN (RJ-45) ports quantity | 24 |
| ExpressCard slot | No |
| Firmware upgradeable | Yes |
| Flash memory | 4096 MB |
| Form factor | 19" |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Heat dissipation | 434 BTU/h |
| IGMP snooping | Yes |
| Input current | 6 - 3 A |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Installed ports | 26 |
| Internal memory | 2048 MB |
| IP routing | Yes |
| Jumbo frames support | Yes |
| Latency | 1.9µs |
| Link aggregation | Yes |
| MAC address table | 65500 entries |
| Management platform | SNMP, Telnet, Web |
| Management protocols | SNMP v3 |
| Maximum data transfer rate | 10000 Gbit/s |
| Memory type | SDRAM |
| MIB support | Yes |
| Mounting | 1U |
| Multicast support | Yes |
| Networking features | Gigabit Ethernet, 10G Ethernet |
| Networking standards | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u |
| Noise level | 36 dB |
| Number of power supply units | 1 |
| Number of trunks | 24 |
| Number of VLANs | 2048 |
| Packet buffer memory | 18 MB |
| Port mirroring | Yes |
| Ports quantity | 26 |
| Power consumption (typical) | 127 W |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) support | No |
| Power supply | 400 W |
| Power supply type | HP X311 |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Redundant power supply (RPS) support | Yes |
| Remote administration | CLI (Console/Telnet/SSH) |
| Routing entries | 10000 |
| Safety | EN 60950/IEC 60950, UL 60950, CAN/CSA 22.2 No. 60950, EN 60825 |
| Security algorithms | 802.1x RADIUS,SSH,SSL/TLS |
| Security algorithms supported | 802.1x RADIUS, SSH, SSL/TLS |
| Security features | CLI, GUI, MIB |
| SFP/SFP+ slots quantity | 2 |
| Source data-sheet | Icecat.biz |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Stackable | Yes |
| Static port security | Yes |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 88 Gbit/s |
| Throughput | 65400000 pps Mpps |
| Web-based management | Yes |
| Weight | 6920 g |
| Wi-Fi | No |
| Wireless LAN connection | No |
| SFP+ module slots quantity | 2 |
Specific References
- EAN13
- 0886112028244

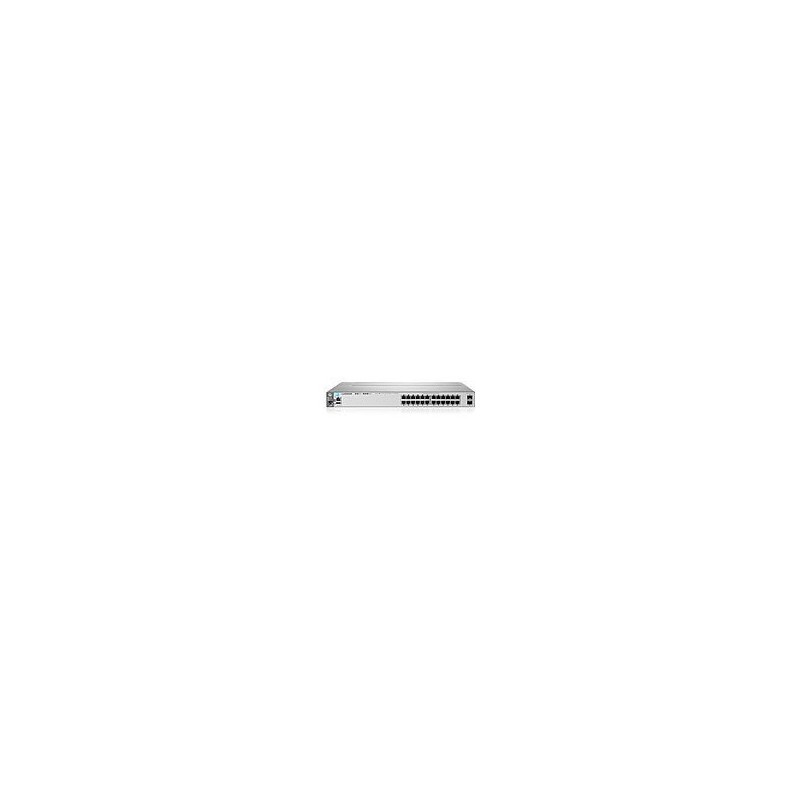

Hewlett Packard Enterprise 3800-24G-2SFP+
Managed, 24 x RJ-45, 10/100/1000 Mbps, 2 x SFP+ 1000/10000 Mbps, 1 x RJ-45 Console, HP ProVision ASIC/ARM 350 MHz, Freescale PowerPC 1200 MHz, 4GB Flash, Buffer 18 MB, 2GB SDRAM, RADIUS/TACACS+, SSHv2, SSL, 48.26 cm (19 ") , 127W, 6920g
£3,870.53
£3,225.44 Ex. VAT
Managed, 24 x RJ-45, 10/100/1000 Mbps, 2 x SFP+ 1000/10000 Mbps, 1 x RJ-45 Console, HP ProVision ASIC/ARM 350 MHz, Freescale PowerPC 1200 MHz, 4GB Flash, Buffer 18 MB, 2GB SDRAM, RADIUS/TACACS+, SSHv2, SSL, 48.26 cm (19 ") , 127W, 6920g
