The HP 3600 EI Switch Series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Layer 3 Fast Ethernet and PoE/PoE+ switches, with advanced features that can accommodate the most demanding applications. Secure, resilient connectivity and the latest traffic-prioritization technologies enhance converged networks. Designed for increased flexibility and scalability, HP 3600 EI series switches come with 24 or 48 10/100 ports, four active SFP-based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP slots.
Quality of Service (QoS)
• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Management
• Friendly port names: allows assignment of descriptive names to ports
Connectivity
• IPv6: Telnet: for allowing CLI access via IPv6. SNMP: for IPv6 switch management. DNS: for IPv6 host management. DHCP: for auto IPv6 address configuration of a switch.
Performance
• Nonblocking performance: up to 17.6 Gbps nonblocking switching fabric provides wire-speed switching with up to 13.1 million pps throughput
Resiliency and high availability
• Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance
Manageability
• RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
Layer 2 switching
• 16/32K MAC address table: provides access to many Layer 2 devices
Quality of Service (QoS)
• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Management
• Friendly port names: allows assignment of descriptive names to ports
Connectivity
• IPv6: Telnet: for allowing CLI access via IPv6. SNMP: for IPv6 switch management. DNS: for IPv6 host management. DHCP: for auto IPv6 address configuration of a switch.
Performance
• Nonblocking performance: up to 17.6 Gbps nonblocking switching fabric provides wire-speed switching with up to 13.1 million pps throughput
Resiliency and high availability
• Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance
Manageability
• RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
Layer 2 switching
• 16/32K MAC address table: provides access to many Layer 2 devices
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Acoustic pressure emissions | 43.5 dB |
| Auto MDI/MDI-X | Yes |
| Colour of product | Black |
| Combo SFP ports quantity | 2 |
| Depth | 260.1 mm |
| DHCP client | Yes |
| DHCP server | Yes |
| Dimensions (WxDxH) | 439.9 x 260.1 x 43.7 mm |
| Electromagnetic compatibility | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Heat dissipation | 205 BTU/h |
| Height | 43.7 mm |
| I/O ports | 24 SFP 100 Mbps ports; 4 SFP 1000 Mbps ports; 2 dual-personality 1000 Mbps ports(IEEE 802.3ab Type 1000BASE-T), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 1 RJ-45 serial console port |
| IGMP snooping | Yes |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100-240 VAC; -48 to -60 VDC (depending on power supply chosen) |
| Latency | 100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs |
| Latency (1 Gbps) | 5 µs |
| Latency (10-100 Mbps) | 6 µs |
| Link aggregation | Yes |
| MAC address table | 32000 entries |
| Management platform | IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager |
| Memory and processor | 256 MB SDRAM, packet buffer size: 2 MB, 128 MB flash |
| Mounting | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included) |
| Multicast support | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab |
| Operating temperature range (T-T) | 0 - 50 °C |
| Port mirroring | Yes |
| Power consumption (typical) | 60 W |
| Power over Ethernet (PoE) | No |
| Power supply included | Yes |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
| Size | 439.9 mm (17.32 ") |
| Spanning tree protocol | Yes |
| Stackable | Yes |
| Storage relative humidity range | 5 to 95 % |
| Storage temperature range (T-T) | -40 - 70 °C |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 12.8 Gbit/s |
| Throughput | 9.5 Mpps |
| Web-based management | Yes |
| Weight | 5000 g |
| Width | 439.9 mm |
| SFP module slots quantity | 28 |
Specific References
- EAN13
- 0886111894871
Hewlett Packard Enterprise 3600-24-SFP v2 EI

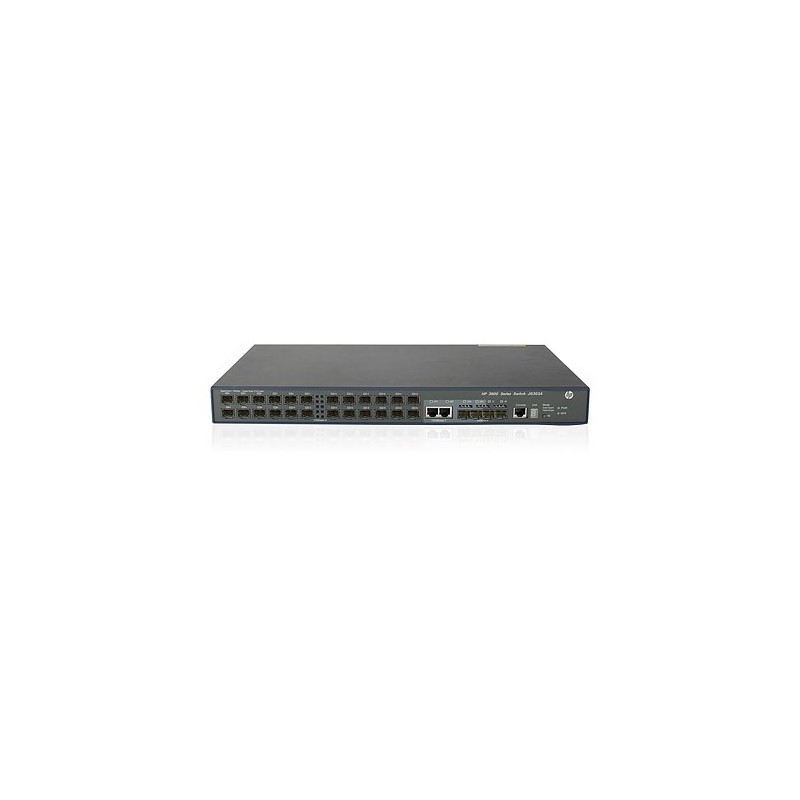

HP 3600-24-SFP v2 EI Switch
£2,296.53
£1,913.77 Ex. VAT
HP 3600-24-SFP v2 EI Switch
